Duplex with 2 Bedrooms, 1897 Sq Ft Per Unit Home

Front elevation of Duplex country home (ThePlanCollection: House Plan #153-1013)
Duplex - 2-Bedroom, 1897 Sq Ft Country House Plan - 153-1013 - Front Exterior

About Plan # 153-1013

About Plan # 153-1013

1897 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 85' 0" WIDTH 60' 0" DEPTH 2 GARAGE BAY

This home plan is perfect for a multi-family setting. The duplex mirrors itself and features a master suite with a private bath and walk-in closet. A single secondary bedroom sits upstairs next to two optional areas perfect for a few more bedrooms, play area, home office, library, or just for storage. The kitchen and breakfast area is functional and could be opened up with the right professionals. The great room enjoys a raised ceiling and is open to the dining area. This home really brings luxury into multi-unit living.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

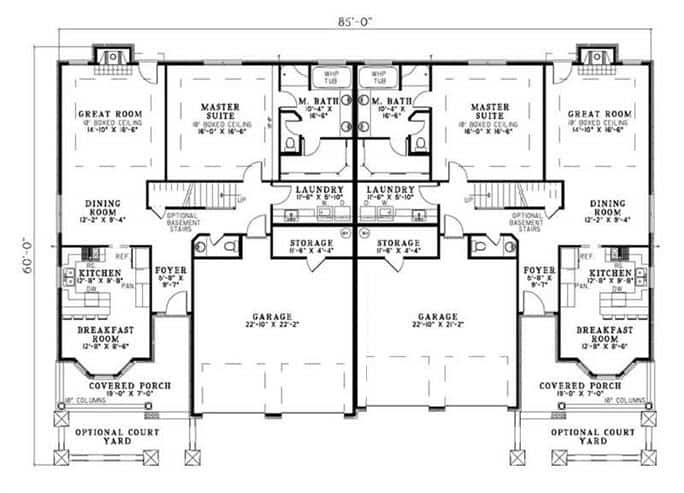

Home Plan: #153-1013 Floor Plan First Story - first story Floor Plan First Story of Country Plan #153-1013

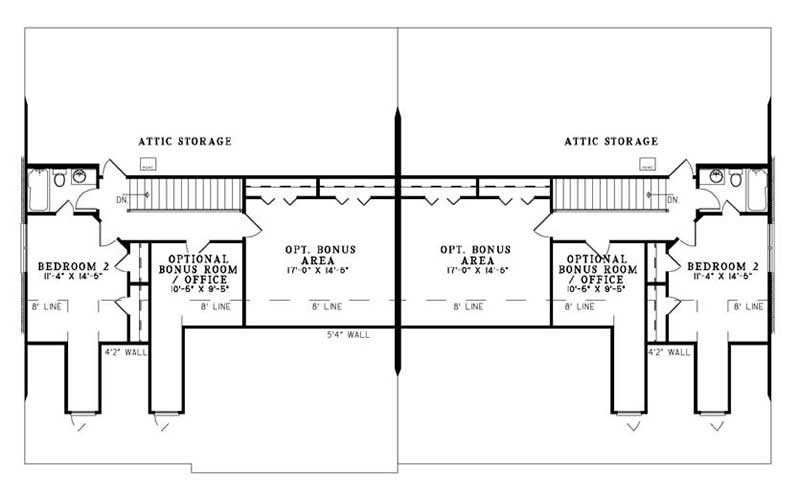

#153-1013 Floor Plan Second Story - second story Duplex Floor Plan Second Story of Country Plan #153-1013
