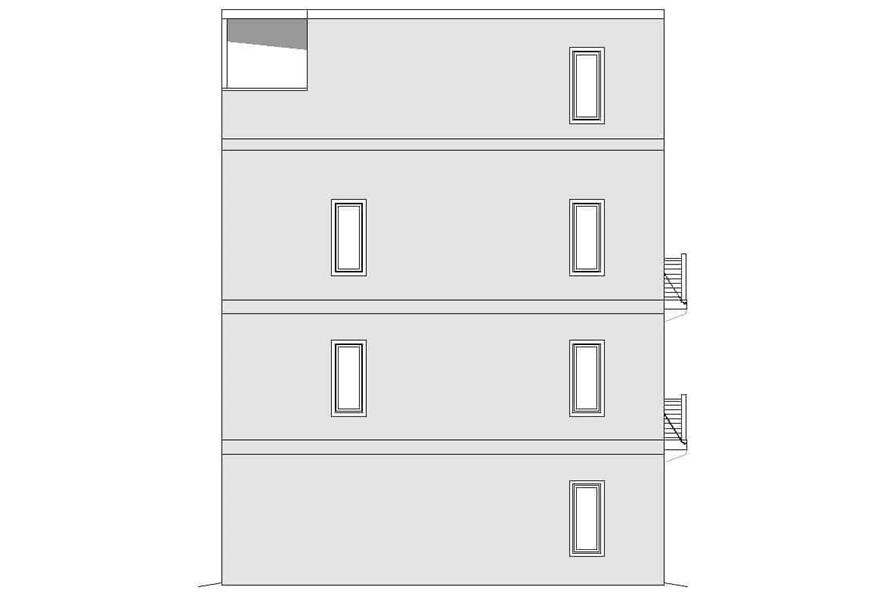

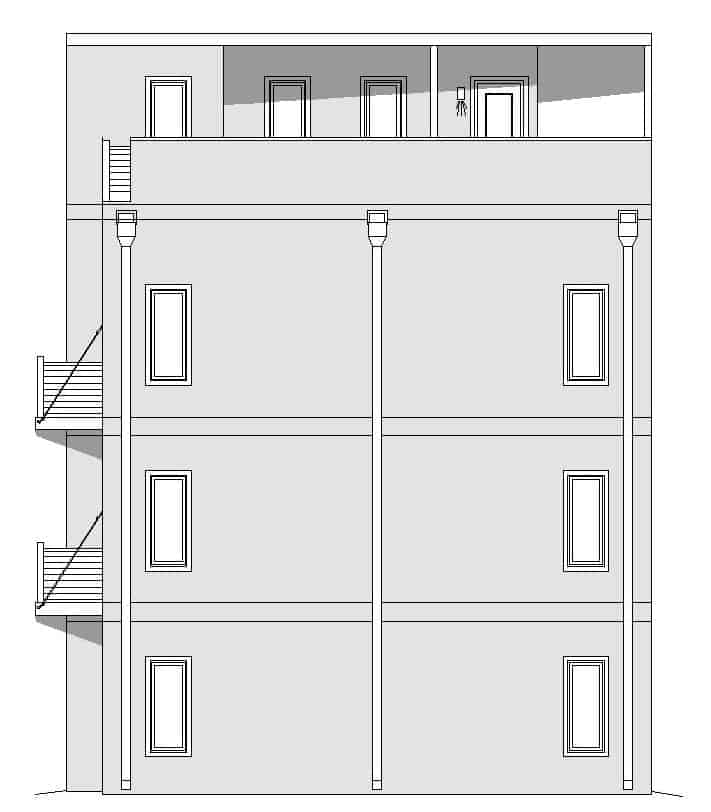

196-1177: Home Plan Rear Elevation

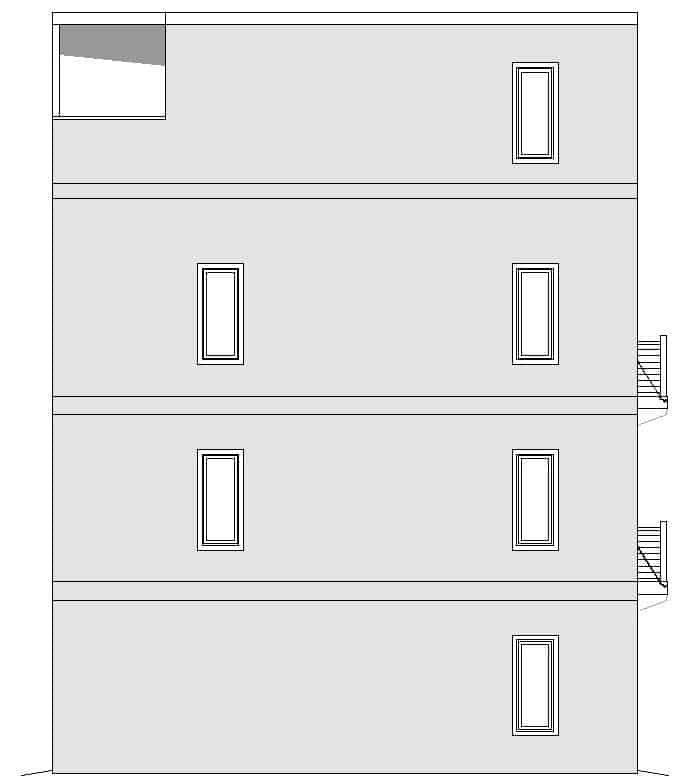

196-1177: Home Plan Left Elevation

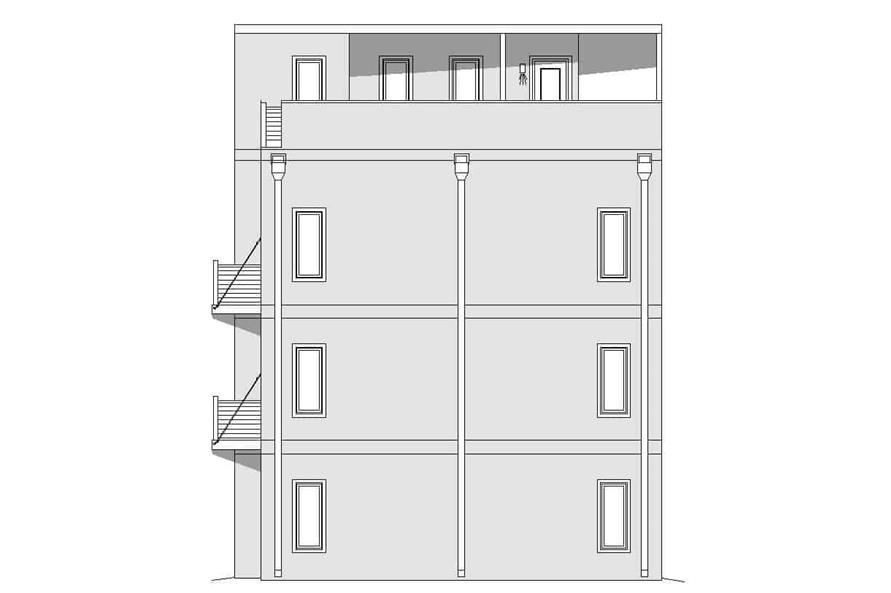

196-1177: Home Plan Right Elevation

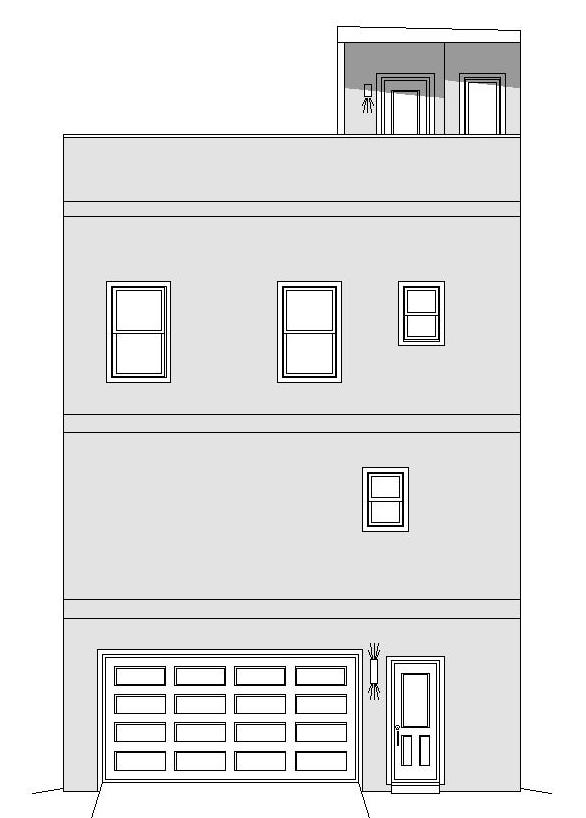

196-1177: Home Plan Front Elevation
2-Bedroom, 1588 Sq Ft Modern Home Plan - 196-1177 - Main Exterior
196-1177: Home Plan Rear Elevation
196-1177: Home Plan Left Elevation
196-1177: Home Plan Right Elevation

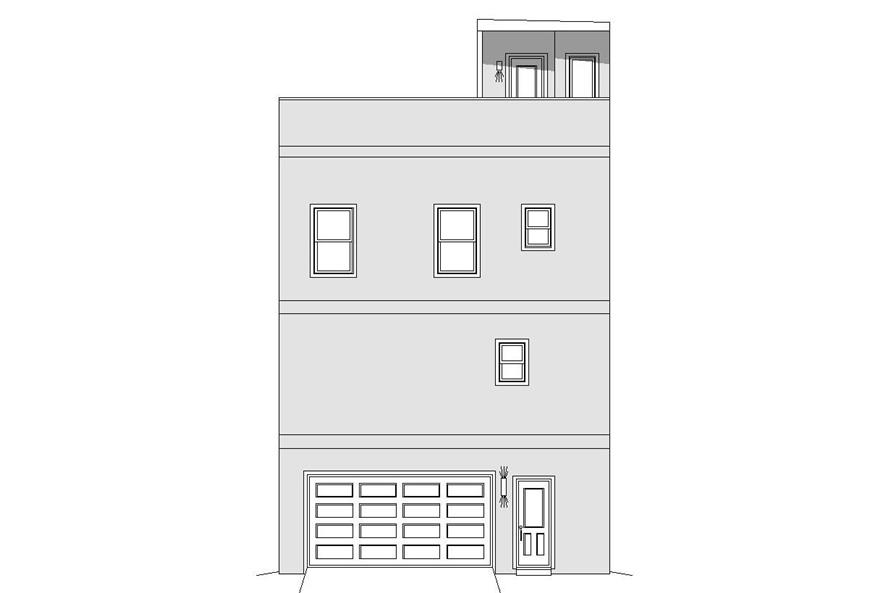

196-1177: Home Plan Front Elevation

About Plan # 196-1177

About Plan # 196-1177

1588 SQUARE FEET 2 BEDROOMS 2 FULL BATH 1 HALF BATH
3 FLOOR 25' 0" WIDTH 32' 0" DEPTH 2 GARAGE BAY

      This is a 3 story Modern building with mezzanine level and a functional roof deck level. It has  1,588 square feet total heated area that utilized and maximized every available space of the property. A balcony is provided for the most important space in the house for the enjoyment of the surrounding neighborhood.

Each plan set includes the following:

a) Floor Plans: Floor plan drawings indicating dimensions for construction
b) Roof Plan: Drawings indicating roof slopes and unique conditions
c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
d) Building Sections: Drawings cut through important locations in the structure
e) Construction Details: Drawings showing specific construction of building elements at a large scale
f) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches, and outlets)
g) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
h) A building license: A single-use license for construction at one location only

Additional notes about engineering and building codes:

Our plans are designed to meet national building codes. We do not guarantee they will meet all local building requirements or building codes influenced by local geographic or climatic factors. It is the responsibility of the owner or builder to ensure these plans comply with city, county, municipal, and/or state/provincial building codes. Additionally, your plans will not be sealed or stamped by an engineer or architect. It is the owner’s (or builder’s) responsibility to hire a local professional to review and seal or stamp the plans if required by the building department. This must be handled by an engineer or architect licensed in the state/province where the plan is to be built.






Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

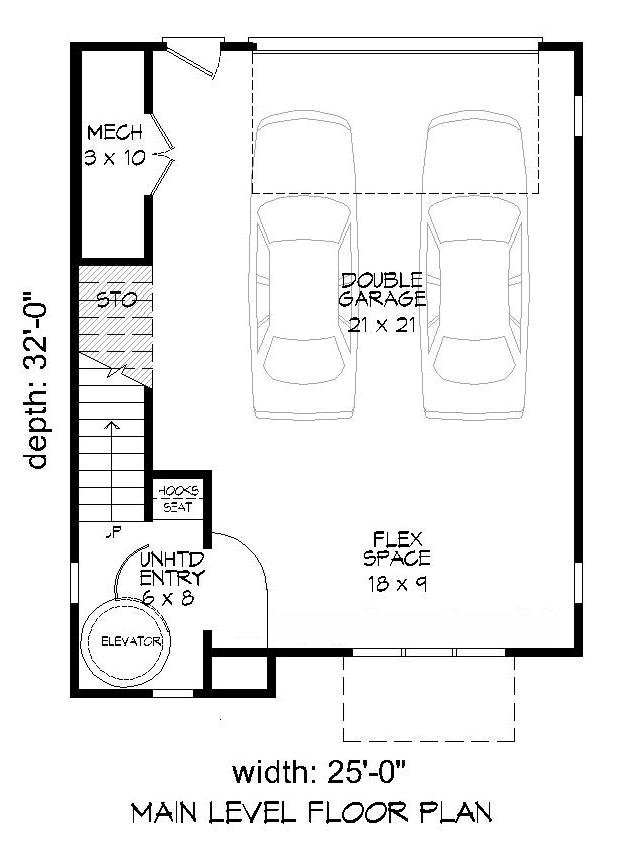

Home Plan: #196-1177 Floor Plan First Story - main level Floor Plan Main Level of Modern Plan #196-1177

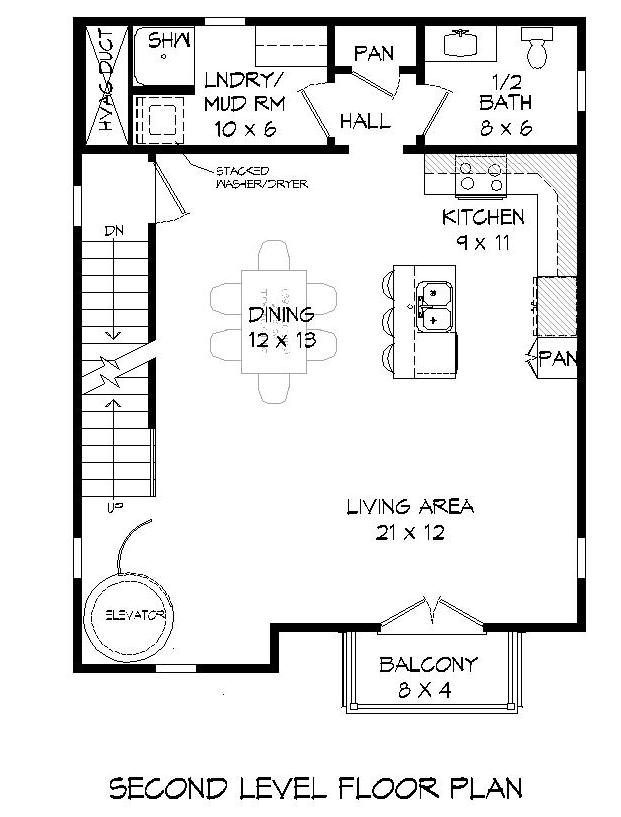

#196-1177 Floor Plan Second Story - upper level Floor Plan Upper Level of Modern Plan #196-1177

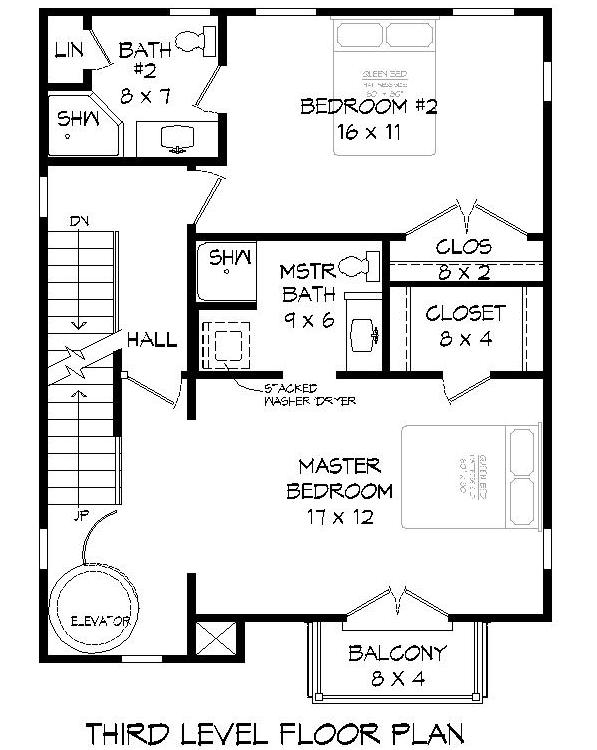

#196-1177 Floor Plan Third Story - third story Floor Plan Third Story of Modern Plan #196-1177

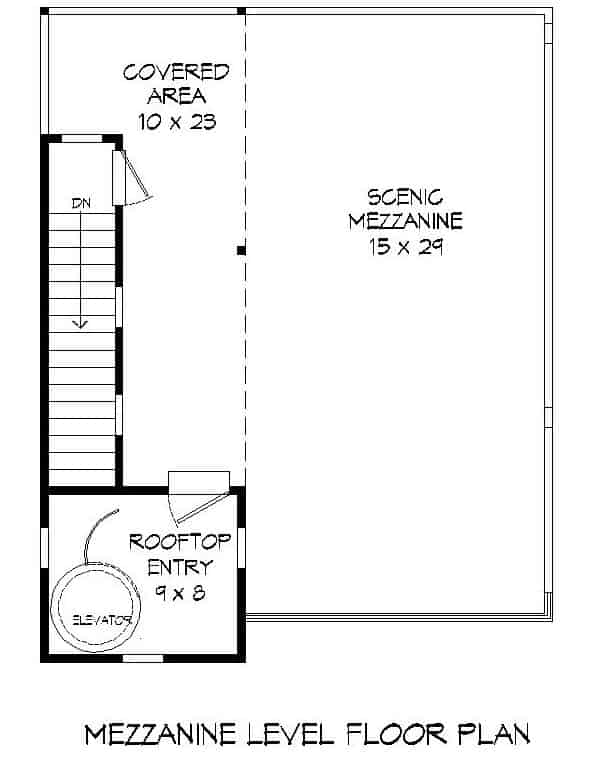

#196-1177 Floor Plan Fourth Story - fourth story Floor Plan Fourth Story of Modern Plan #196-1177
