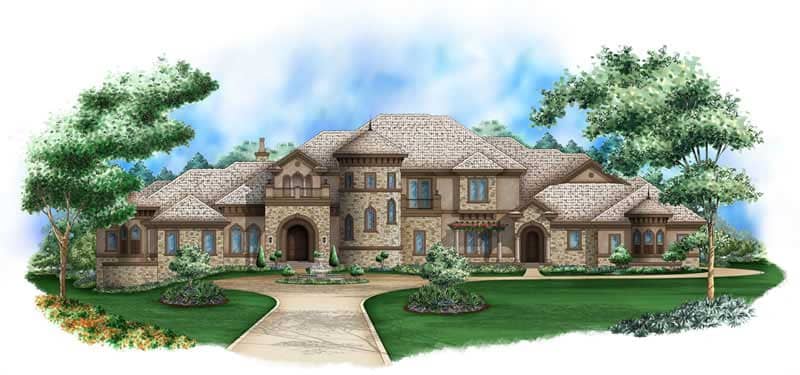

Front elevation of Tuscan home (ThePlanCollection: House Plan #175-1039)
5-Bedroom, 15036 Sq Ft Tuscan House Plan - 175-1039 - Front Exterior

About Plan # 175-1039

About Plan # 175-1039

15036 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 164' 4" WIDTH 74' 10" DEPTH 3 GARAGE BAY

Where do you start describing an estate home plan like this??? This Tuscan floor plan spans 164 feet wide; encompassing a truly magnificent floor plan! Starting with its impressive elevation; cast with a combination of stone & stucco greeting you as you enter this Tuscan beauty. To the left a massive master suite awaits with two wet bars, a dressing area, his & hers baths adjoined with a radial shower. The main living portion invites family and friends alike to relax and enjoy the abundance of space and intricate details. Upstairs of this Tuscan Home Plan you will find three additional bedrooms and baths, a separate utility room and sun deck for relaxing. With plenty of room to roam, yet still cozy for intimate affairs, this Tuscany Isle house plan is sure to impress!

Each plan set includes the following:

  • Elevations
  • Floor Plans
  • Building Section Markers
  • Electrical Layout
  • Slab Plan
  • Roof Plan
  • Building Sections
  • Typical Wall Sections
  • Miscellaneous Notes & Details



Not Included with the Plan:

  • NO MEPs, NO Framing,
  • No Trusses: The client gets that from the truss manufacturer
  • No Engineering, You will need to get the plans stamped and engineered locally
  • HVAC and Plumbing is not included




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

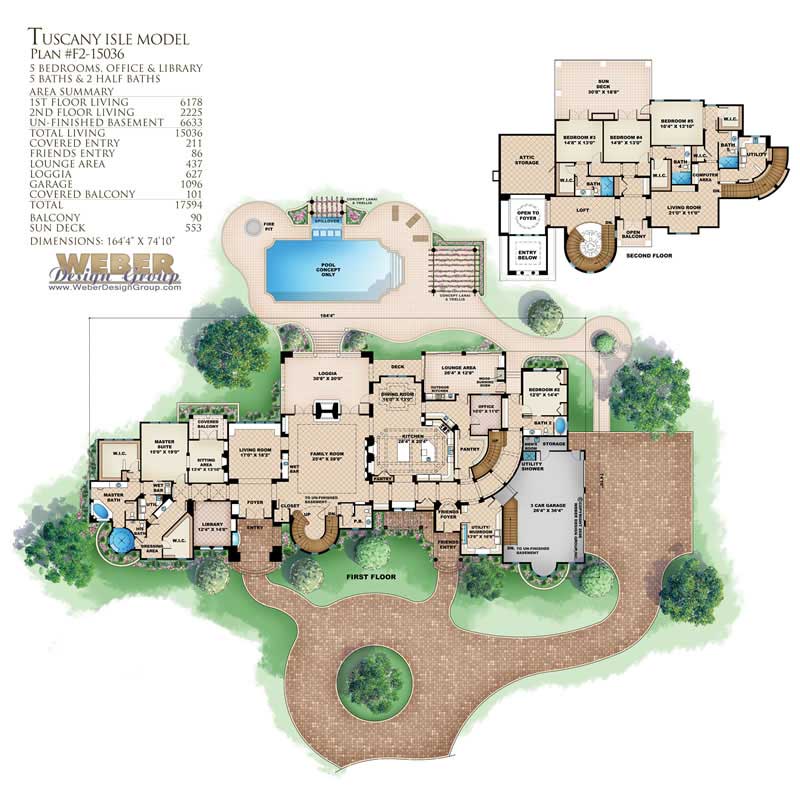

Home Plan: #175-1039 Floor Plan First Story - first story Floor Plan First Story of Tuscan Plan #175-1039
Home Plan: #175-1039 Floor Plan First Story - first story Floor Plan First Story of Tuscan Plan #175-1039
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1039
Floors:
2
Bedrooms:
5
Full Baths:
5
Half Baths:
1

Square Footage

Heated Sq Feet:
15036
Main Floor:
6178
Upper Floor:
2225
Unfinished Sq Ft:
Lower Floor:
6633
Garage :
1096

Dimensions

Width:
164' 4"
Depth:
74' 10"

Architectural Styles

Luxury
Tuscan

Exterior Wall Material

Stucco
Rock/Stone

Roofing Type

Hip

Roofing Material

Tiles

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions and a 5-7 day processing time for their CAD and PDF orders. Please contact us to verify your zip code BEFORE you order!! 2x6 and Right-Reading Reverse options are available. PLEASE NOTE: The designer is currently not providing modifications. We suggest you purchase a CAD file and work with a local engineer for changes. Additionally, orders (including electronic formats) could take up to 5 days to be delivered or shipped. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
