1-Bedroom, 1194 Sq Ft Ranch Plan with Den

Ranch style house (ThePlanCollection: Plan #196-1233)

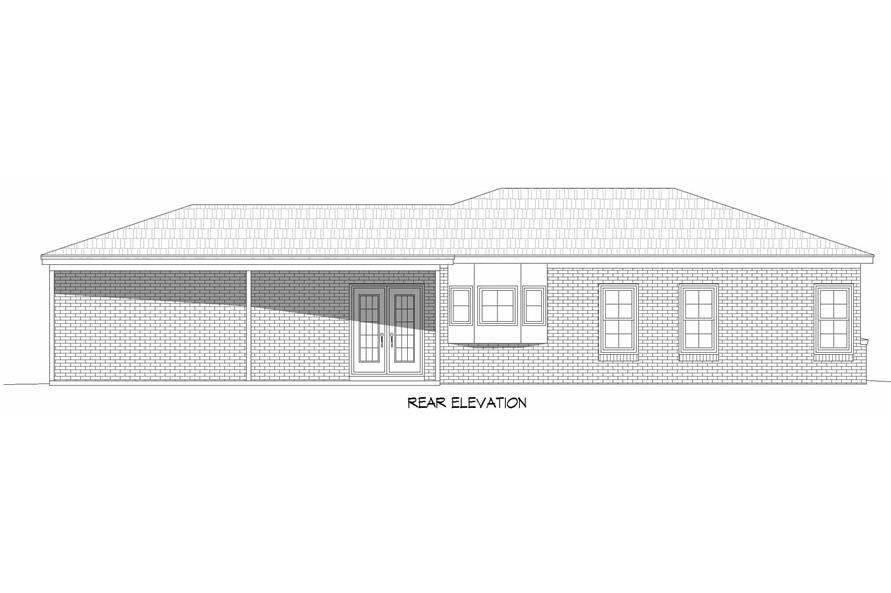

196-1233: Home Plan Rear Elevation

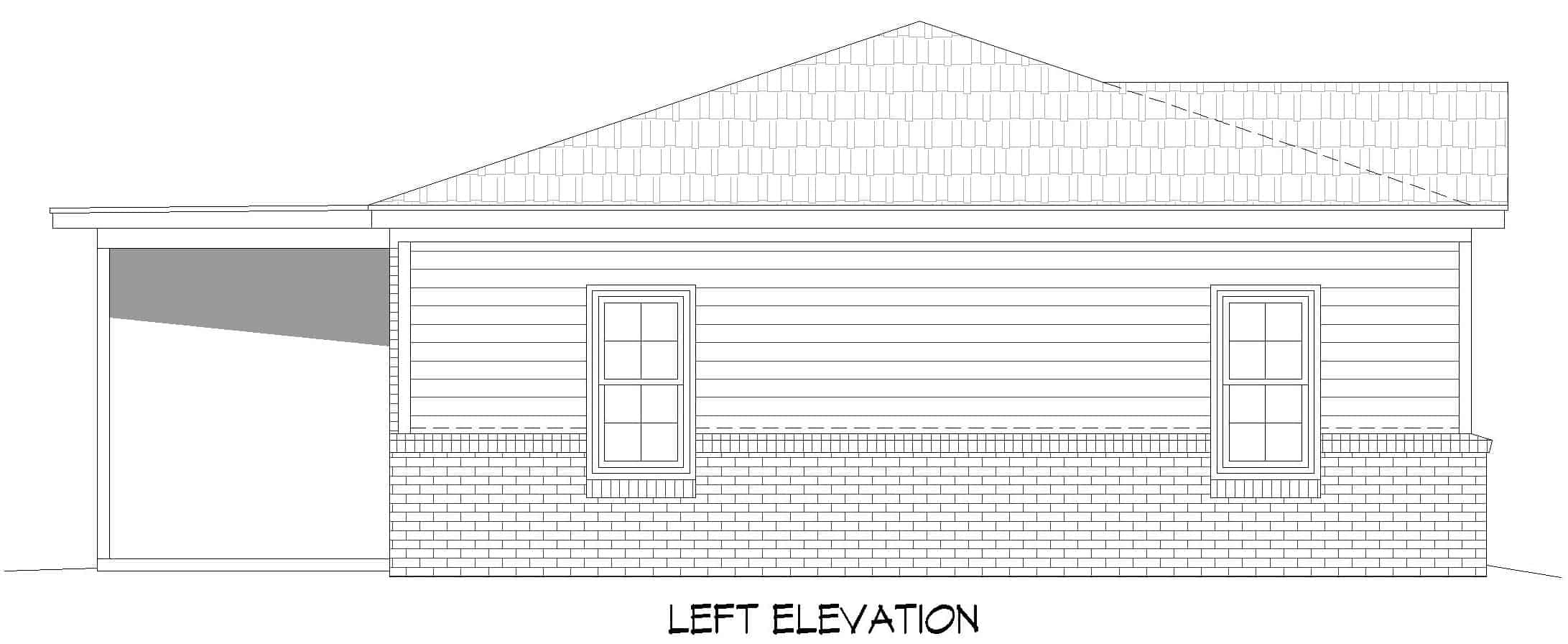

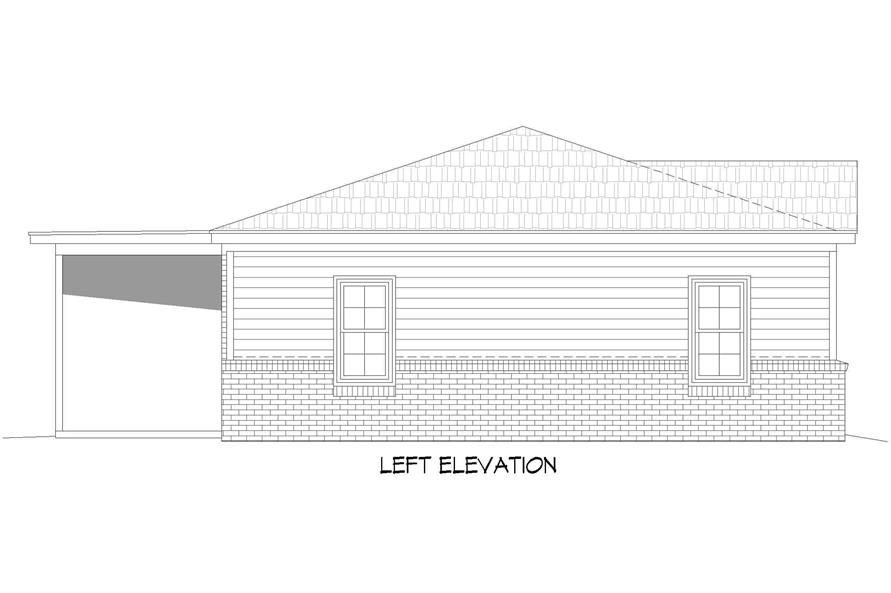

196-1233: Home Plan Left Elevation

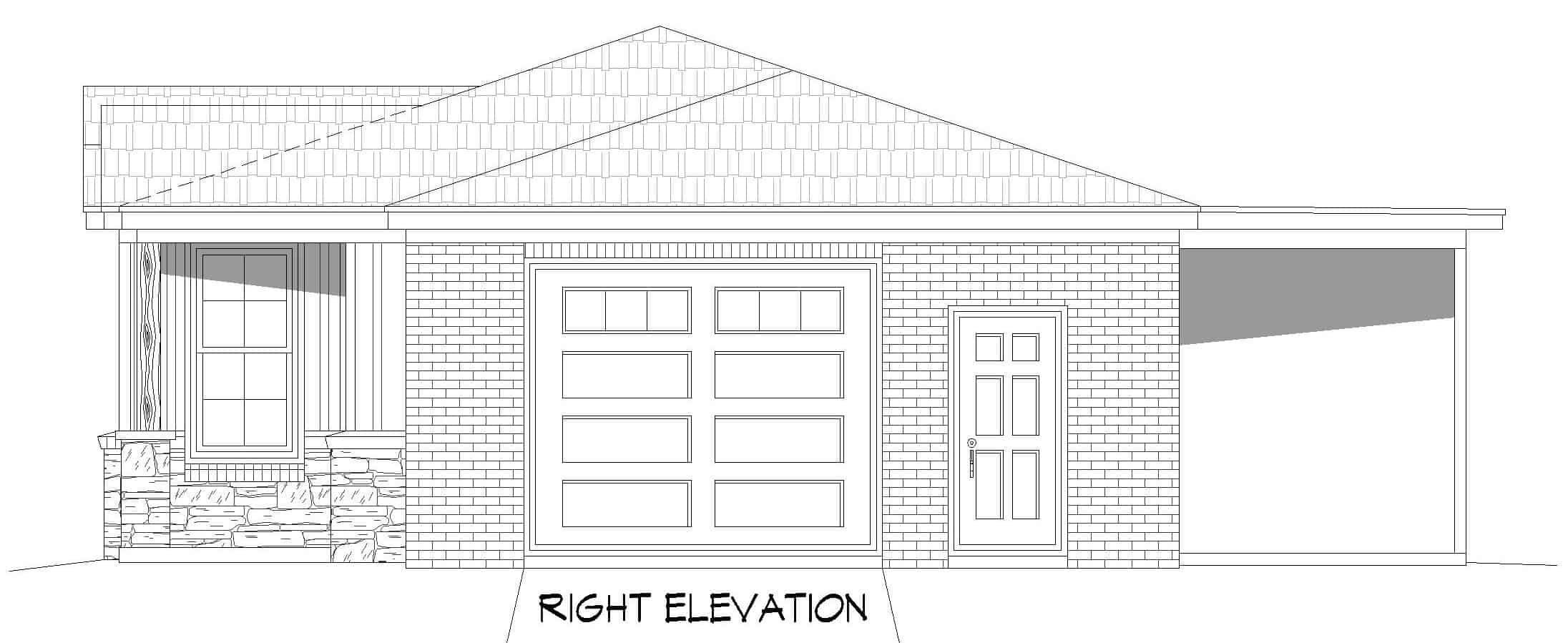

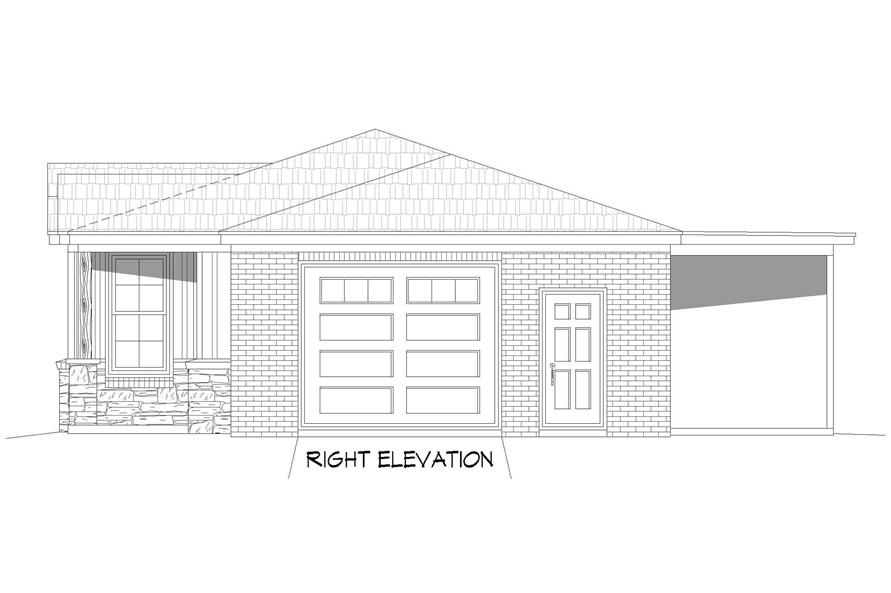

196-1233: Home Plan Right Elevation

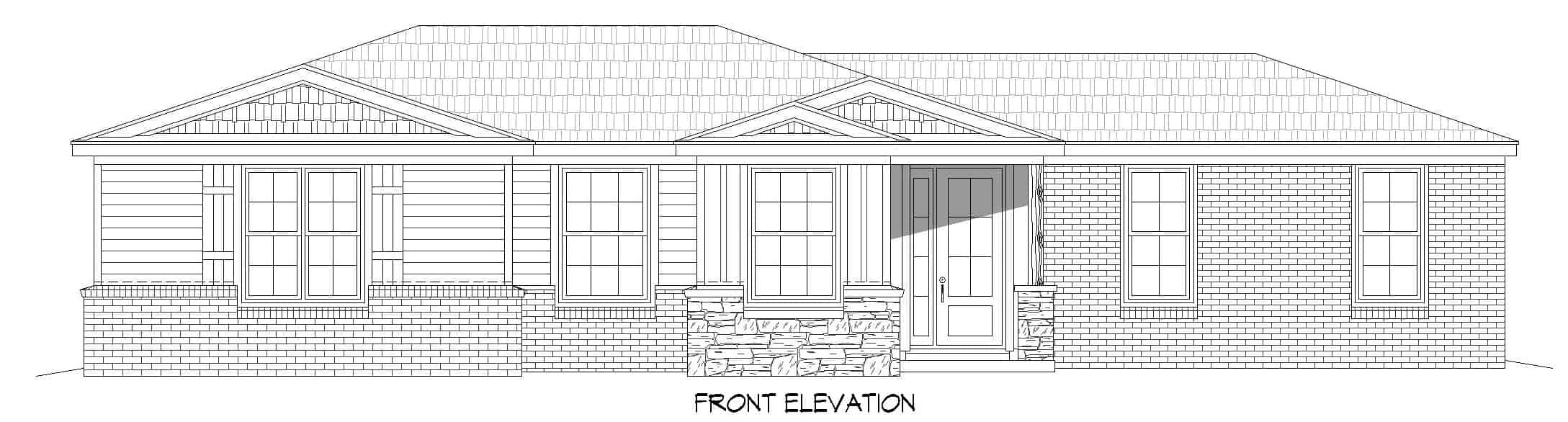

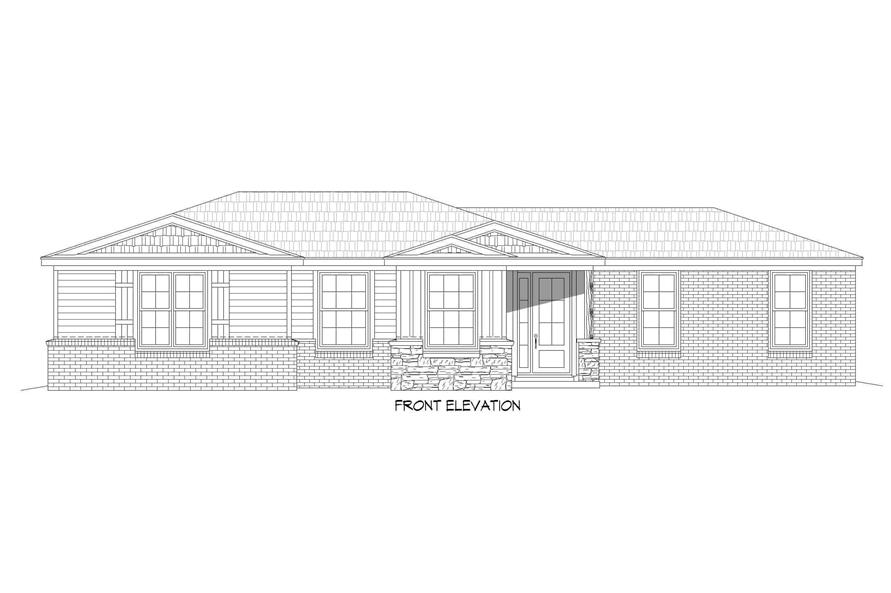

196-1233: Home Plan Front Elevation
1-Bedroom, 1194 Sq Ft Ranch House - Plan #196-1233 - Front Exterior
196-1233: Home Plan Rear Elevation
196-1233: Home Plan Left Elevation
196-1233: Home Plan Right Elevation
196-1233: Home Plan Front Elevation

About Plan # 196-1233

About Plan # 196-1233

1194 SQUARE FEET 1 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 61' 7" WIDTH 30' 8" DEPTH 1 GARAGE BAY

Easy living and relaxing come naturally in this Country Ranch style home, which emanates a very cool and homey ambiance. It covers a total heated and cooled area of 1194 square feet. The house would be the perfect home for retirement downsizing, a vacation getaway, or a starter home – and there's plenty of storage/workshop space in the oversize two-car garage.

Each plan set includes the following:

a) Floor Plans: Floor plan drawings indicating dimensions for construction
b) Roof Plan: Drawings indicating roof slopes and unique conditions
c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
d) Building Sections: Drawings cut through important locations in the structure
e) Construction Details: Drawings showing specific construction of building elements at a large scale
f) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches, and outlets)
g) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
h) A building license: A single-use license for construction at one location only

Additional notes about engineering and building codes:

Our plans are designed to meet national building codes. We do not guarantee they will meet all local building requirements or building codes influenced by local geographic or climatic factors. It is the responsibility of the owner or builder to ensure these plans comply with city, county, municipal, and/or state/provincial building codes. Additionally, your plans will not be sealed or stamped by an engineer or architect. It is the owner’s (or builder’s) responsibility to hire a local professional to review and seal or stamp the plans if required by the building department. This must be handled by an engineer or architect licensed in the state/province where the plan is to be built.






Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

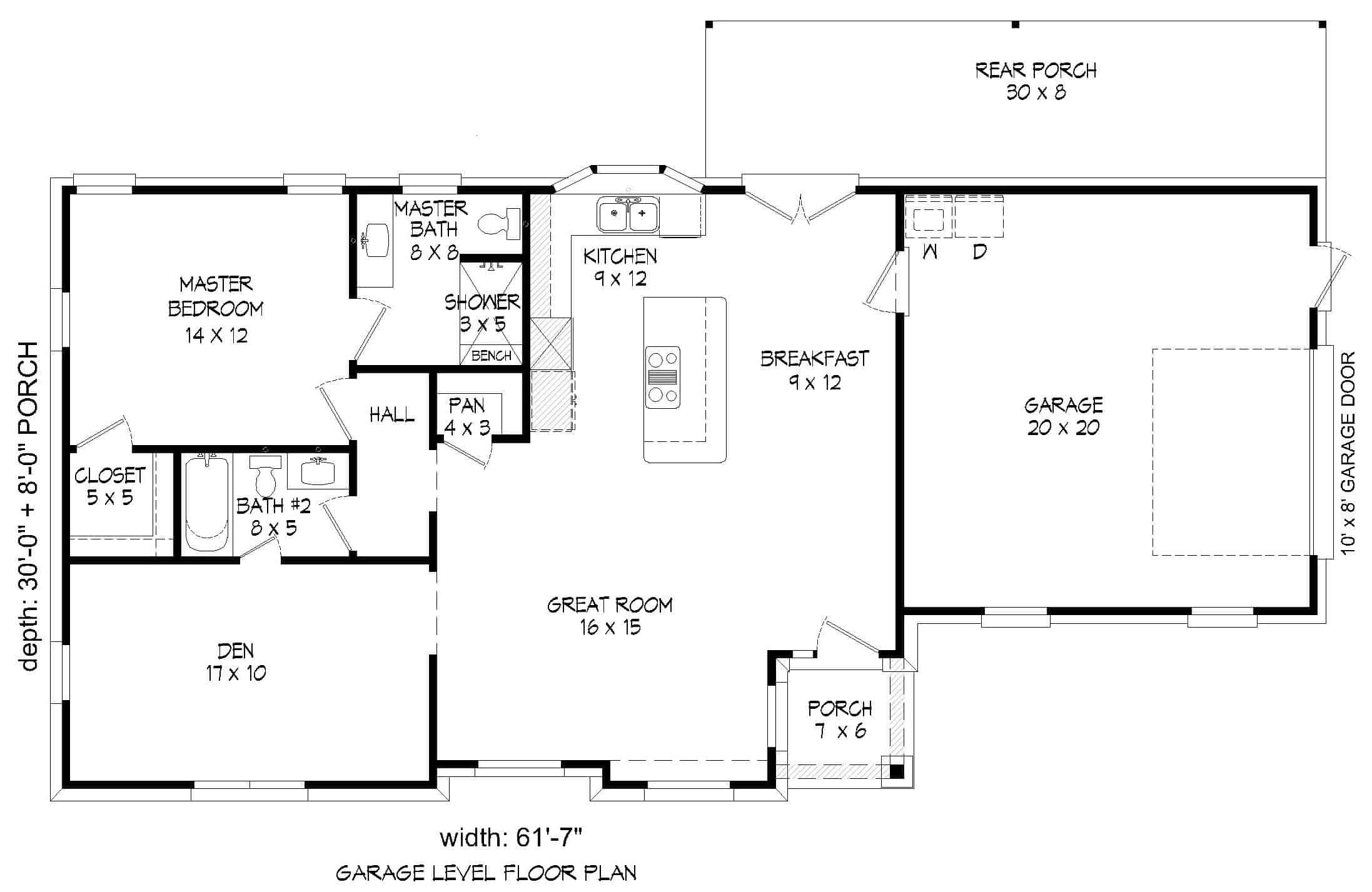

Home Plan: #196-1233 Floor Plan First Story - main level Main Level of Cottage Plan #196-1233
