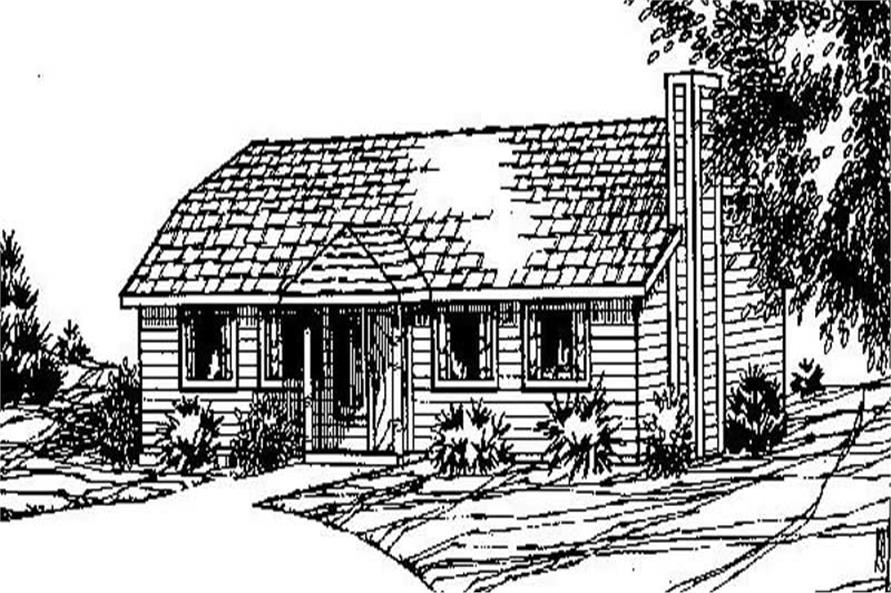

Front view of Ranch home (ThePlanCollection: House Plan #145-1697)
3-Bedroom, 1040 Sq Ft Ranch House Plan - 145-1697 - Front Exterior

About Plan # 145-1697

About Plan # 145-1697

1040 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 40' 0" WIDTH 26' 0" DEPTH 0 GARAGE BAY
This inviting ranch style home with a small footprint has 1040 square feet of living space. The one story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • Floor plans
  • Foundations
  • Elevations
  • Framing
  • Electrical
  • Roofing
  • Detailed Construction Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

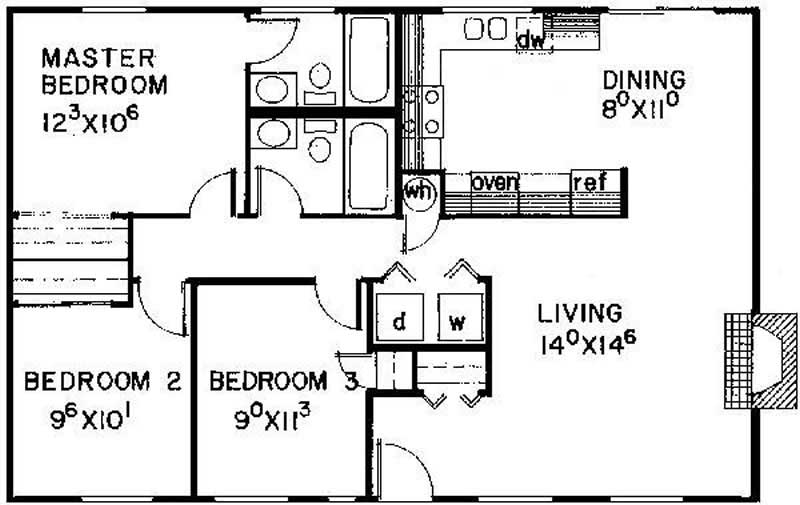

Home Plan: #145-1697 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #145-1697
