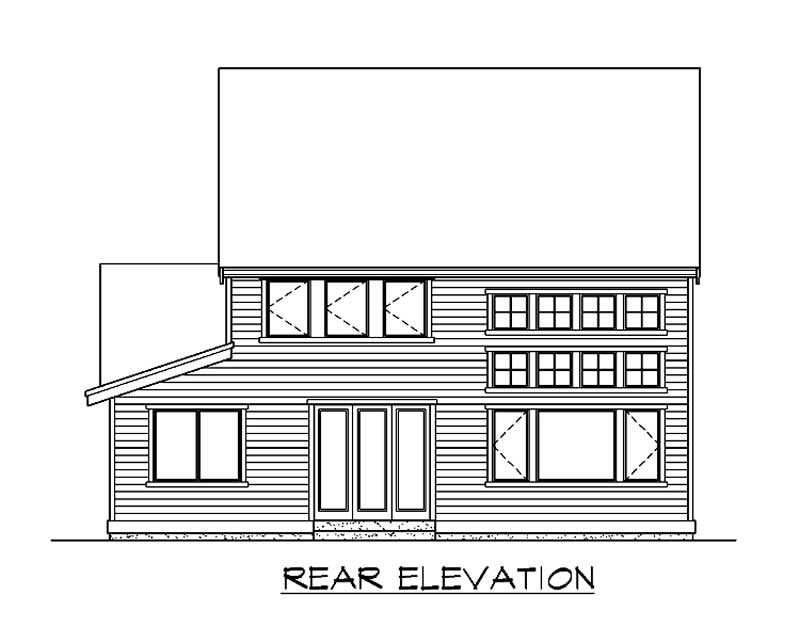

Rear Elevation
3-Bedroom, 2632 Sq Ft Tudor Home Plan - 115-1436 - Main Exterior
Rear Elevation

About Plan # 115-1436

About Plan # 115-1436

2632 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 40' 0" WIDTH 52' 0" DEPTH 3 GARAGE BAY
This beautiful and amazing houseplan has many great features to offer you. You have a nice and spacious kitchen with plenty of room for cooking. There is an island in the center of the kicthen for your convenience. In the family you have an enjoyable fireplace where you can cuddle up and read a good book by. You can entertain your guests in the living room with easy access to the dining room. On the main floor you have a convenitent powder room where your guests can freshen up in. There is a secluded den in the home where you can enjoy the quietness of the home. For related plans, please see: SPS 2520A & SPS 2520C.

Each plan set includes the following:

  • Cover Sheet
  • Schedule Sheet
  • Detail Sheet
  • Foundation Plan Sheet
  • Floor Plan/Floor Framing Sheet(s)
  • Roof Framing Plan Sheet
  • Elevation Sheet
  • Building Section Sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

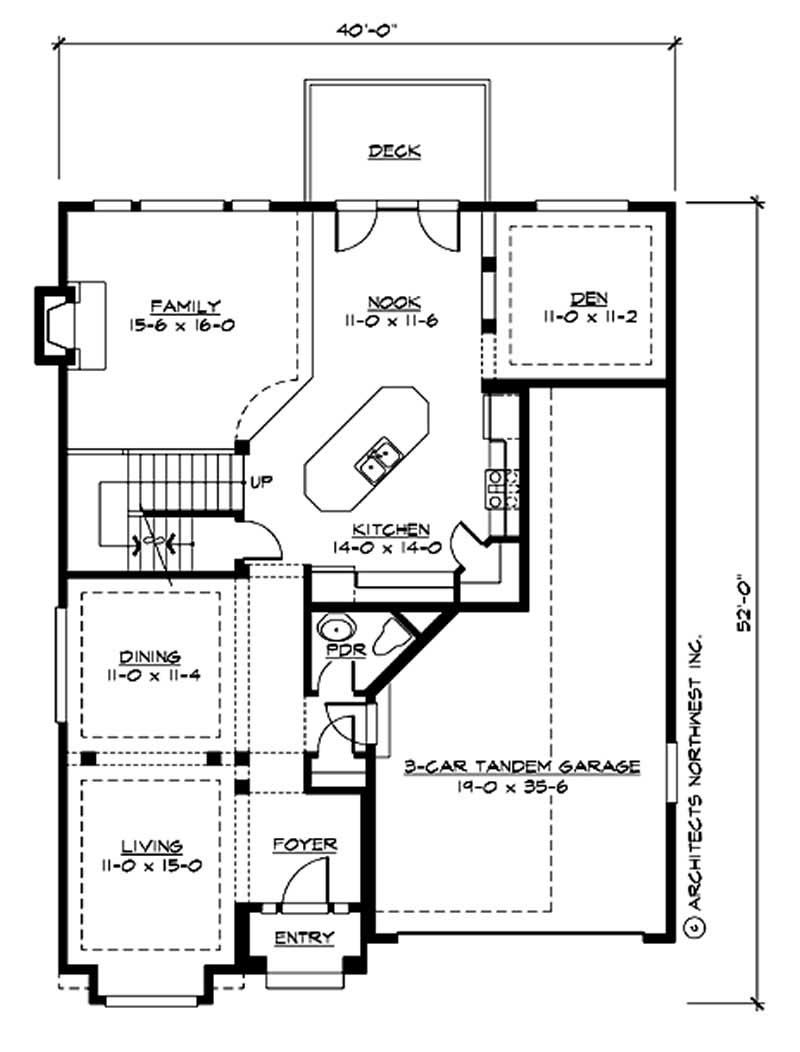

Home Plan: #115-1436 Floor Plan First Story - first story Floor Plan First Story of Tudor Plan #115-1436

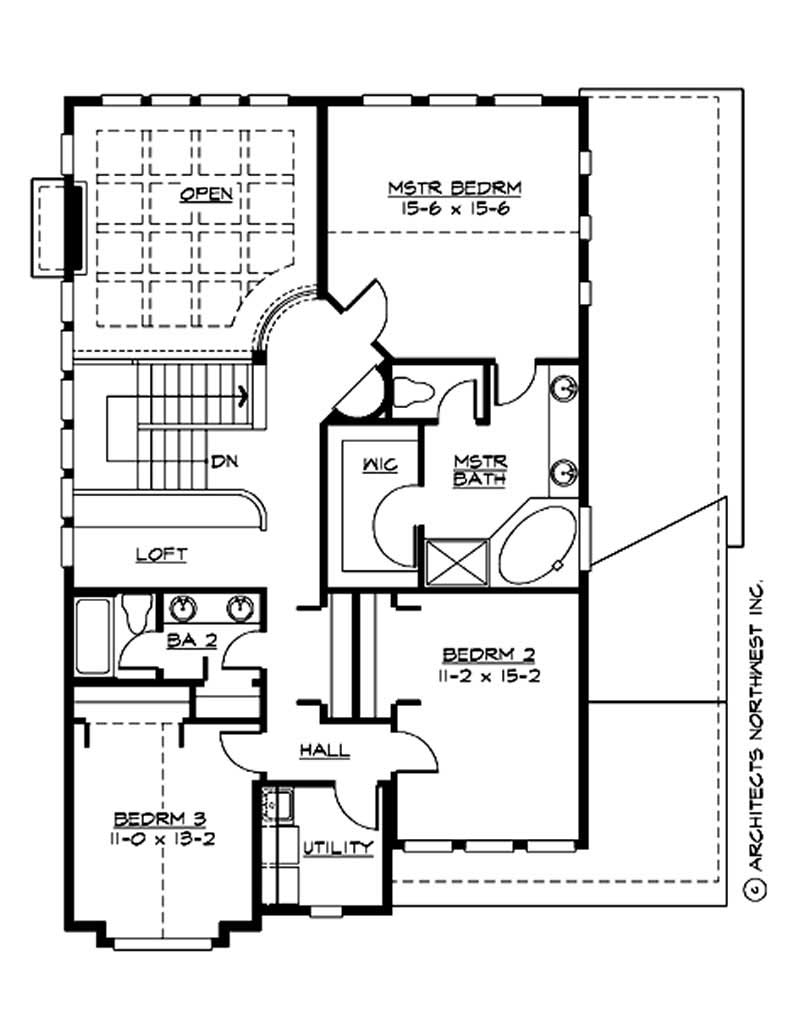

#115-1436 Floor Plan Second Story - second story Floor Plan Second Story of Tudor Plan #115-1436
Home Plan: #115-1436 Floor Plan First Story - first story Floor Plan First Story of Tudor Plan #115-1436
#115-1436 Floor Plan Second Story - second story Floor Plan Second Story of Tudor Plan #115-1436
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 115-1436
Floors:
2
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
2632
Main Floor:
1380
Upper Floor:
1252
Unfinished Sq Ft:
Bonus Room:
67
Garage :
552

Dimensions

Width:
40' 0"
Depth:
52' 0"
Ridge Height:
32'5' 0"

Architectural Styles

Tudor

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Guest Room

Garage Type

Attached Garage

Fireplaces

One Fireplace

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

Please Note: The plans by this designer DO NOT include electrical plans or electrical layout plans. NOTE: If you are building this home in Washington State, please contact us BEFORE placing your order!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
