About Plan # 167-1187

About Plan # 167-1187

1795 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 36' 0" WIDTH 40' 0" DEPTH 0 GARAGE BAY

167-1187  provides a great view with many windows, and a large front deck with a hot tub. This Log Home also provides a great master bedroom with a private deck, kitchen, dining room, living room, two additional bedrooms, loft, and balcony. These House Plans are perfect for a vacation or for everyday.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

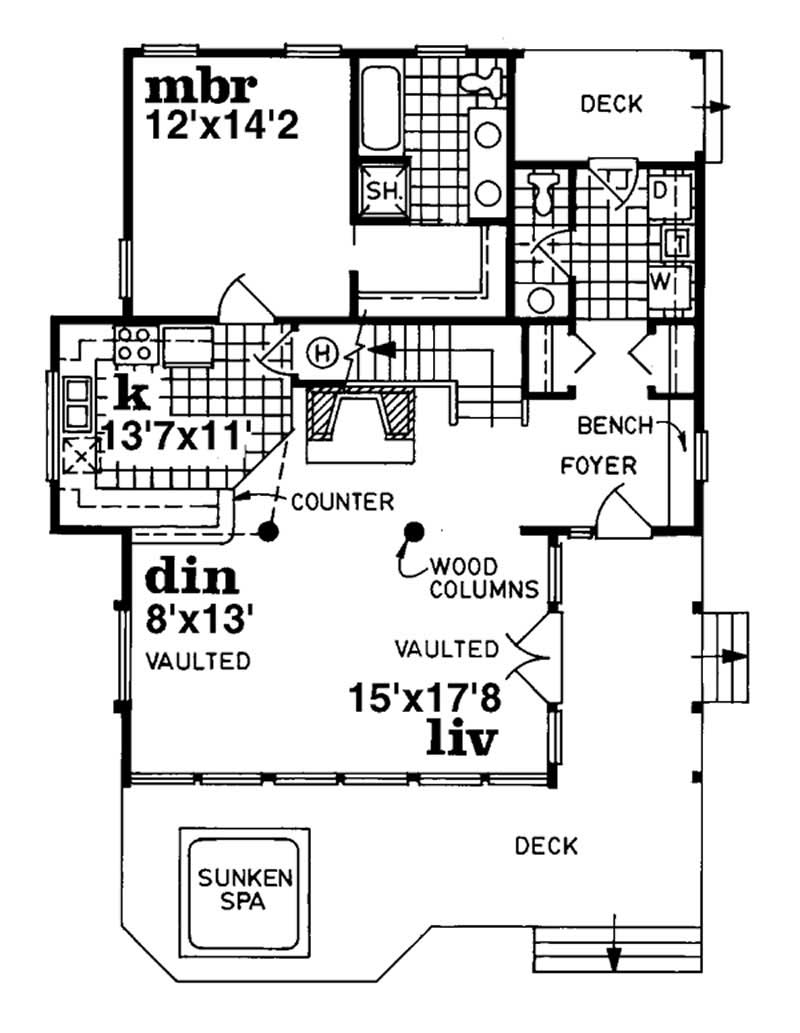

Home Plan: #167-1187 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #167-1187

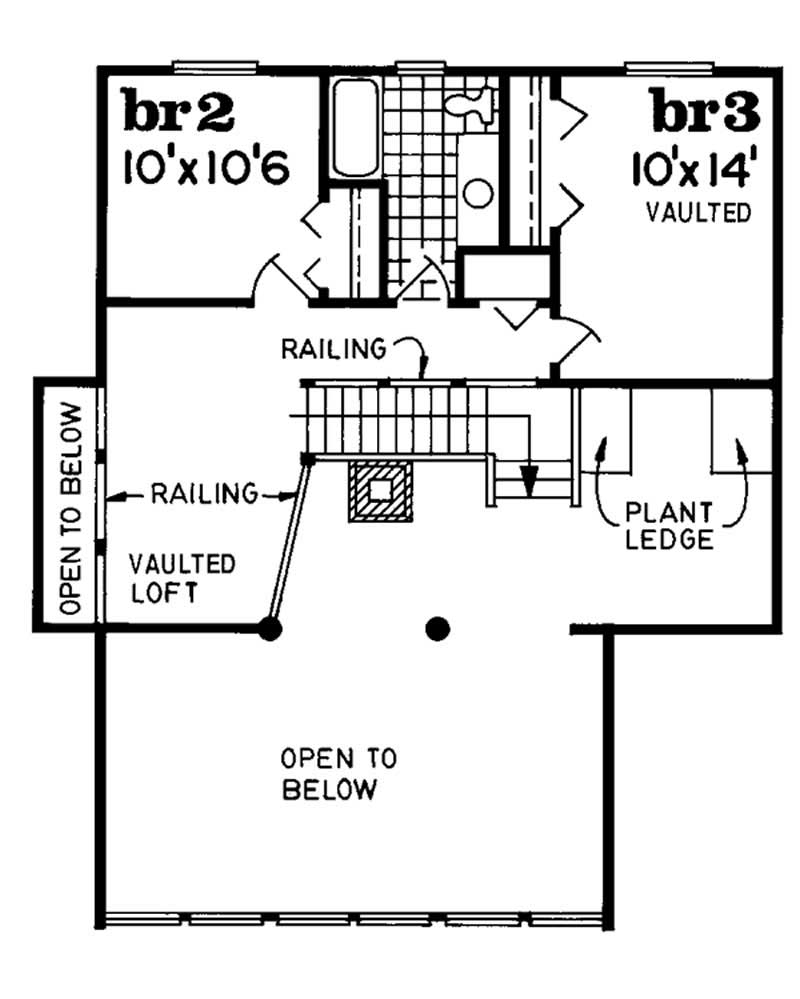

#167-1187 Floor Plan Second Story - upper level Floor Plan Second Story of Contemporary Plan #167-1187
Home Plan: #167-1187 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #167-1187
#167-1187 Floor Plan Second Story - upper level Floor Plan Second Story of Contemporary Plan #167-1187
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 167-1187
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
1795
Main Floor:
1157
Upper Floor:
638
Unfinished Sq Ft:

Dimensions

Width:
36' 0"
Depth:
40' 0"
Ridge Height:
30' 0"

Architectural Styles

Vacation Homes
Contemporary
Passive Solar
Small House Plans

Exterior Wall Material

Vinyl Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Ceiling Height

8 Foot Ceiling

Special Feature

Fireplace
Swimming Pool
Dining Room
Main Level Laundry
Loft
Split Bathroom
Vaulted Ceilings
Balcony

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design
View Lot

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Wrap Around Porch
Covered Front Porch
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Private Deck

Additional Notes from Designer

For this designer, if you are ordering a CAD, the wait time could be 2-3 weeks, depending on the plan. If you need it sooner, please contact us to find out the wait time. Thank you! PLEASE NOTE! Plans from this designer could take up to 14 days to fulfill, regardless of the plan package that was ordered.
