1-Car, 400 Sq Ft Garage Plan with Apartment Above

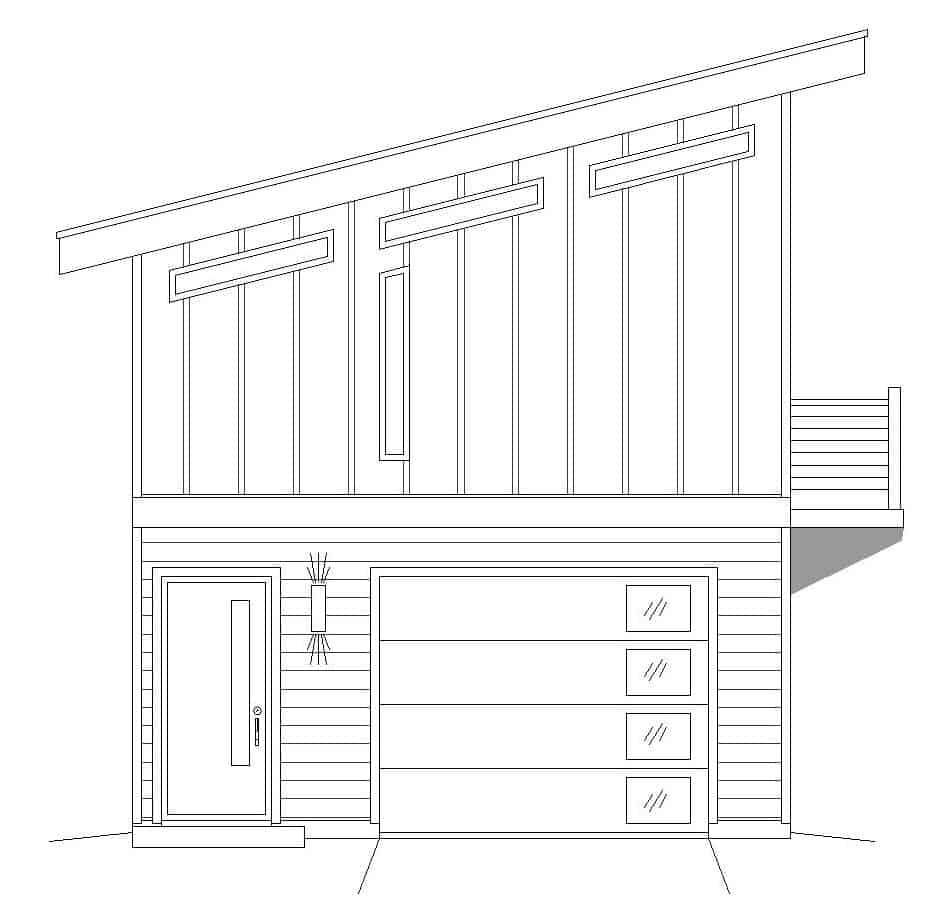

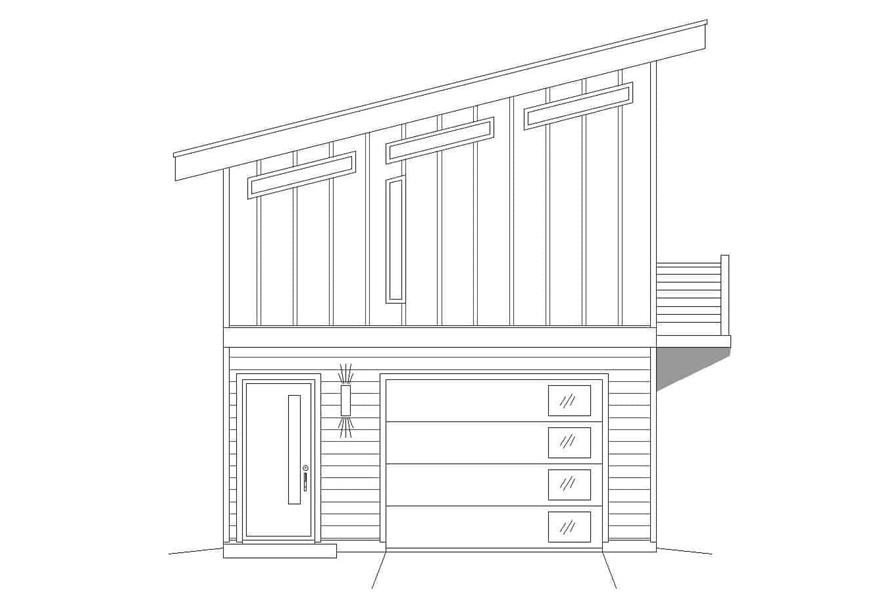

Front elevation of Garage home (ThePlanCollection: House Plan #196-1098)

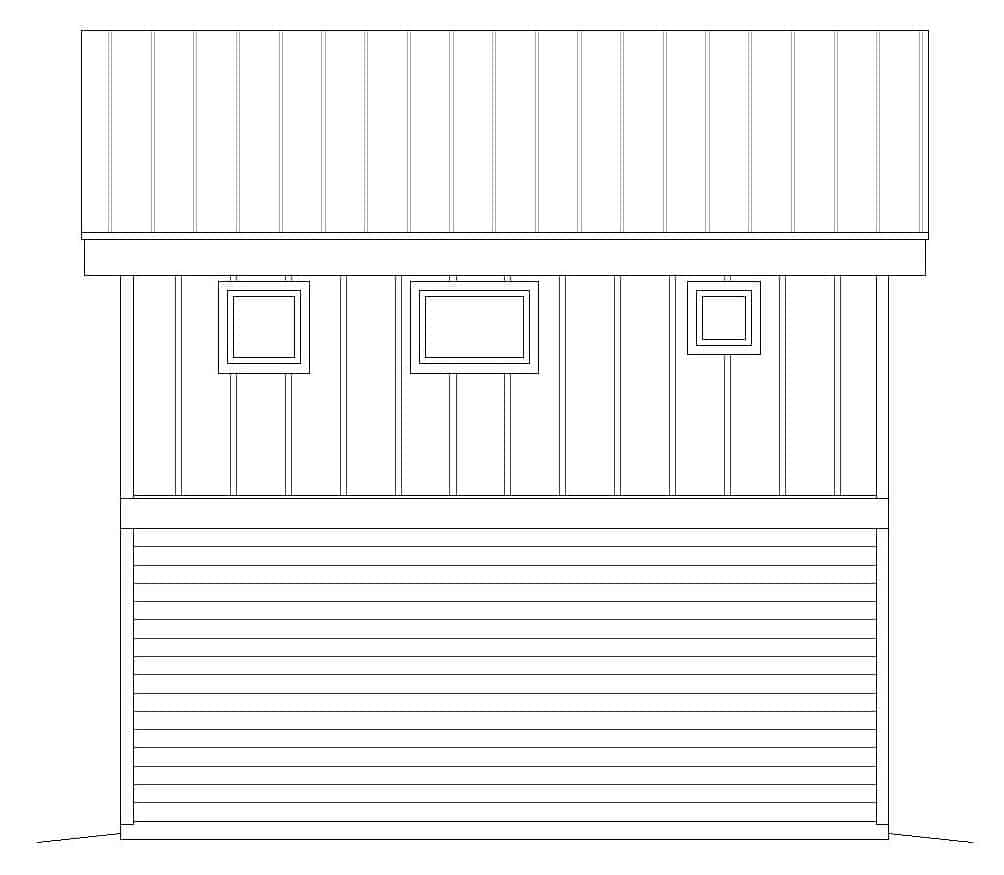

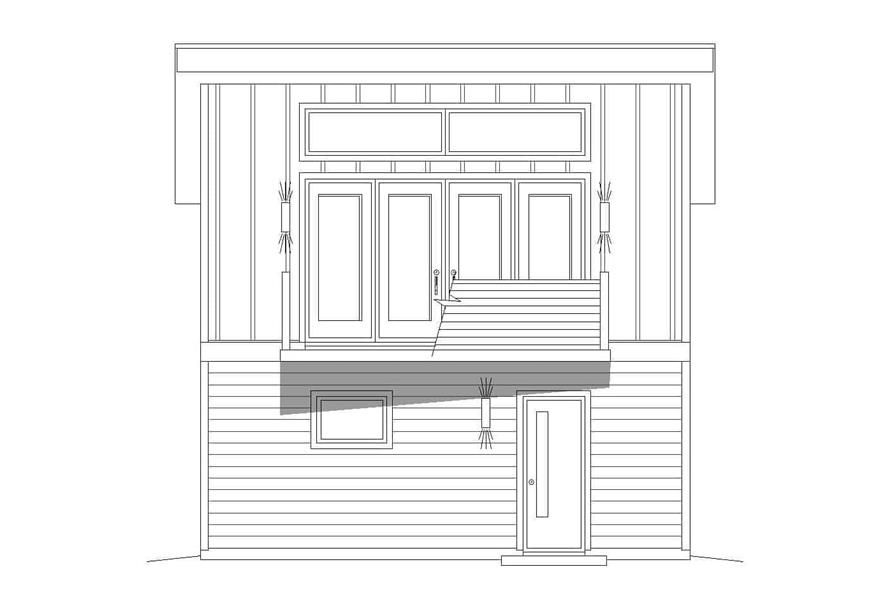

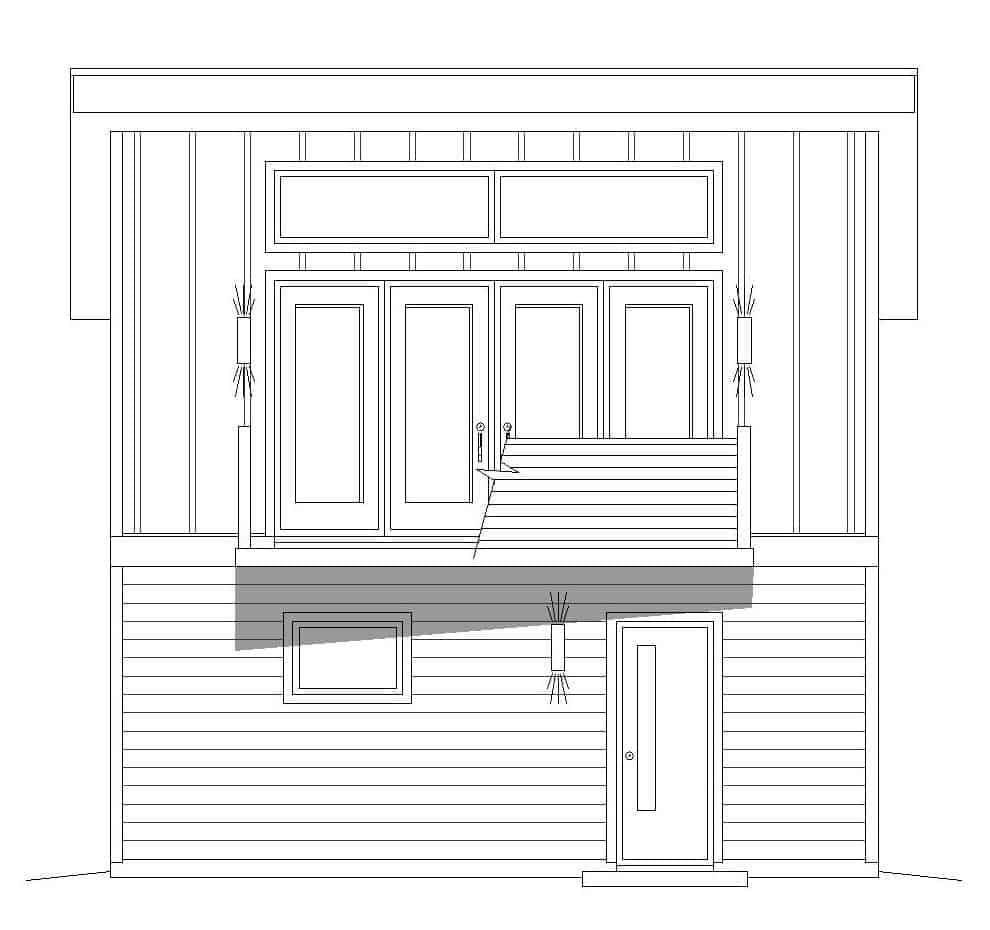

196-1098: Home Plan Rear Elevation

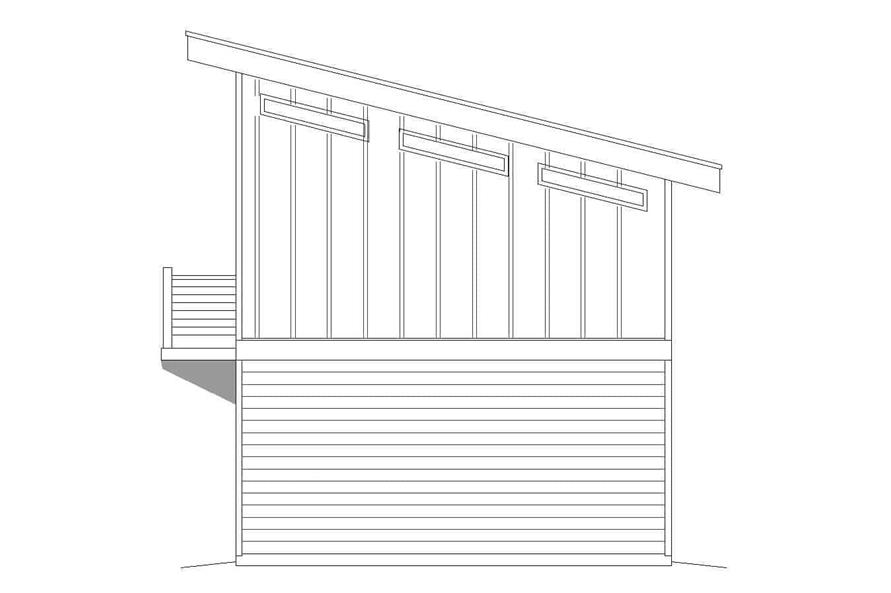

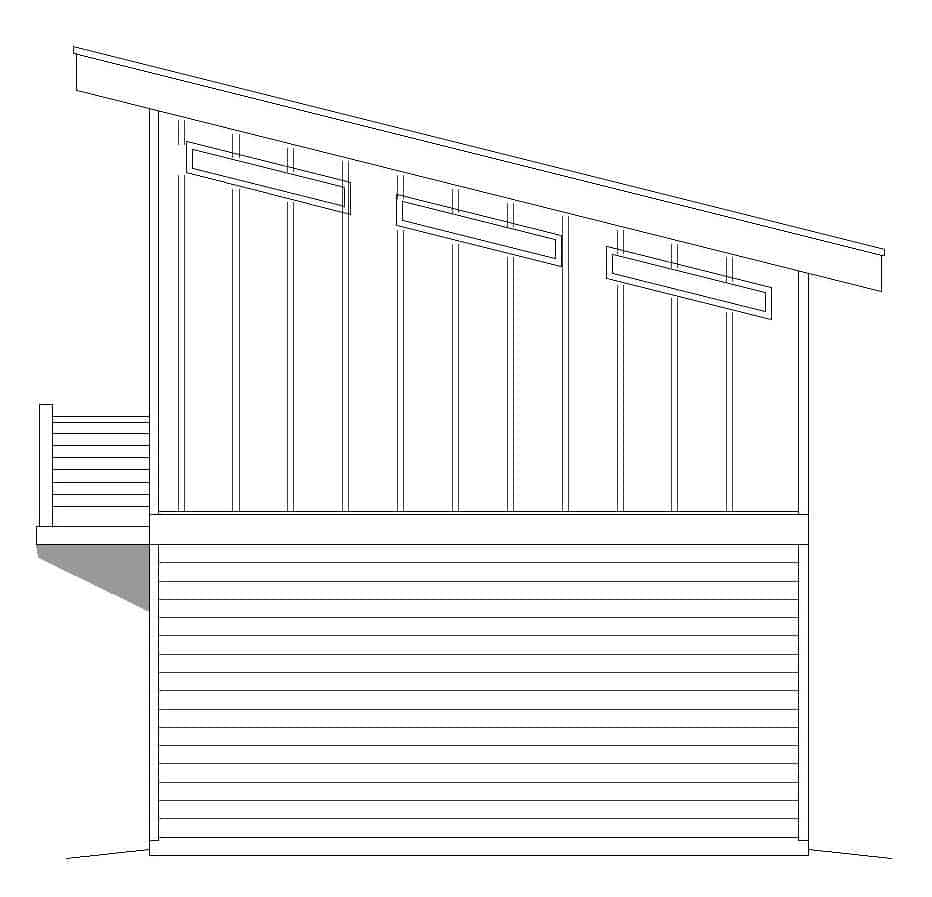

196-1098: Home Plan Left Elevation
196-1098: Home Plan Right Elevation
196-1098: Home Plan Front Elevation
0-Bedroom, 400 Sq Ft Garage Home Plan - 196-1098 - Main Exterior

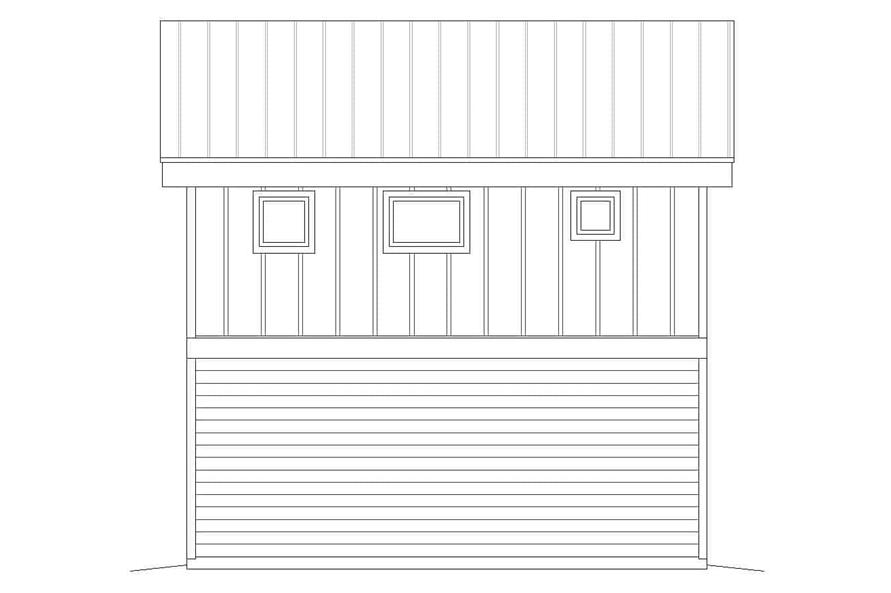

196-1098: Home Plan Rear Elevation
196-1098: Home Plan Left Elevation
196-1098: Home Plan Right Elevation
196-1098: Home Plan Front Elevation

About Plan # 196-1098

About Plan # 196-1098

400 SQUARE FEET 0 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 21' 0" WIDTH 18' 3" DEPTH 1 GARAGE BAY

House Plan Description

This 1-car garage with an apartment above boasts a contemporary vibe. The 400 square feet of living space is designed as a loft in a vaulted space. It includes a small kitchen and 3/4 bathroom.


Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

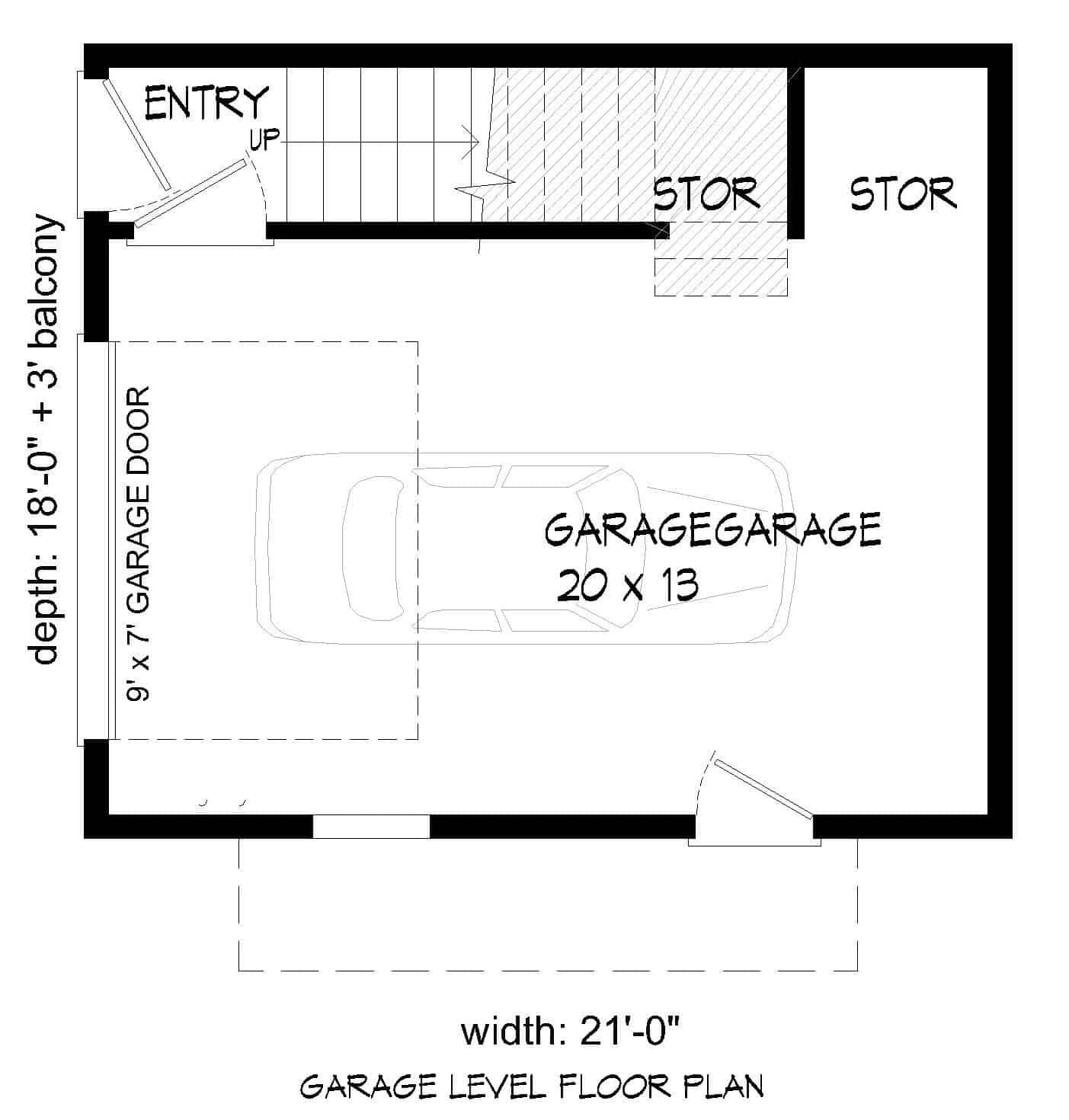

Home Plan: #196-1098 Floor Plan First Story - main level Floor Plan Main Level of Garage Plan #196-1098

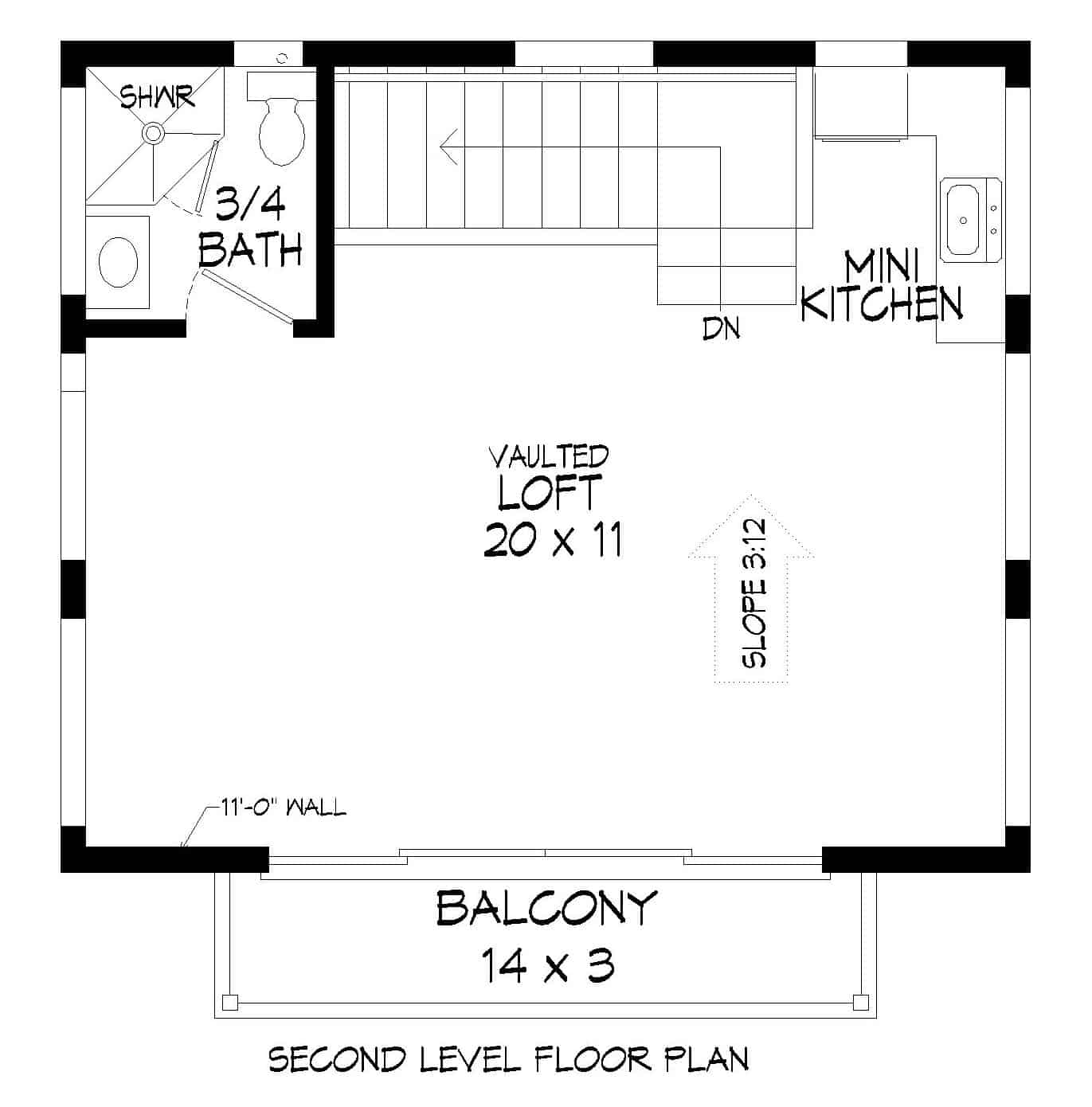

#196-1098 Floor Plan Second Story - upper level Floor Plan Upper Level of Garage Plan #196-1098
Home Plan: #196-1098 Floor Plan First Story - main level Floor Plan Main Level of Garage Plan #196-1098
#196-1098 Floor Plan Second Story - upper level Floor Plan Upper Level of Garage Plan #196-1098
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 196-1098
Floors:
2
Full Baths:
1
Garage :
1

Square Footage

Heated Sq Feet:
400
Main Floor:
22
Upper Floor:
378
Unfinished Sq Ft:
Garage :
356

Dimensions

Width:
21' 0"
Depth:
18' 3"
Ridge Height:
21' 8"

Architectural Styles

Contemporary
Garage
Garage w/Apartments
Modern

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Flat

Roofing Material

Metal

Roof Pitch

3/12

Ceiling Height

8 Foot Ceiling

Special Feature

Apartment
Balcony
Open Floor Plan
Storage
Vaulted Ceilings

Exterior Wall Framing

2x6

Additional Notes from Designer

NOTE FROM DESIGNER REGARDING PLAN PURCHASES: 80% of a 5 set purchase price can be applied to any PDF or CAD license upgrade. Additionally, 80% of PDF Study purchase price can be applied to any CAD or PDF license upgrade.

PRICING OPTIONS

A full set of construction drawings in an electronic format provides many advantages over printed blueprint packages and reproducible masters. You can make multiple copies at a local copy center using the paper size of your choice. If you need to make modifications, a design professional can do so typically the same way a reproducible master would be modified. The PDF File Set can be emailed directly to you - often the same day or within 1 business day of your order. Purchase of this PDF File Set constitutes a license to build a single house only.

This package includes a license to build a single house plus full construction drawings with the minimum number of sets needed to build your own home.

Five printed sets and a digital PDF set of construction documents with a copyright release and a single license to build.

For use by design professionals. This file includes one copy of all CAD files for your house plan. This allows for more extensive plan modifications and enables the designer/architect to begin working from the existing file rather than redraw the plan. The cost for the CAD file offsets some of the labor costs a designer would charge if the plan were redrawn. Purchase of this CAD File constitutes a license to build a single house only.

This includes a license to build a single house plus one full set of construction drawings printed on a reproducible medium. A reproducible set allows you to make as many copies as needed for construction of a single home or to take them to a local professional for modifications. To build more than one house, please contact us for a multi-use building license.

This PDF File study set allows you to review the home plan in detail and obtain bids. Stamped "Not for Construction." It is illegal for a builder to construct a house from plans stamped this way. It will be sent to you by email.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
