3-Bedroom, 2649 Sq Ft Ranch Plan with Split Master Bedroom
Related House Plans
| 2649 SQUARE FEET | 3 BEDROOMS | 3 FULL BATH | 1 HALF BATH |
| 1 FLOOR | 113' 6" WIDTH | 55' 2" DEPTH | 3 GARAGE BAY |

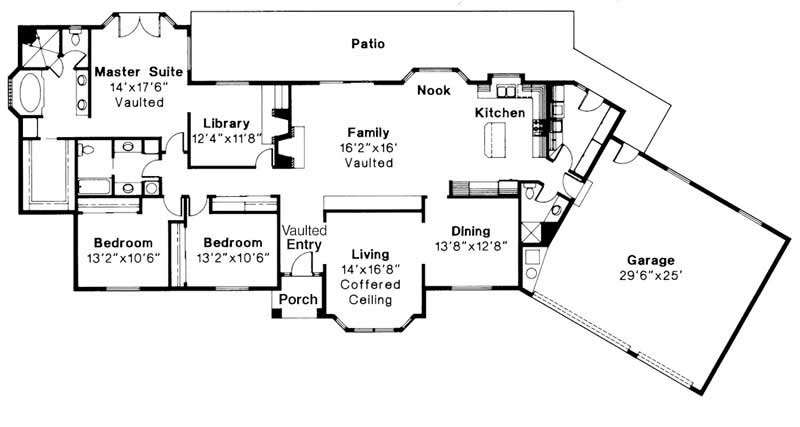

The #108-1331 home plan is a single story, ranch style house plan with 2649 total living square feet. This ranch home plan features a spacious vaulted family room with a coffered living room at the core. The fireplaces share one chimney and warm both the library and family room. The elegant vaulted master suite is linked to the library, which also has an exterior access.
Each plan set includes the following:
-
Artist’s rendering of the home,
-
Front/Rear/Left and Right Elevations,
-
Main floor plan, Second or Basement floor plans (if applicable),
-
Foundation plan and detail,
-
Floor framing plan,
-
Roof framing plan, supporting details and
-
Electric layout.
