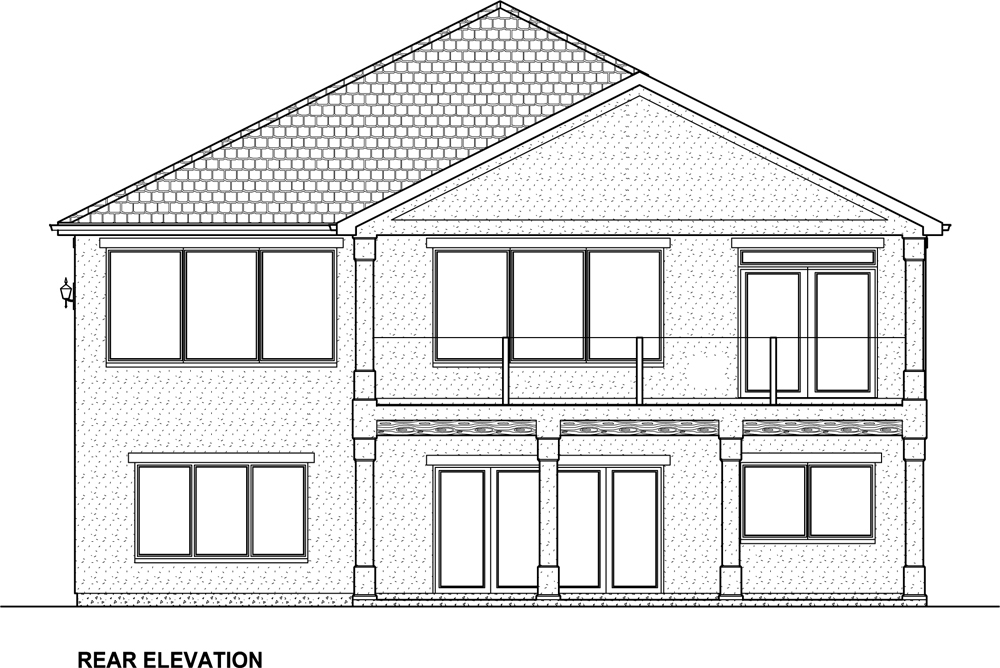

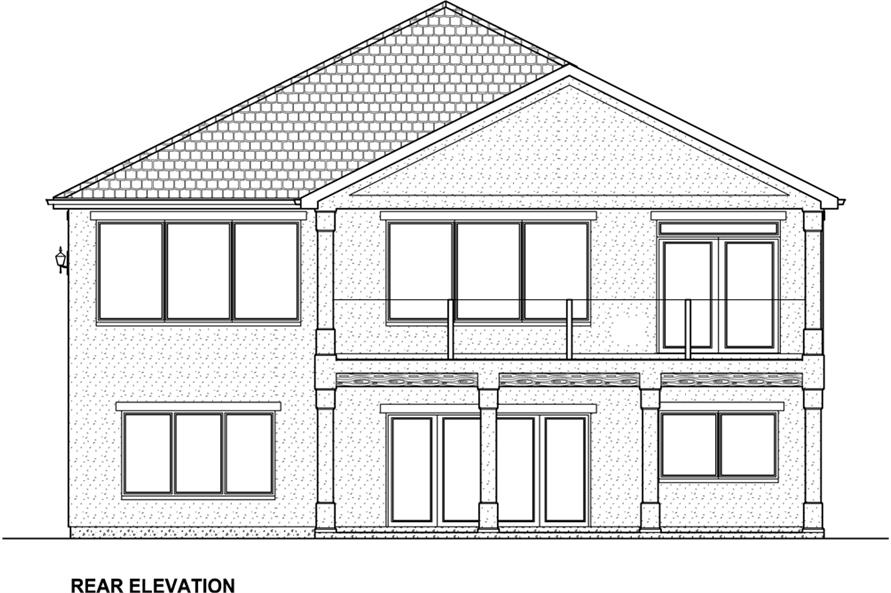

177-1043: Home Plan Rear Elevation

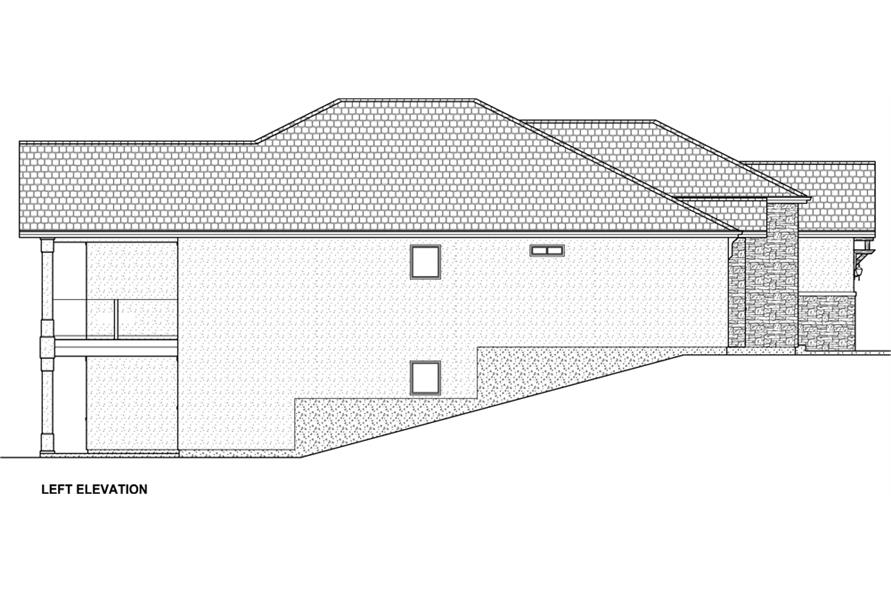

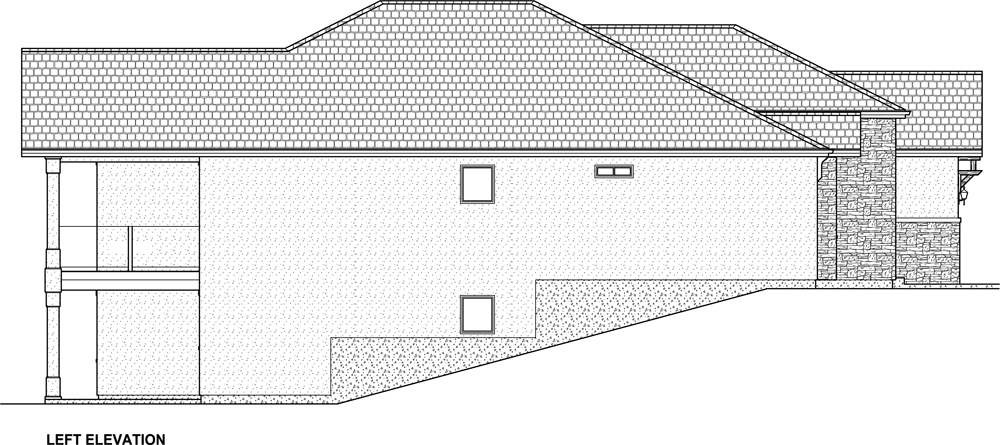

177-1043: Home Plan Left Elevation

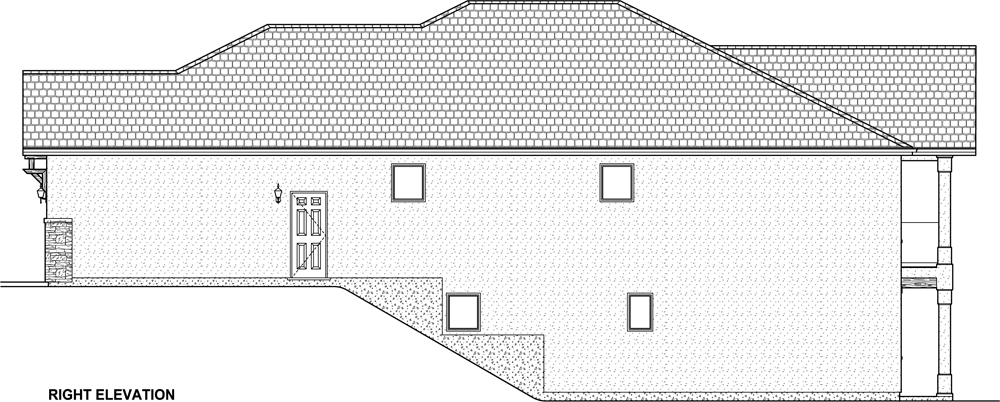

177-1043: Home Plan Right Elevation

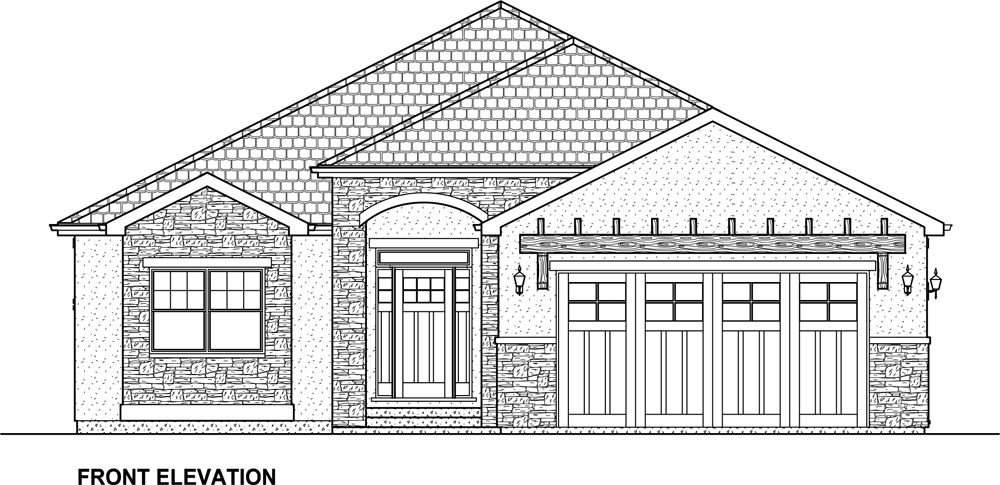

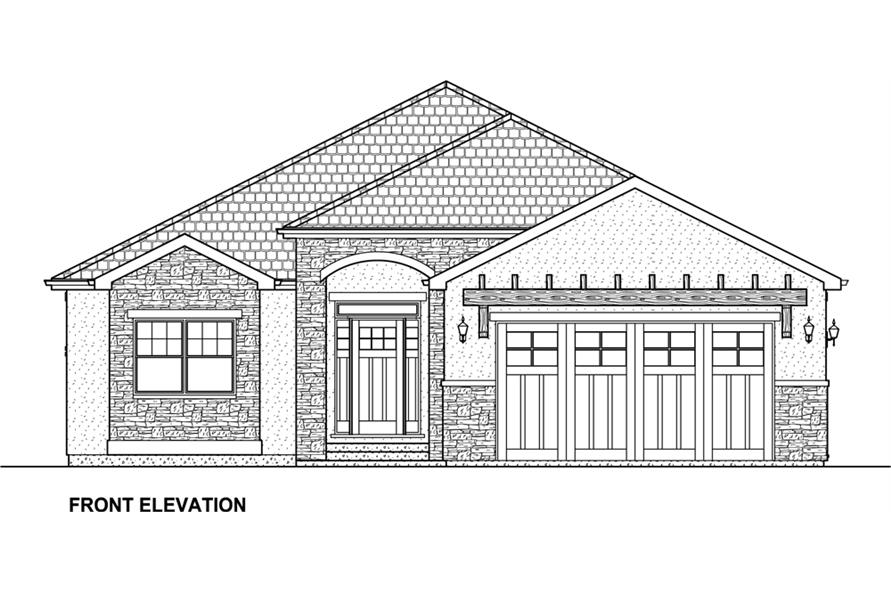

177-1043: Home Plan Front Elevation
3-Bedroom, 3952 Sq Ft Mediterranean House Plan - 177-1043 - Front Exterior
177-1043: Home Plan Rear Elevation
177-1043: Home Plan Left Elevation

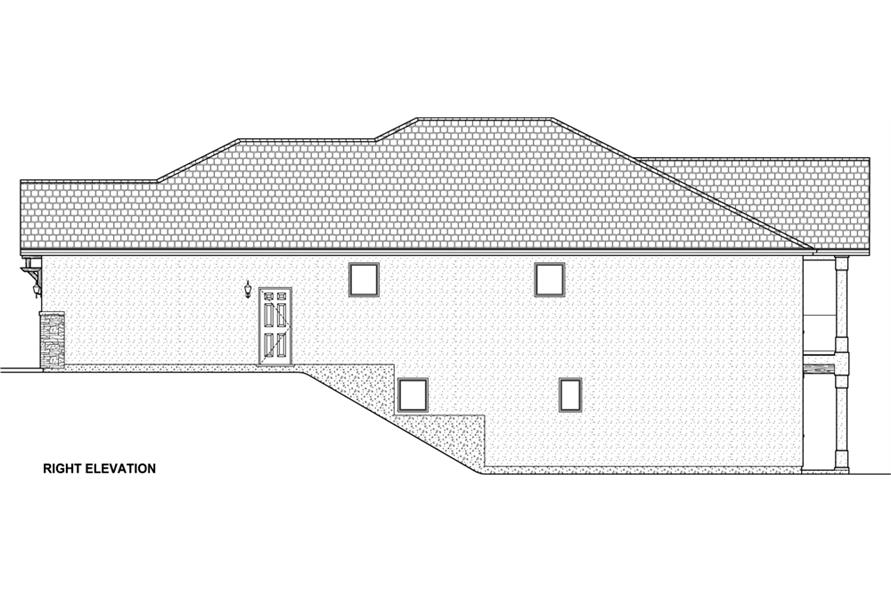

177-1043: Home Plan Right Elevation
177-1043: Home Plan Front Elevation

About Plan # 177-1043

About Plan # 177-1043

3952 SQUARE FEET 3 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 44' 0" WIDTH 71' 0" DEPTH 2 GARAGE BAY

This lovely Mediterranean style home with Ranch influences (House Plan #177-1043) has 3952 square feet of living space. The 2 story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • Electrical Layout
  • Elevations
  • Foundation
  • Typically Roof Trusses, a few A-Frames might have the Stick Frame, but mostly roof trusses
  • Wall Section
  • Building Sections
  • Material list available for purchase
  • Cabinet elevations will vary depending on the plan (plans with inside modeling will typically have the cabinet elevations)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

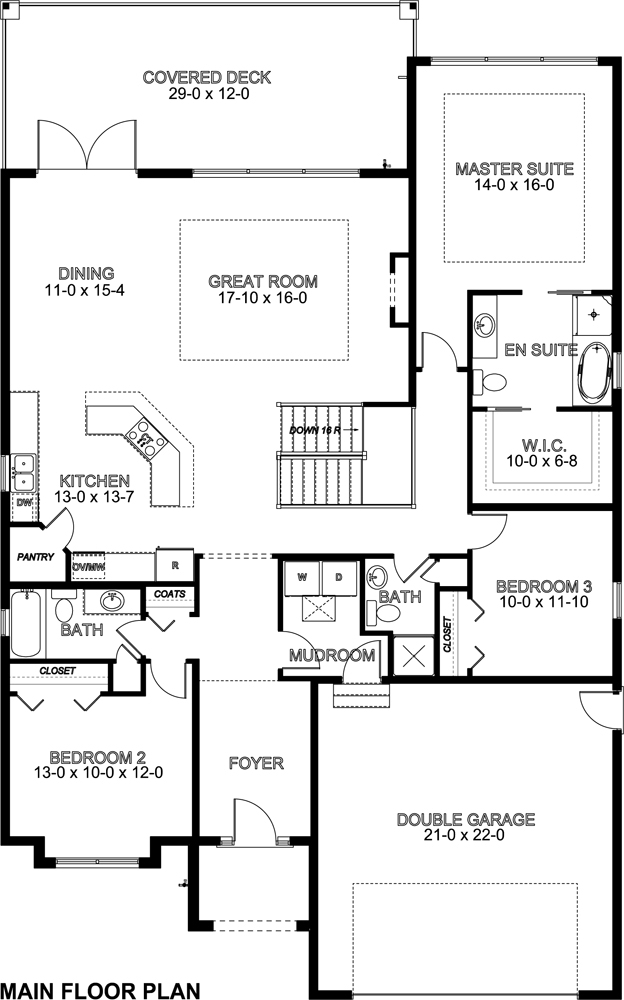

Home Plan: #177-1043 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #177-1043

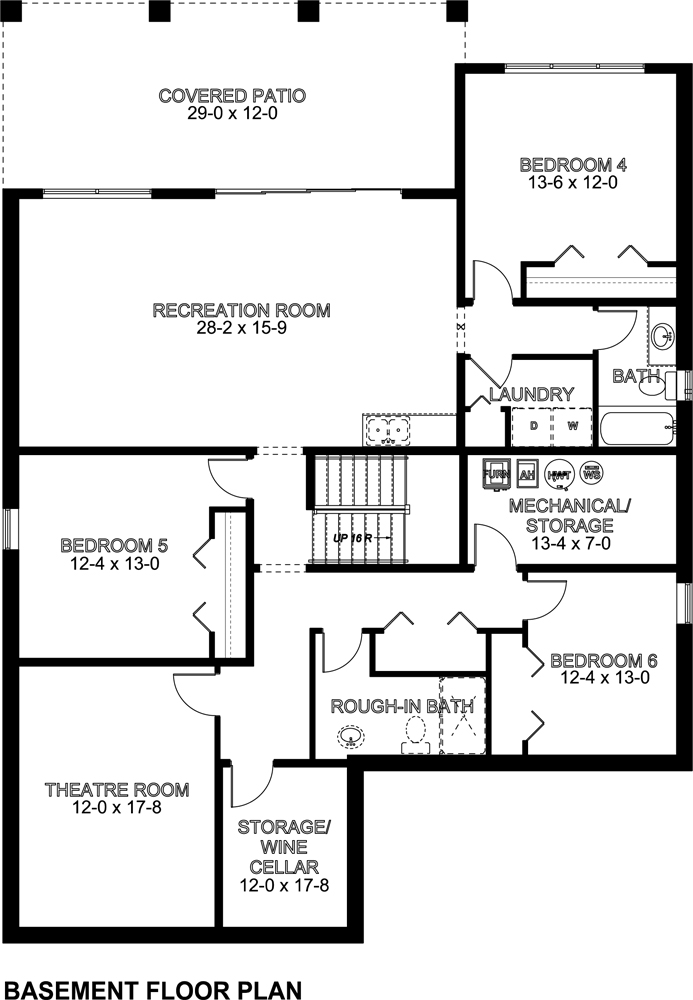

#177-1043 Floor Plan Basement - basement Floor Plan Basement of Mediterranean Plan #177-1043
Home Plan: #177-1043 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #177-1043
#177-1043 Floor Plan Basement - basement Floor Plan Basement of Mediterranean Plan #177-1043
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 177-1043
Floors:
2
Bedrooms:
3
Full Baths:
4
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
3952
Main Floor:
1983
Unfinished Sq Ft:
Lower Floor:
1969
Garage :
504

Dimensions

Width:
44' 0"
Depth:
71' 0"
Ridge Height:
31' 0"

Architectural Styles

Ranch
Mediterranean
Florida Style

Exterior Wall Material

Stucco
Rock/Stone

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Mud Room
Family Room
Main Level Laundry
Home Theater
Storage
Vaulted Ceilings
Wine Cellar
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Kitchen Features

Kitchen Island
Walk-in Pantry
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

No BCIN available. We advise you purchase a CAD and use a local engineer for BCIN Additional Use Licenses and Unlimited Use Licenses are available. After purchasing the plan, the designer will charge you separately for the additional licenses.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
