Front elevation of Garage w/Apartments home (ThePlanCollection: House Plan #177-1040)

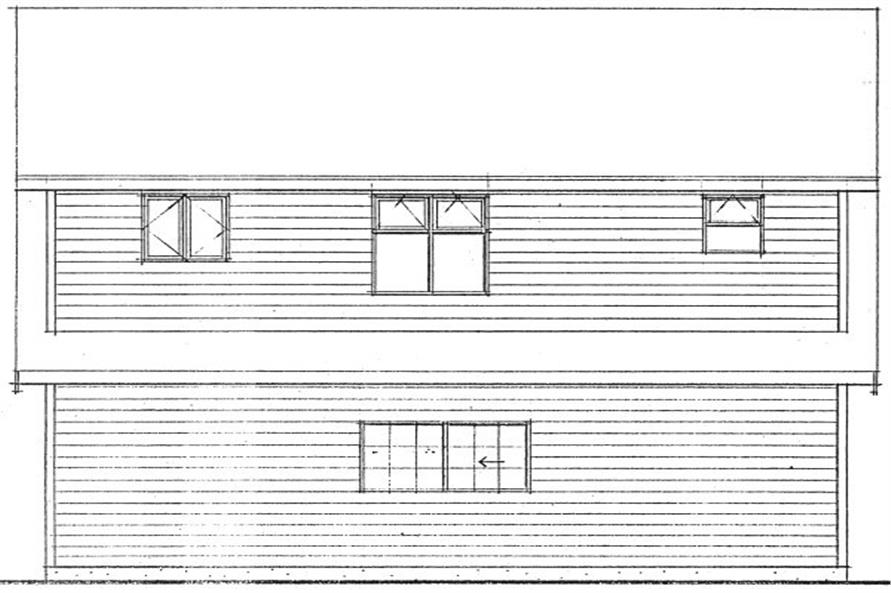

177-1040: Home Plan Rear Elevation

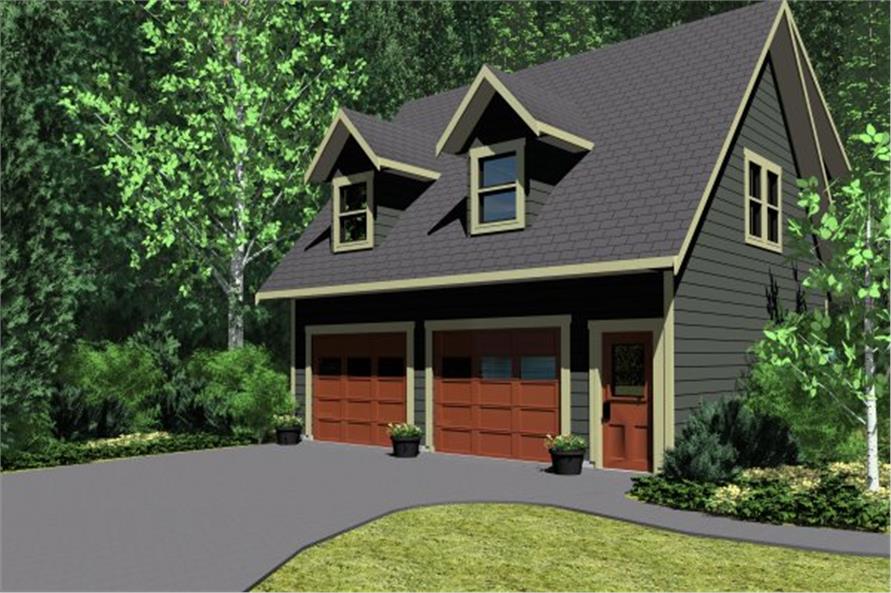

1-Bedroom, 654 Sq Ft Garage w/Apartments House Plan - 177-1040 - Front Exterior
177-1040: Home Plan Rear Elevation

About Plan # 177-1040

About Plan # 177-1040

654 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 28' 0" WIDTH 26' 0" DEPTH 2 GARAGE BAY

This country-style garage apartment has a 2-car garage and 654 living sq ft. The 2-story floor plan includes 1 bedroom.

Each plan set includes the following:

  • Electrical Layout
  • Elevations
  • Foundation
  • Typically Roof Trusses, a few A-Frames might have the Stick Frame, but mostly roof trusses
  • Wall Section
  • Building Sections
  • Material list available for purchase
  • Cabinet elevations will vary depending on the plan (plans with inside modeling will typically have the cabinet elevations)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

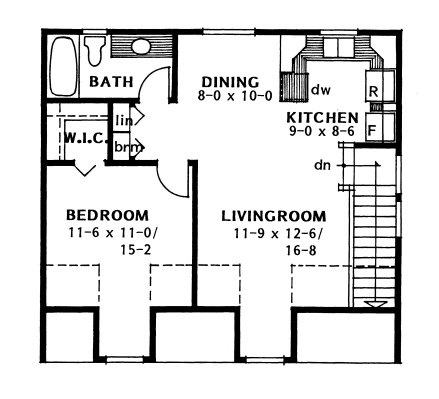

Home Plan: #177-1040 Floor Plan Second Story - upper level Floor Plan Second Story of Garage w/Apartments Plan #177-1040

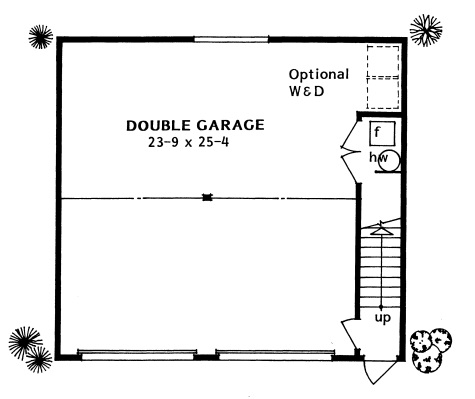

#177-1040 Floor Plan Garage - garage Floor Plan Garage of Garage w/Apartments Plan #177-1040
Home Plan: #177-1040 Floor Plan Second Story - upper level Floor Plan Second Story of Garage w/Apartments Plan #177-1040
#177-1040 Floor Plan Garage - garage Floor Plan Garage of Garage w/Apartments Plan #177-1040
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 177-1040
Floors:
2
Bedrooms:
1
Full Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
654
Main Floor:
654
Unfinished Sq Ft:
Garage :
728

Dimensions

Width:
28' 0"
Depth:
26' 0"
Ridge Height:
25' 0"

Architectural Styles

Country
Garage

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x6

Building Lot Type

Flat Site
Narrow Lot Design

Master Suite Features

Walk In Closet

Additional Notes from Designer

No BCIN available. We advise you purchase a CAD and use a local engineer for BCIN Additional Use Licenses and Unlimited Use Licenses are available. After purchasing the plan, the designer will charge you separately for the additional licenses.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
