About Plan # 100-1059

About Plan # 100-1059

1000 SQUARE FEET 0 BEDROOMS 0 FULL BATH 0 HALF BATH
2 FLOOR 37' 0" WIDTH 34' 0" DEPTH 3 GARAGE BAY

The #100-1059 is a stylish alternative to the standard 3-car garage. It even has a loft! The second floor walls are at 6'-8" high and slope up from there. The front dormer has 4'-8" high walls.

Each plan set includes the following:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

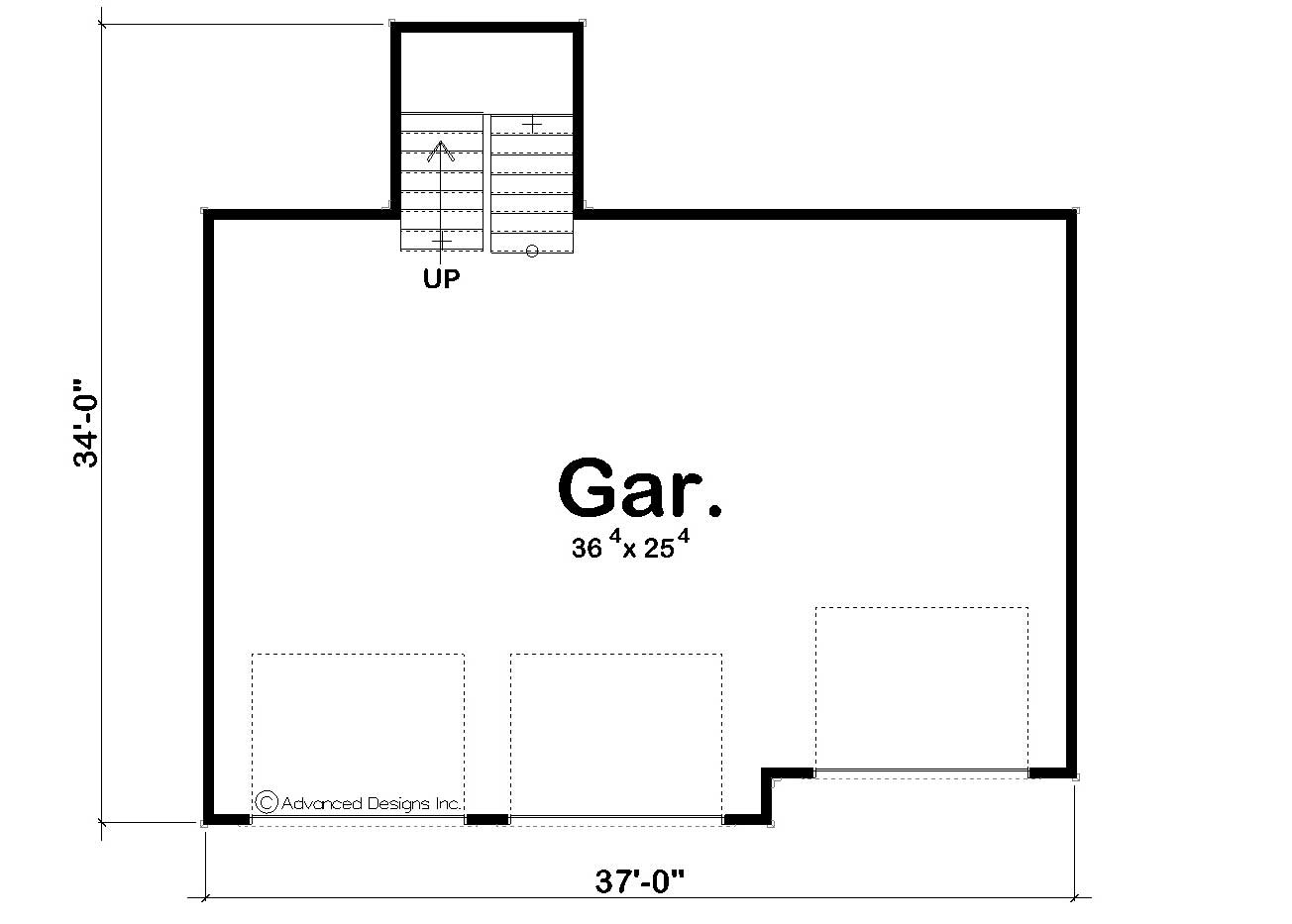

Home Plan: #100-1059 Floor Plan First Story - first story Floor Plan First Story of Garage Plan #100-1059

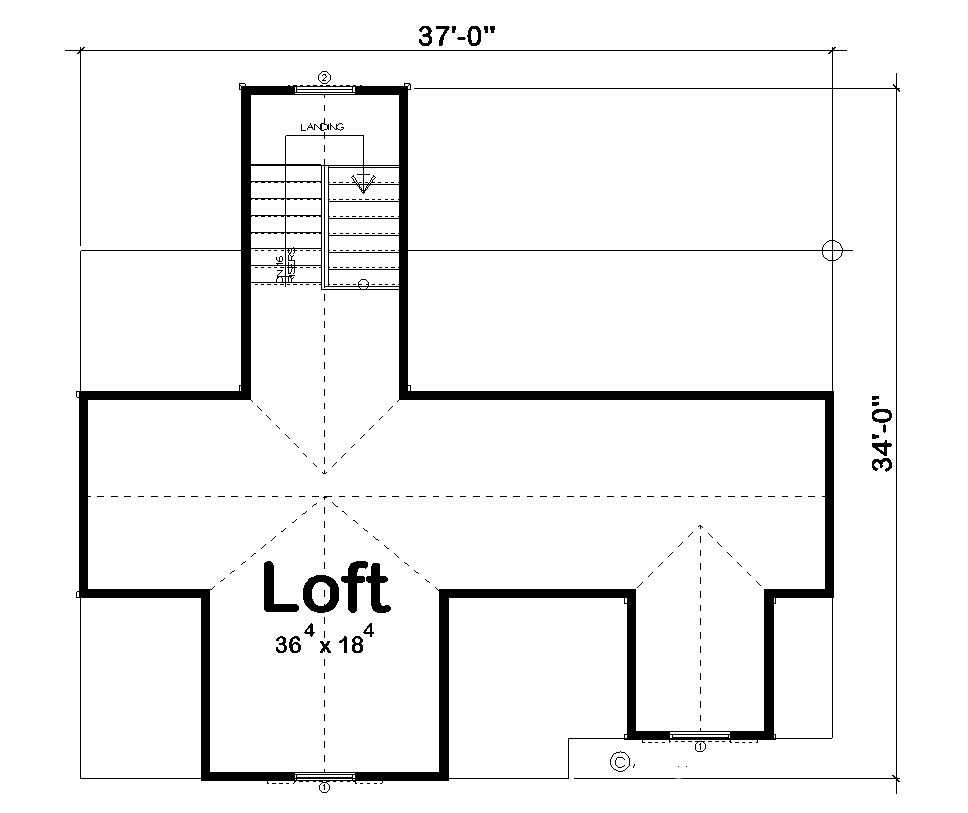

#100-1059 Floor Plan Second Story - second story Floor Plan Second Story of Garage Plan #100-1059
Home Plan: #100-1059 Floor Plan First Story - first story Floor Plan First Story of Garage Plan #100-1059
#100-1059 Floor Plan Second Story - second story Floor Plan Second Story of Garage Plan #100-1059
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 100-1059
Floors:
2
Garage :
3

Square Footage

Heated Sq Feet:
1000
Unfinished Sq Ft:
Garage :
1000

Dimensions

Width:
37' 0"
Depth:
34' 0"
Ridge Height:
21' 9"

Architectural Styles

Garage

Exterior Wall Material

Wood Siding

Roofing Type

Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Ceiling Height

9 Foot Ceiling

Special Feature

Mother in law apartment
Loft
Storage

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

The CAD File formats are drawn in SoftPlan. PLEASE NOTE: Plans by this designer do NOT come with FRAMING! This designer does not do ICF.
