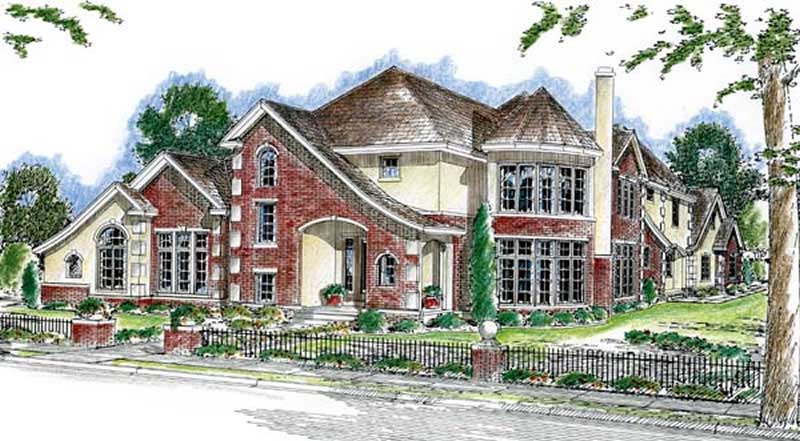

4-Bedroom, 4197 Sq Ft European House Plan - 100-1021 - Front Exterior
GAR HOMEPLANS

About Plan # 100-1021

About Plan # 100-1021

4197 SQUARE FEET 4 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 69' 2" WIDTH 90' 8" DEPTH 3 GARAGE BAY
The #100-1021 home plan is a two story, European style house plan with 4197 total living square feet. This plans beautiful exterior is made of brick and stucco. The interior has 4 bedrooms, 5 bathrooms, and an attached, 3 car garage. This plan has a matchless exterior design, providing for a very unique and beautiful home plan. The master bedroom and bath is located on the main floor on the far left side. The rest of the main floor includes the large great room which is open to the above level, straight across is the dining room, den, and the breakfast and kitchen areas. The flagstone patio is also an exceptional feature of the main floor. It spans across the back side of the house, forming a triangle in the empty space. This patio is perfect for getting the full potential out of your back yard. The upper floor consists of 3 bedrooms and a loft. The loft has a seat inside the window, perfect for seeing the great view of your surrounding area.

Each plan set includes the following:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.

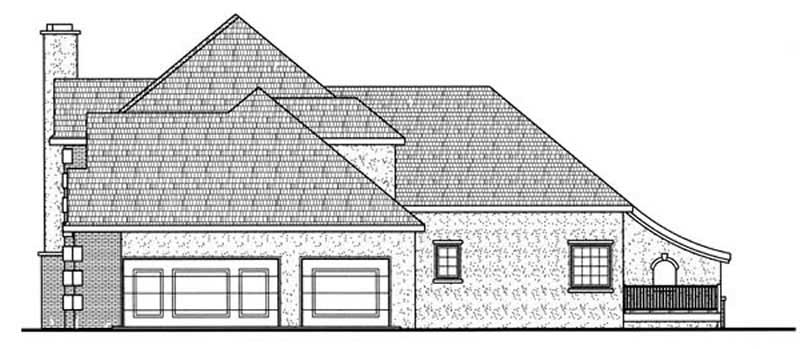

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

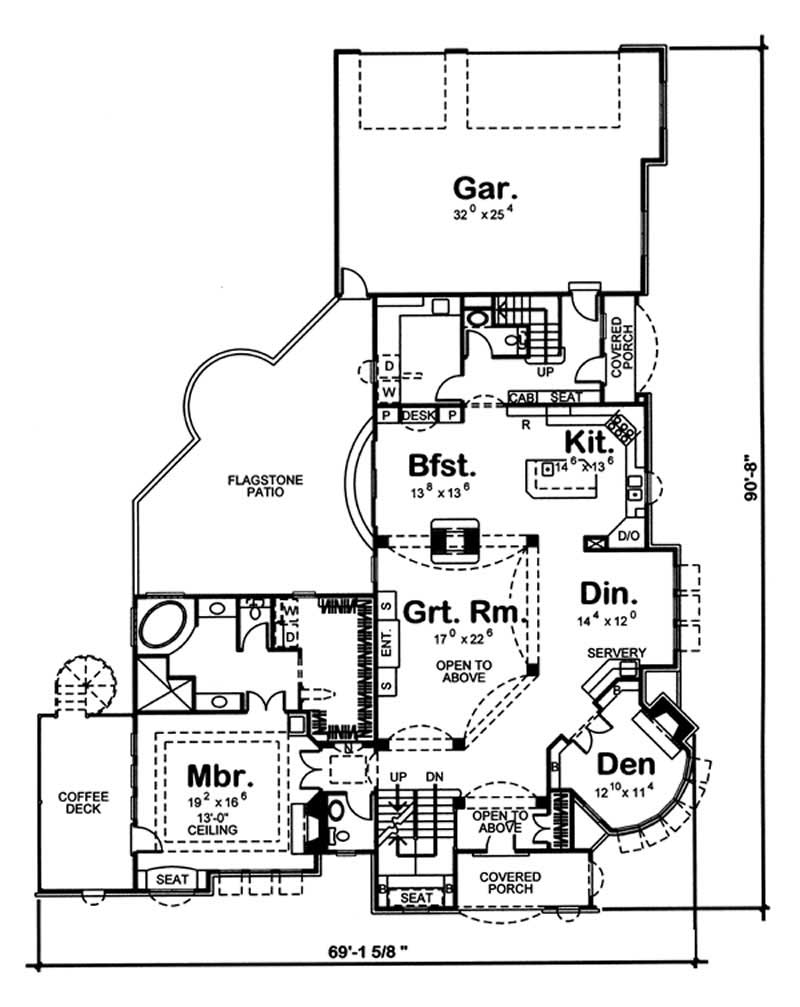

Home Plan: #100-1021 Floor Plan First Story - main level Floor Plan First Story of European Plan #100-1021

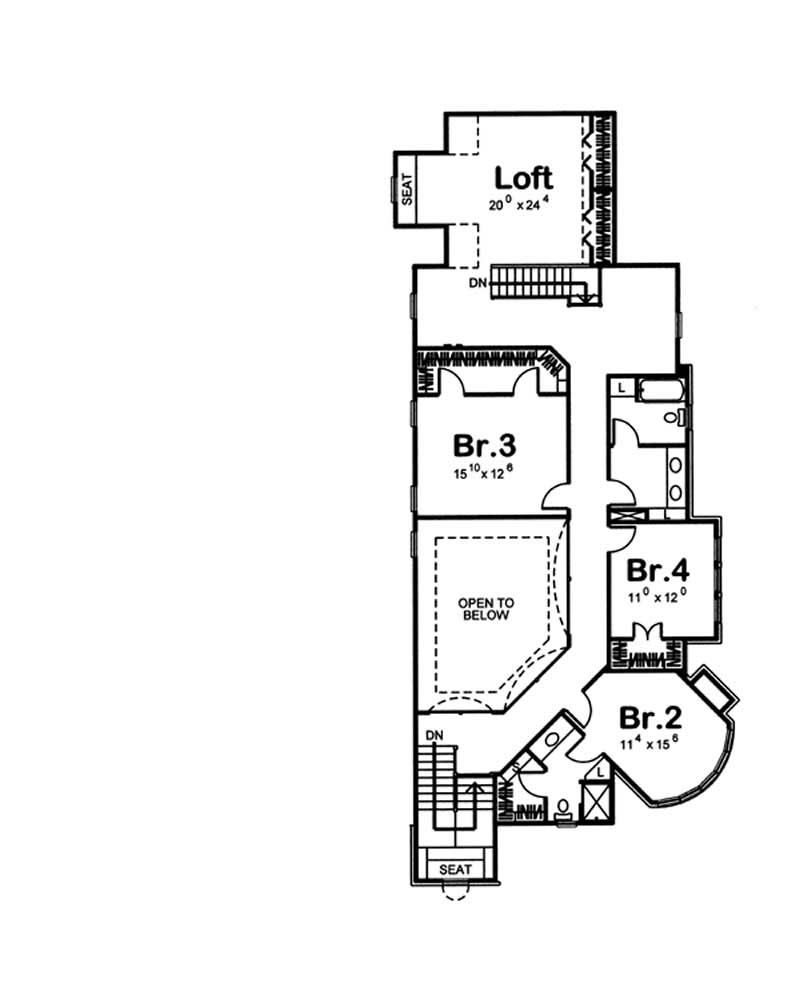

#100-1021 Floor Plan Second Story - second level Floor Plan Second Story of European Plan #100-1021
Home Plan: #100-1021 Floor Plan First Story - main level Floor Plan First Story of European Plan #100-1021
#100-1021 Floor Plan Second Story - second level Floor Plan Second Story of European Plan #100-1021
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 100-1021
Floors:
2
Bedrooms:
4
Full Baths:
5

Square Footage

Heated Sq Feet:
4197
Main Floor:
2491
Upper Floor:
1706
Unfinished Sq Ft:
Garage :
873

Dimensions

Width:
69' 2"
Depth:
90' 8"

Architectural Styles

European

Exterior Wall Material

Brick
Stucco

Roofing Type

Hip

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Garage Type

Attached Garage

Fireplaces

Three Fireplaces

Exterior Wall Framing

2x4

Additional Notes from Designer

The CAD File formats are drawn in SoftPlan. PLEASE NOTE: Plans by this designer do NOT come with FRAMING! This designer does not do ICF.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
