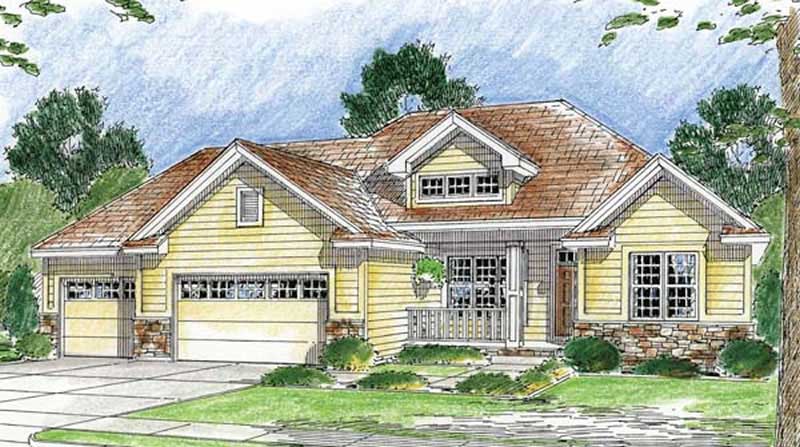

1-Bedroom, 1830 Sq Ft Ranch Home Plan - 100-1086 - Main Exterior
HOMEPLANS GAR

About Plan # 100-1086

About Plan # 100-1086

1830 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
1 FLOOR 66' 0" WIDTH 55' 4" DEPTH 4 GARAGE BAY

The #100-1086 home plan is a single story, Bungalow Style house plan with 1830 total living square feet. This home plan has 1 bedroom, 1 bath, and a 4 car garage. This house plan also has a dining room, breakfast and kitchen area, a great room, and the master bedroom and bath.

Each plan set includes the following:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.

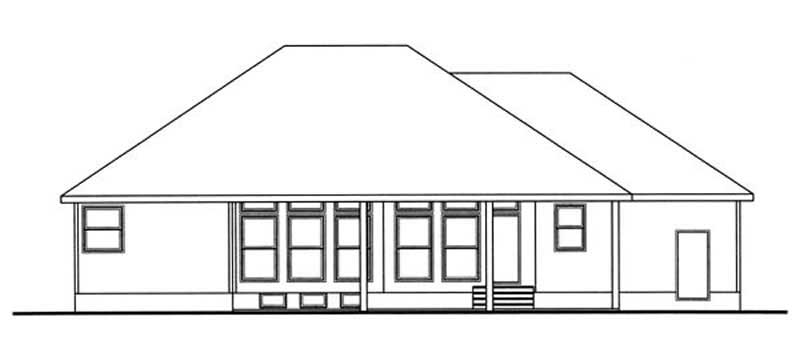

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #100-1086 Floor Plan First Story Floor Plan First Story of Ranch Plan #100-1086
Home Plan: #100-1086 Floor Plan First Story Floor Plan First Story of Ranch Plan #100-1086
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 100-1086
Floors:
1
Bedrooms:
1
Full Baths:
1

Square Footage

Heated Sq Feet:
1830
Main Floor:
1830
Unfinished Sq Ft:
Garage :
1088

Dimensions

Width:
66' 0"
Depth:
55' 4"
Ridge Height:
23'7' 0"

Architectural Styles

Bungalow

Roofing Type

Hip

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Additional Notes from Designer

The CAD File formats are drawn in SoftPlan. PLEASE NOTE: Plans by this designer do NOT come with FRAMING! This designer does not do ICF.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
