1-Bedroom, 2176 Sq Ft European Plan with Second Floor Master

Main image for house plan # 19809
Home Plan Rendering
1-Bedroom, 2176 Sq Ft European House Plan - 131-1194 - Front Exterior
Home Plan Rendering

About Plan # 131-1194

About Plan # 131-1194

2176 SQUARE FEET 1 BEDROOMS 0 FULL BATH 0 HALF BATH
1 FLOOR 77' 0" WIDTH 41' 6" DEPTH 2 GARAGE BAY
Quaint, complex pitched roof lines and long, light-filled windows make plan #10555 a very proper Tudor-style home befitting todays lifestyles. The formal entry with double doors hints at all the sophistication to come: a library on one side, formal dining on the other. The living room is central to the layout, inviting folks to gather at the fireplace, hang out on the screened porch, join the hustle bustle in the kitchen, or take meals to the outdoor patio. The master suit with special ceiling and dreamy full bath (tub tucked beneath corner of windows, separate shower) enjoys main-floor access to the library and a front yard view. Upstairs, a lavishly long hallway delivers two dramatic-looking bedrooms, built around a spacious bathroom. One bedroom with picture window also features an expansive closet (cedar treatment, optional!). Another bedroom with wall-length closet enjoys a backyard view.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes interior elevations.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

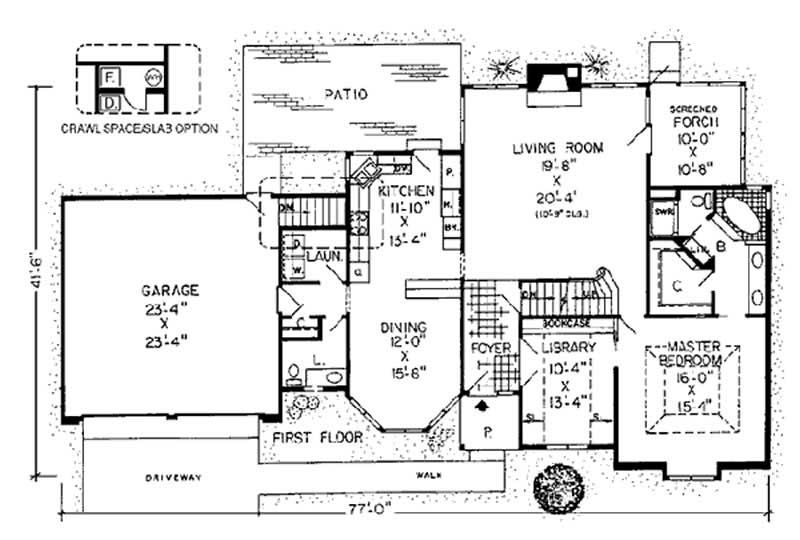

Home Plan: #131-1194 Floor Plan First Story - main level Floor Plan First Story of European Plan #131-1194

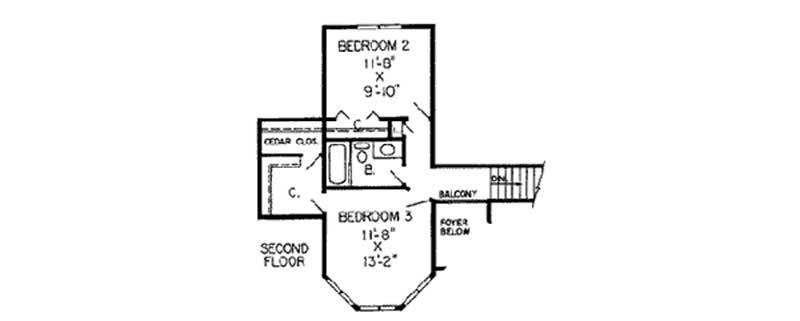

#131-1194 Floor Plan Second Story - second level Floor Plan Second Story of European Plan #131-1194
