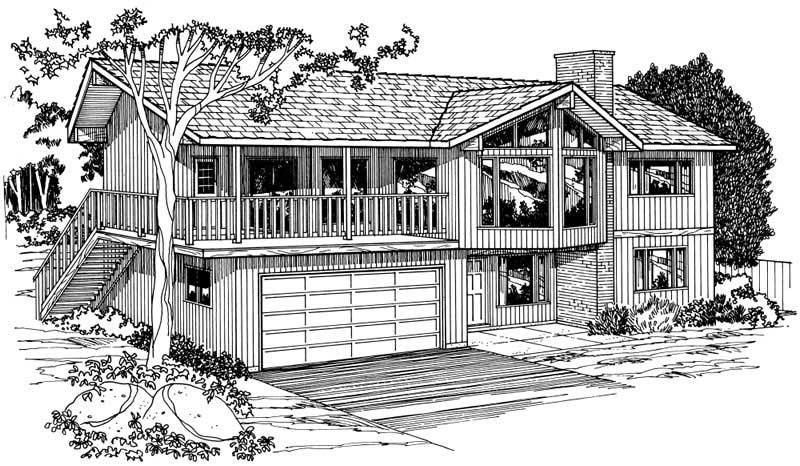

FRONT ELEVATION

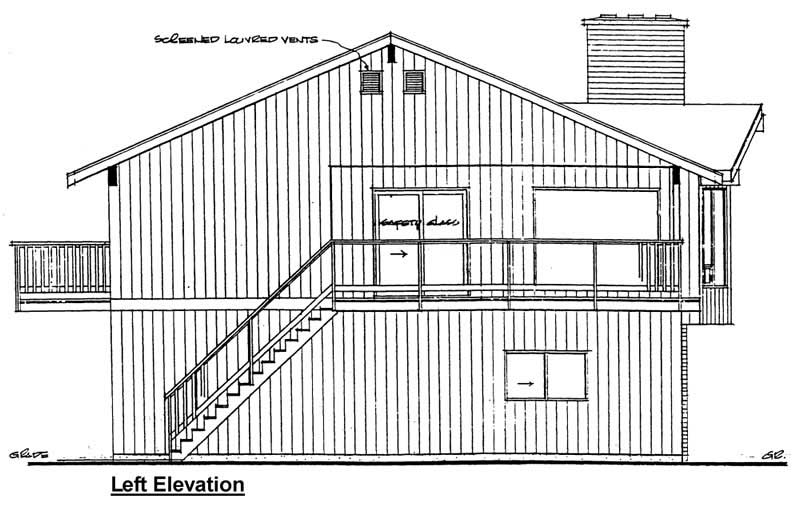

LEFT ELEVATION

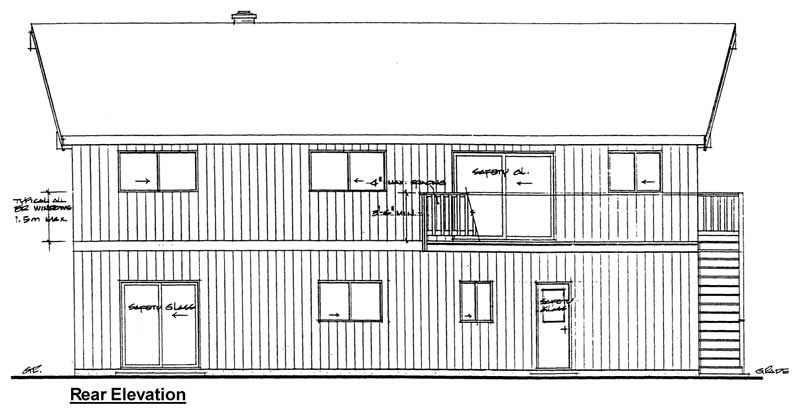

REAR ELEVATION

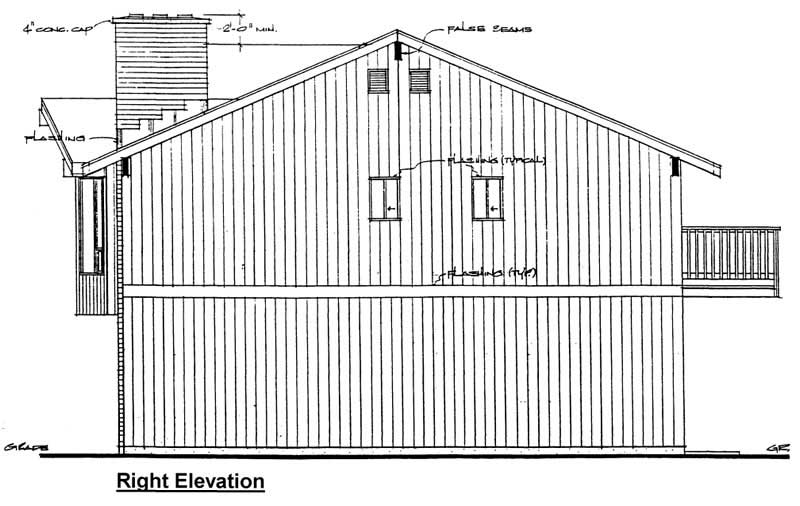

RIGHT ELEVATION
4-Bedroom, 2651 Sq Ft Ranch Home Plan - 177-1008 - Main Exterior
FRONT ELEVATION
LEFT ELEVATION
REAR ELEVATION
RIGHT ELEVATION

About Plan # 177-1008

About Plan # 177-1008

2651 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 48' 0" WIDTH 39' 0" DEPTH 2 GARAGE BAY

Entry from the double garage, or the well-sheltered portico, is through an attractive grade-level foyer…up an open staircase and you’re on the main floor. On this level you will notice the attractive corner fireplace and high-vaulted ceiling of the living room. The entire living area is accessible to the large covered deck which provides for an excellent relationship between indoor-outdoor living spaces.

Each plan set includes the following:

  • Electrical Layout
  • Elevations
  • Foundation
  • Typically Roof Trusses, a few A-Frames might have the Stick Frame, but mostly roof trusses
  • Wall Section
  • Building Sections
  • Material list available for purchase
  • Cabinet elevations will vary depending on the plan (plans with inside modeling will typically have the cabinet elevations)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

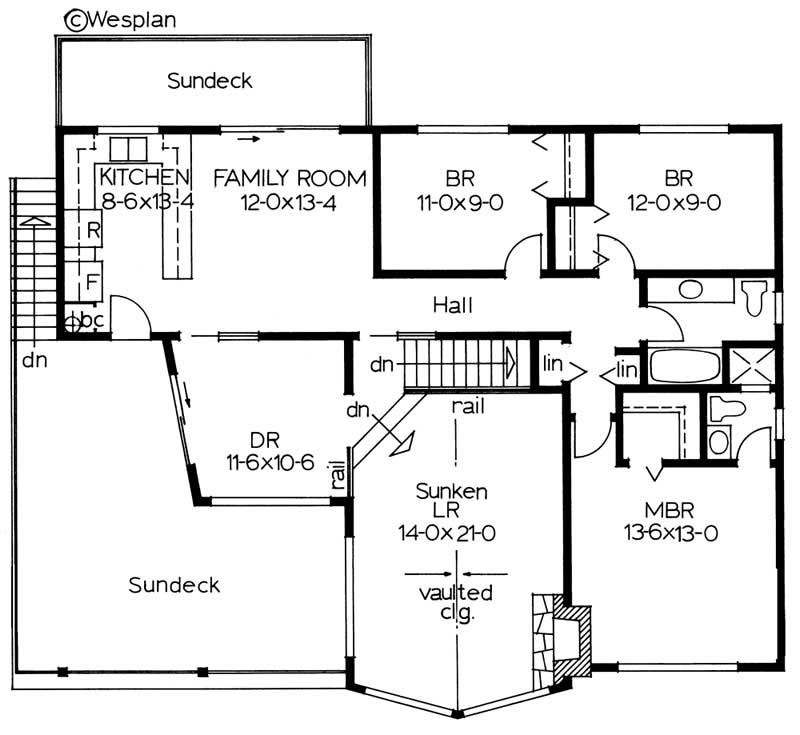

Home Plan: #177-1008 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #177-1008

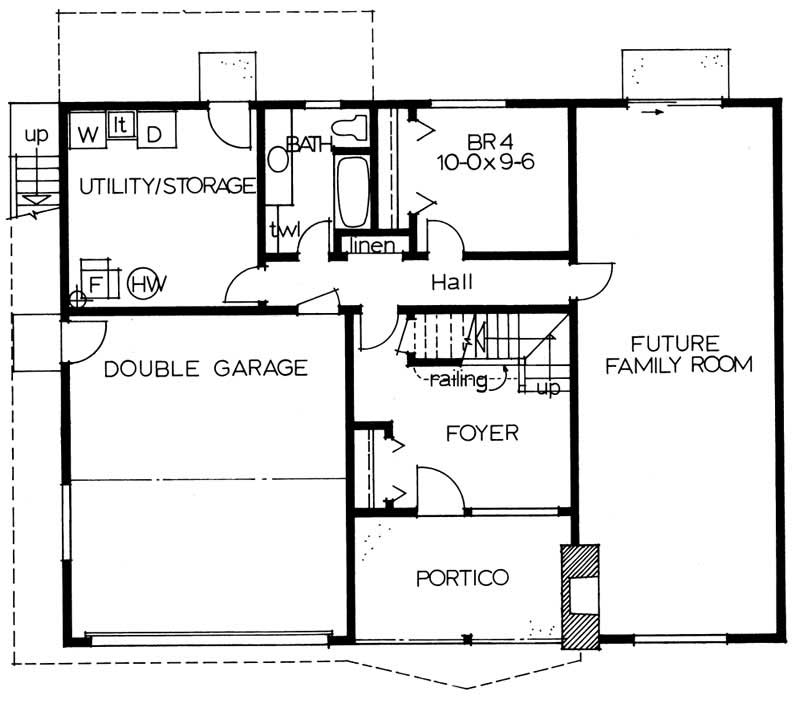

#177-1008 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #177-1008
Home Plan: #177-1008 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #177-1008
#177-1008 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #177-1008
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 177-1008
Floors:
2
Bedrooms:
4
Full Baths:
2

Square Footage

Heated Sq Feet:
2651
Main Floor:
1464
Unfinished Sq Ft:
Lower Floor:
1187

Dimensions

Width:
48' 0"
Depth:
39' 0"

Architectural Styles

Ranch
1 1/2 Story

Roof Pitch

5/12

Ceiling Height

8 Foot Ceiling

Special Feature

Fireplace

Garage Type

Under Main Floor Entry

Exterior Wall Framing

2x6

Additional Notes from Designer

No BCIN available. We advise you purchase a CAD and use a local engineer for BCIN Additional Use Licenses and Unlimited Use Licenses are available. After purchasing the plan, the designer will charge you separately for the additional licenses.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
