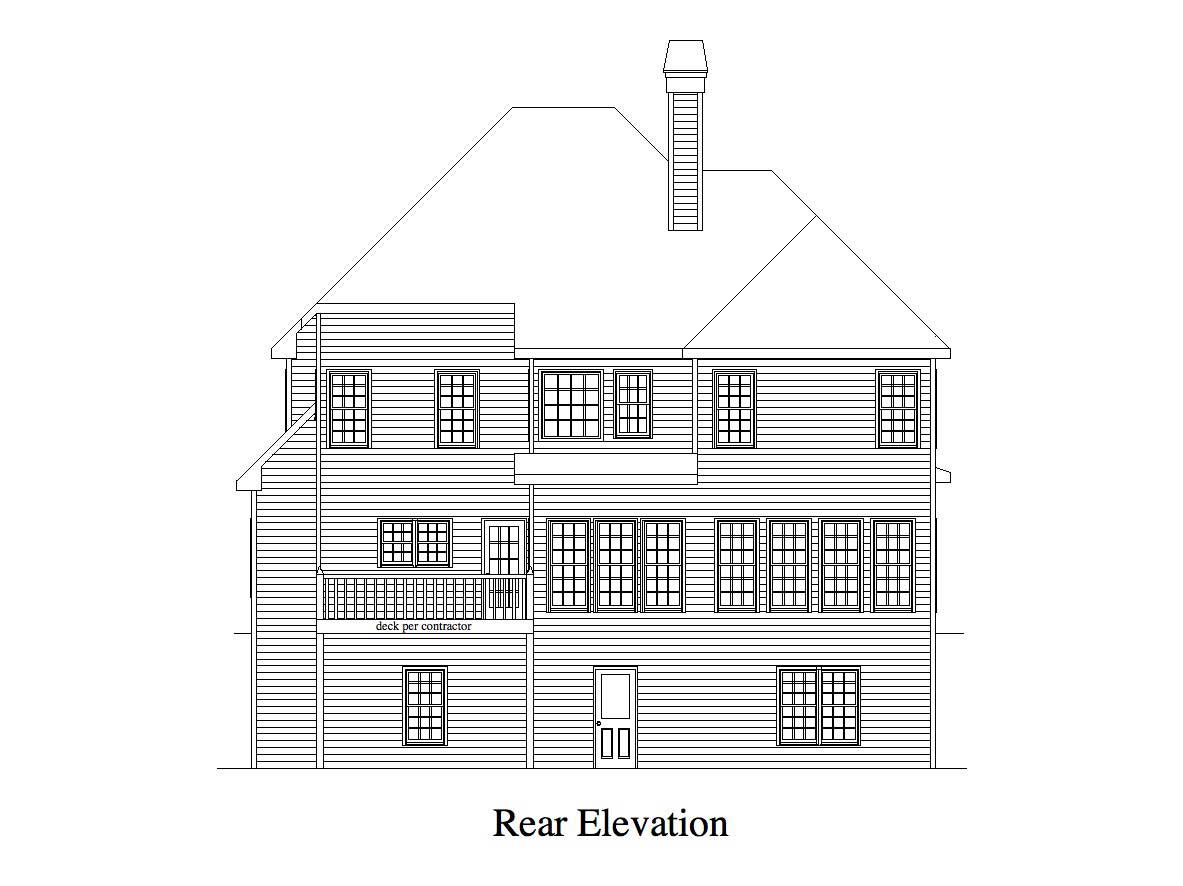

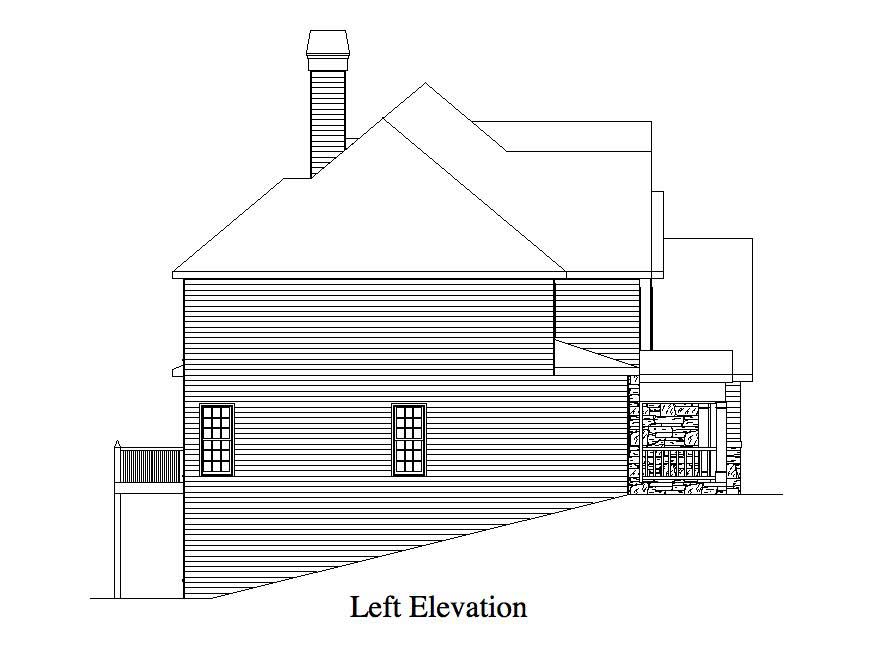

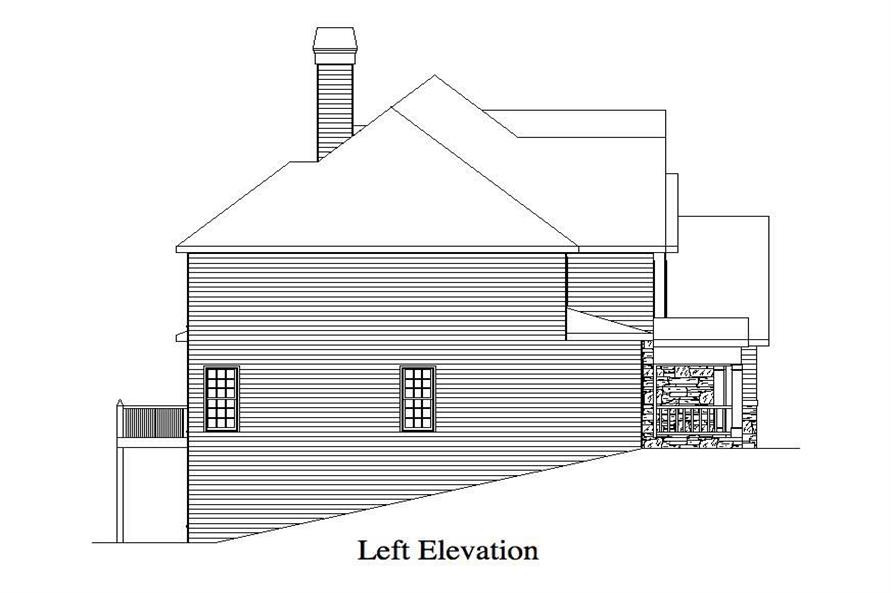

Home Plan Left Elevation

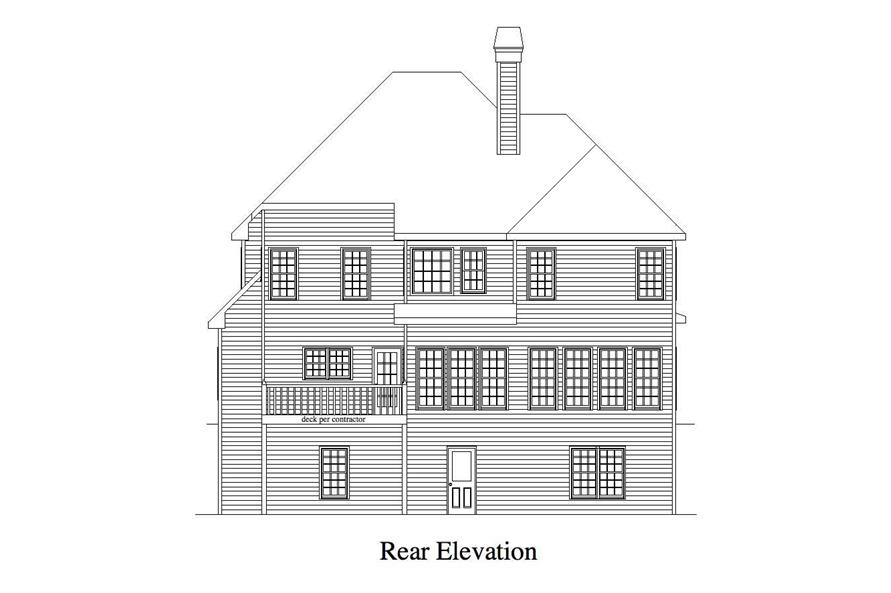

Home Plan Rear Elevation

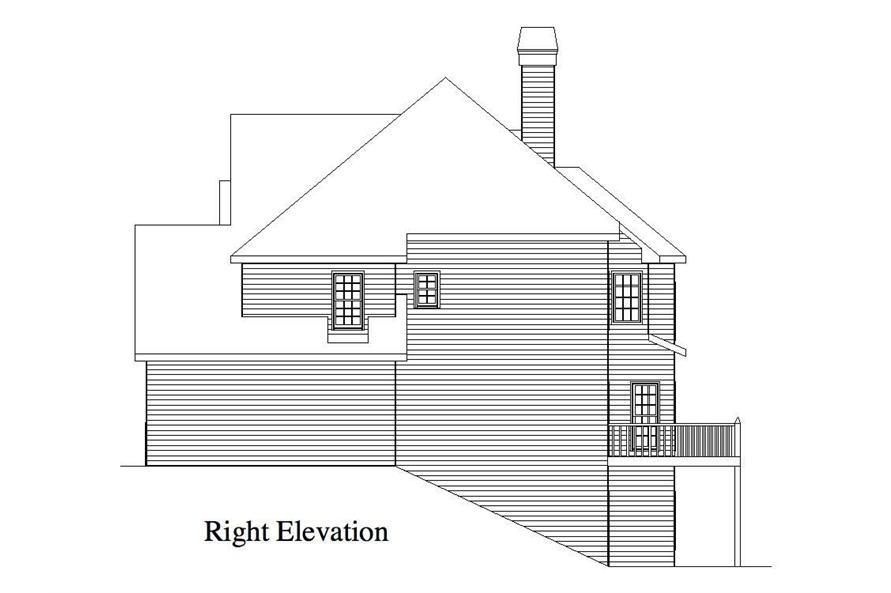

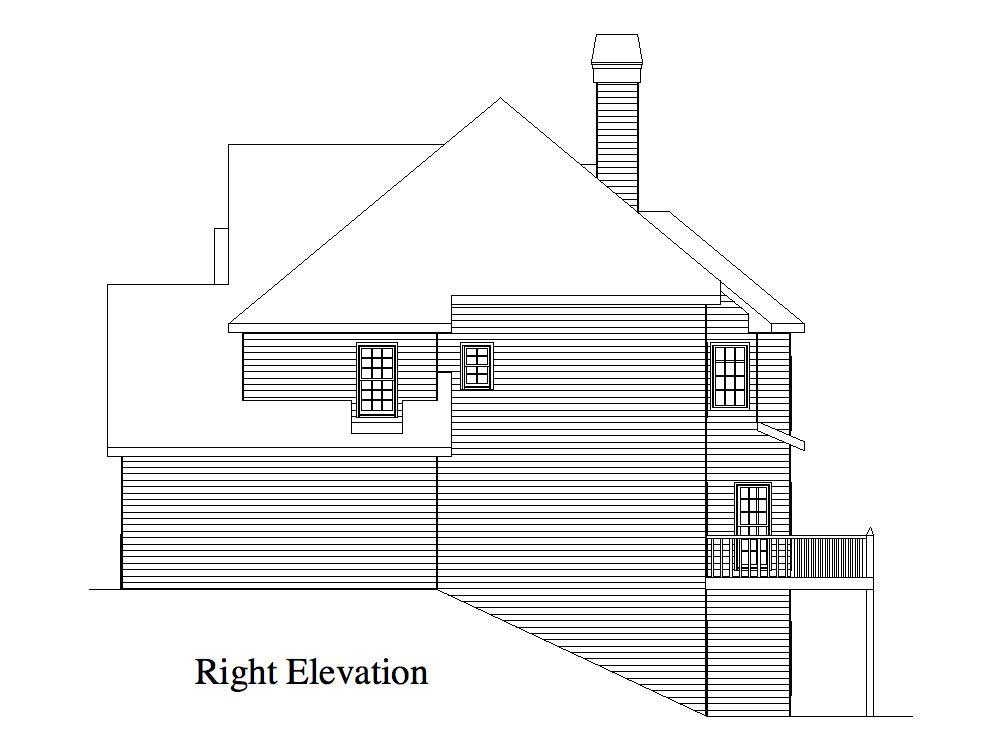

Home Plan Right Elevation

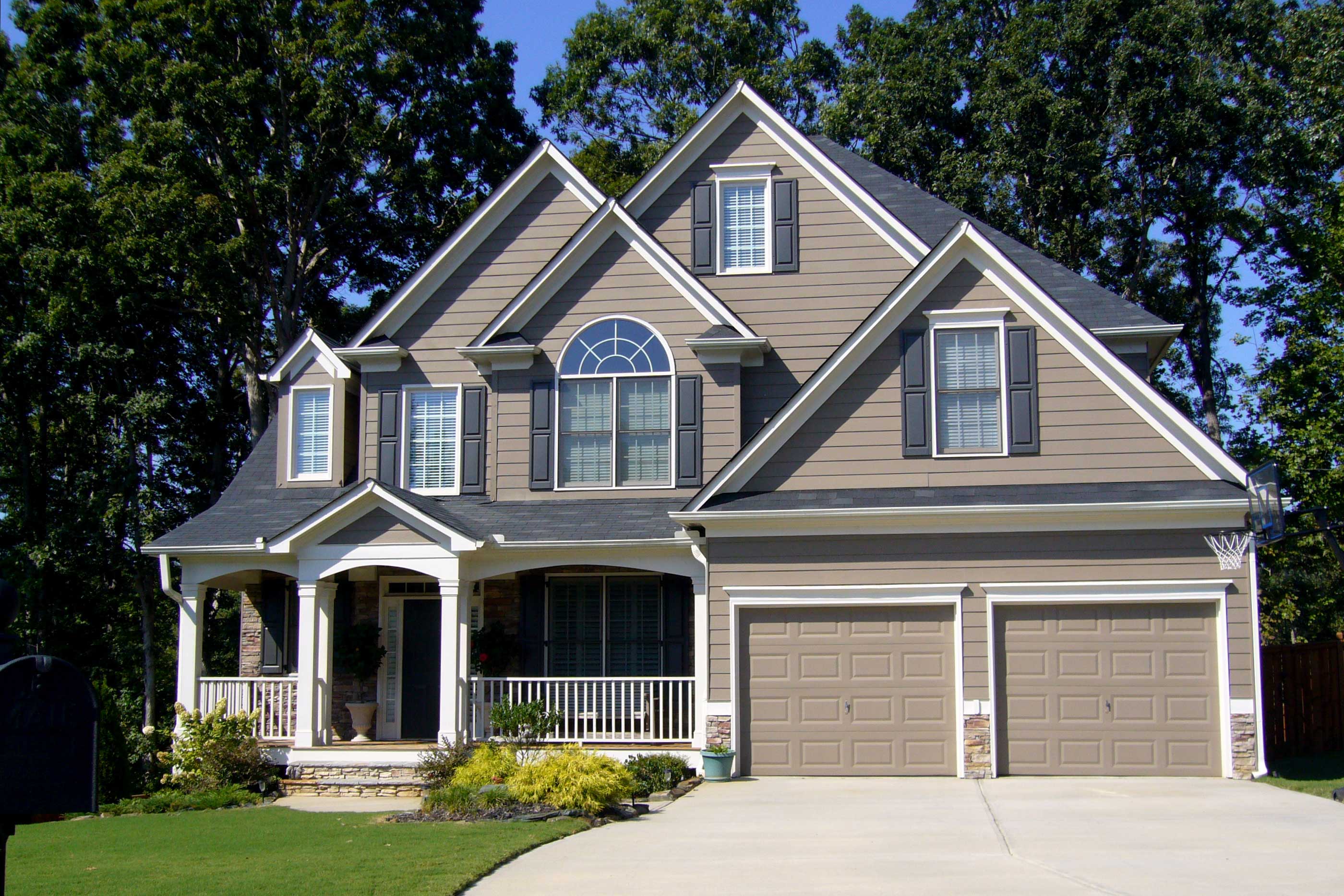

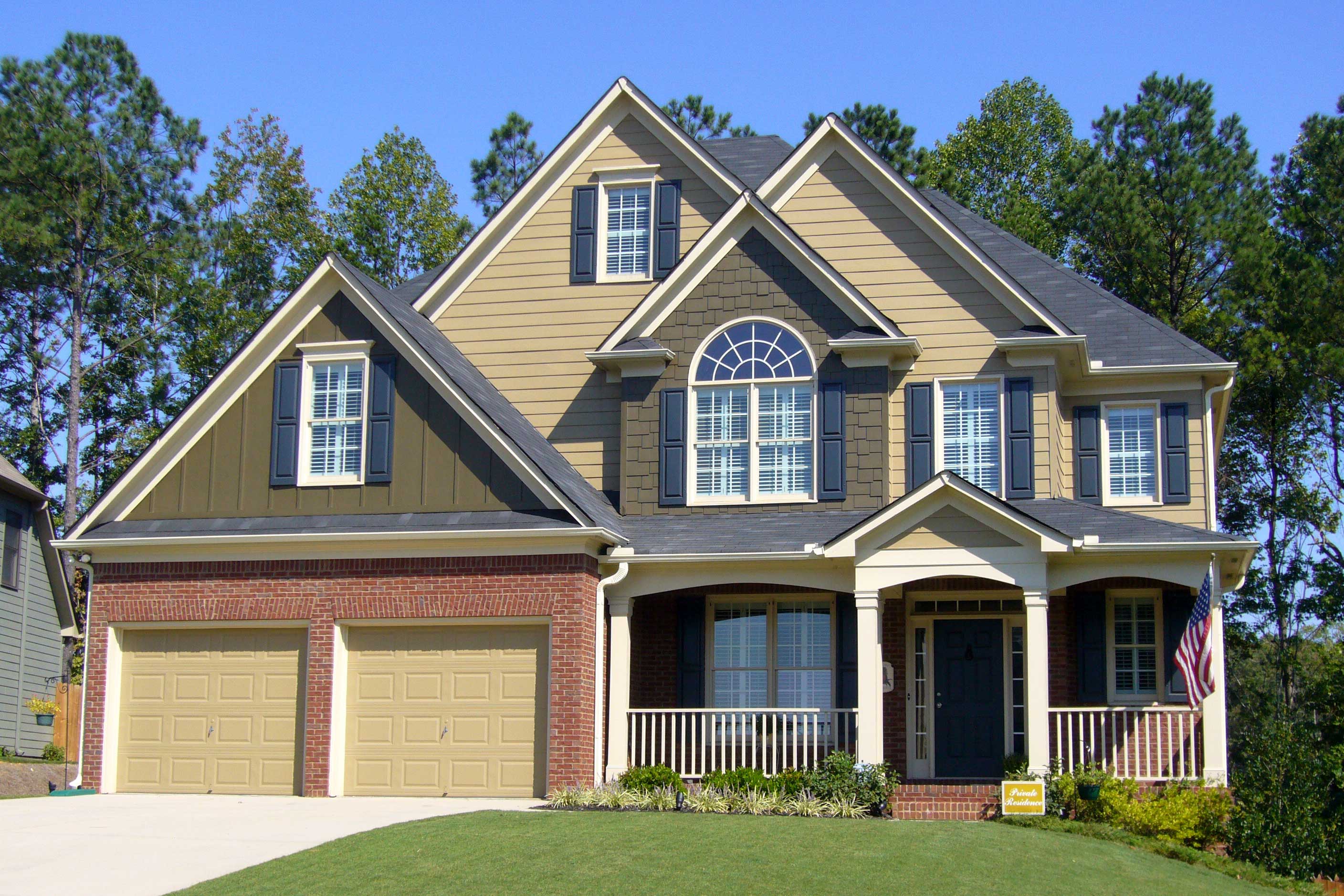

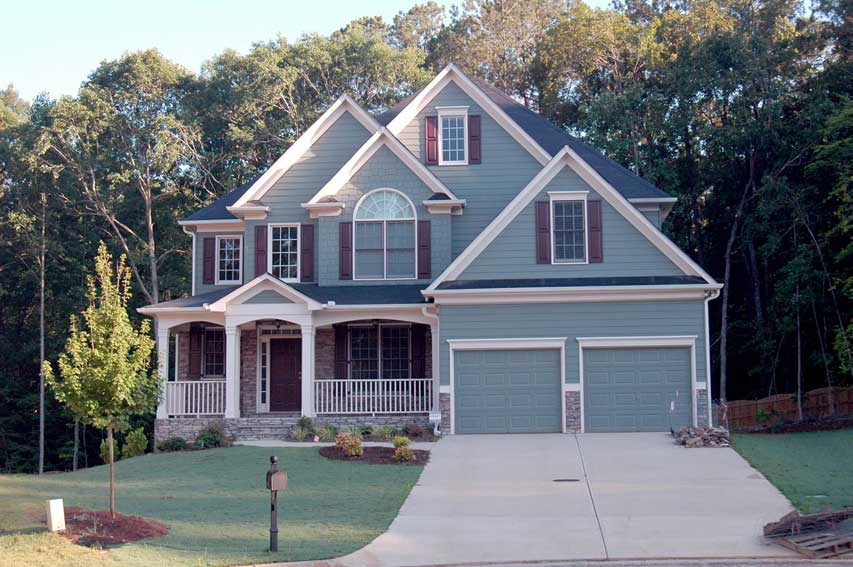

163-1001: Home Exterior Photograph-Front View
163-1001: Home Exterior Photograph-Front View
163-1001: Home Exterior Photograph-Front View
4-Bedroom, 2757 Sq Ft Country House Plan - 163-1001 - Front Exterior
Home Plan Front Elevation
Home Plan Left Elevation
Home Plan Rear Elevation
Home Plan Right Elevation
163-1001: Home Exterior Photograph-Front View
163-1001: Home Exterior Photograph-Front View
163-1001: Home Exterior Photograph-Front View

About Plan # 163-1001

About Plan # 163-1001

2757 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 46' 0" WIDTH 48' 6" DEPTH 2 GARAGE BAY

This affordable, country-style, two-story home enjoys such eye-catching curb appeal! The classic front porch and gable roof lines create an intriguing and pleasing exterior. From the porch, enter through the main door with its attractive sidelights and into the gracious, double-height foyer. From the foyer, head to the large family room with its wall of windows facing the rear yard. A large, see-through fireplace separates the family room from the breakfast room and keeping room — both of which have been laid out in an open floor plan design along with the chef-worthy kitchen. The kitchen includes an island with an eating bar for meals on-the-go as well as a walk-in pantry. Looking for alfresco dining? Only steps away is the door leading out to the deck. For more formal occasions, entertain in the dining room.

Upstairs, the master suite is truly impressive. From the "master foyer," head to the master bath to unwind in the large tub or shower. The his-and-her walk-in closets provide plenty of room for clothes and accessories. The master bedroom itself has a tray ceiling and rear views. There are three additional bedrooms and an additional bath on the second floor. The third bedroom includes a study area. The laundry room is conveniently located on the second floor.

Looking for additional space? The unfinished basement could be converted into a game room, additional bedroom, and storage.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.

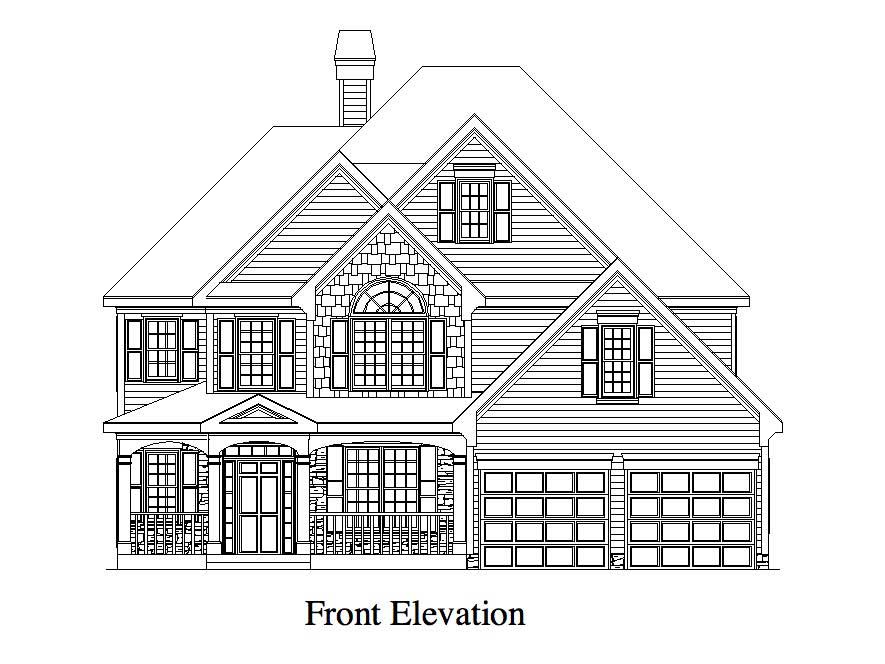

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Electrical Layout (location of light fixtures, switches, and fans) - Although may be available for an additional charge.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

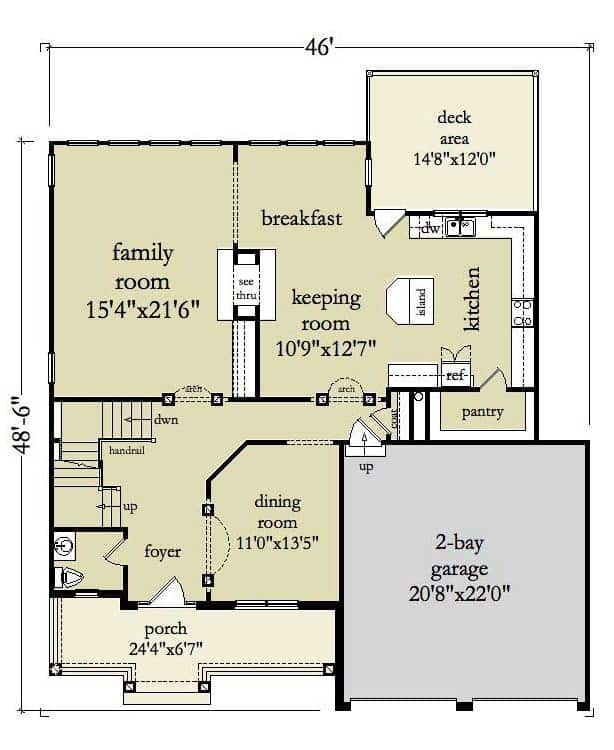

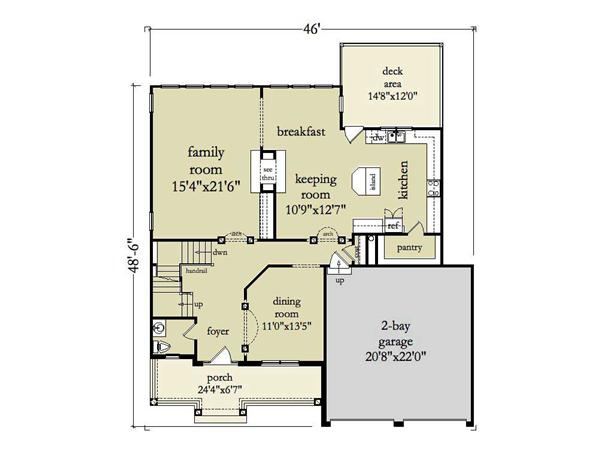

Home Plan: #163-1001 Floor Plan First Story - first story Floor Plan Main Level of Country Plan #163-1001

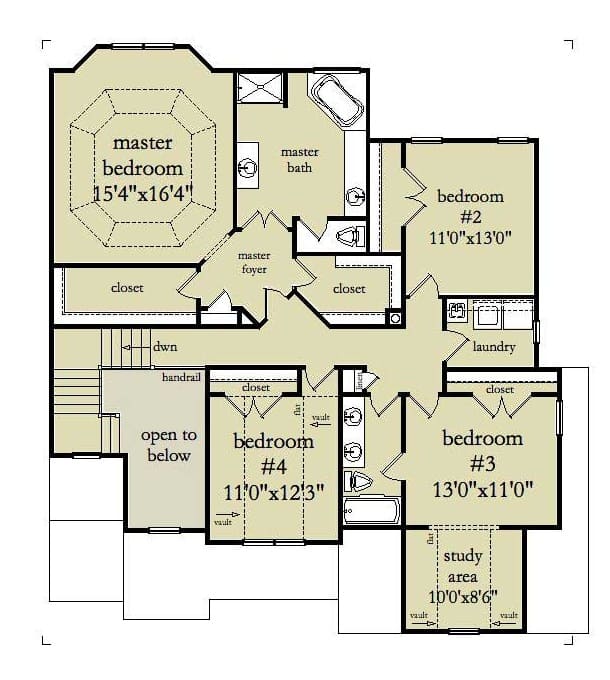

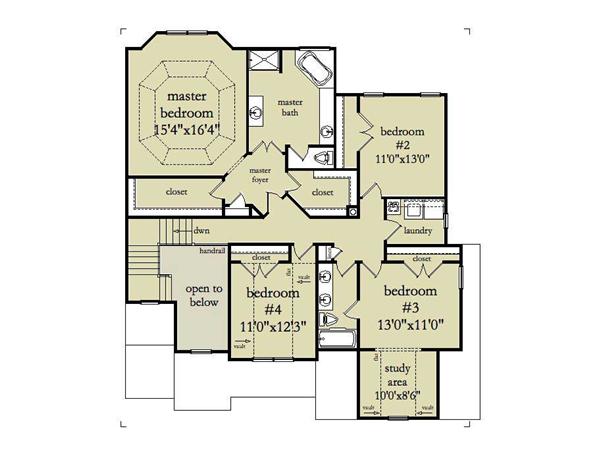

#163-1001 Floor Plan Second Story - second story Floor Plan Upper Level of Country Plan #163-1001

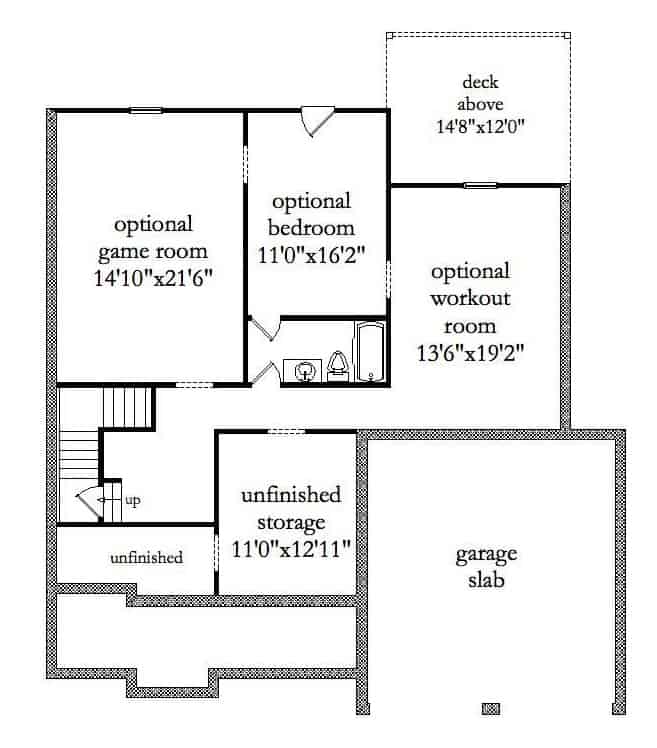

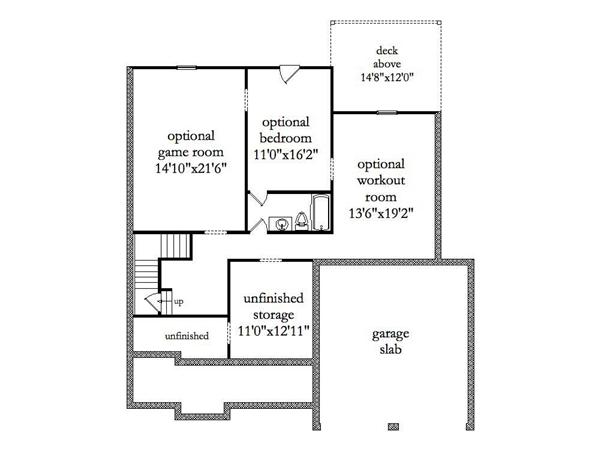

#163-1001 Floor Plan Basement - basement Floor Plan Basement of Country Plan #163-1001
