About Plan # 137-1744

About Plan # 137-1744

810 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 24' 0" WIDTH 24' 0" DEPTH 0 GARAGE BAY

This A-frame style home includes one bed and one bath with a large loft upstairs.

Each plan set includes the following:

  • All 4 elevations
  • Floor plan
  • Foundation plan
  • Sections
  • Interior elevations
  • Detail page

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

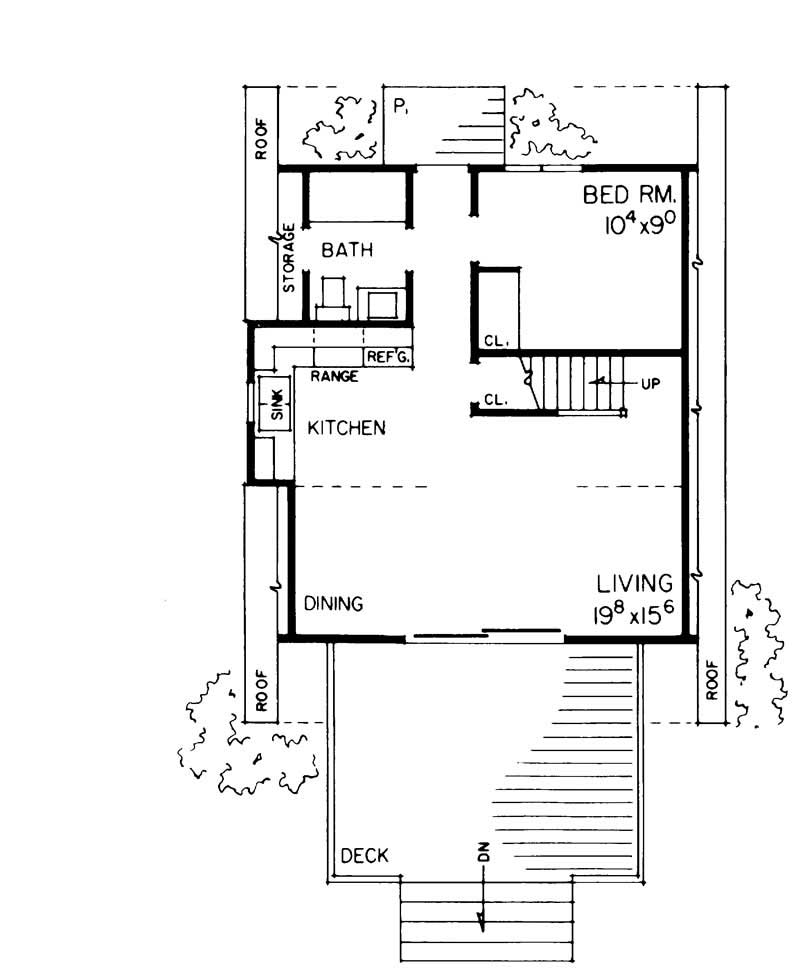

Home Plan: #137-1744 Floor Plan First Story - main Floor Plan First Story of A Frame Plan #137-1744

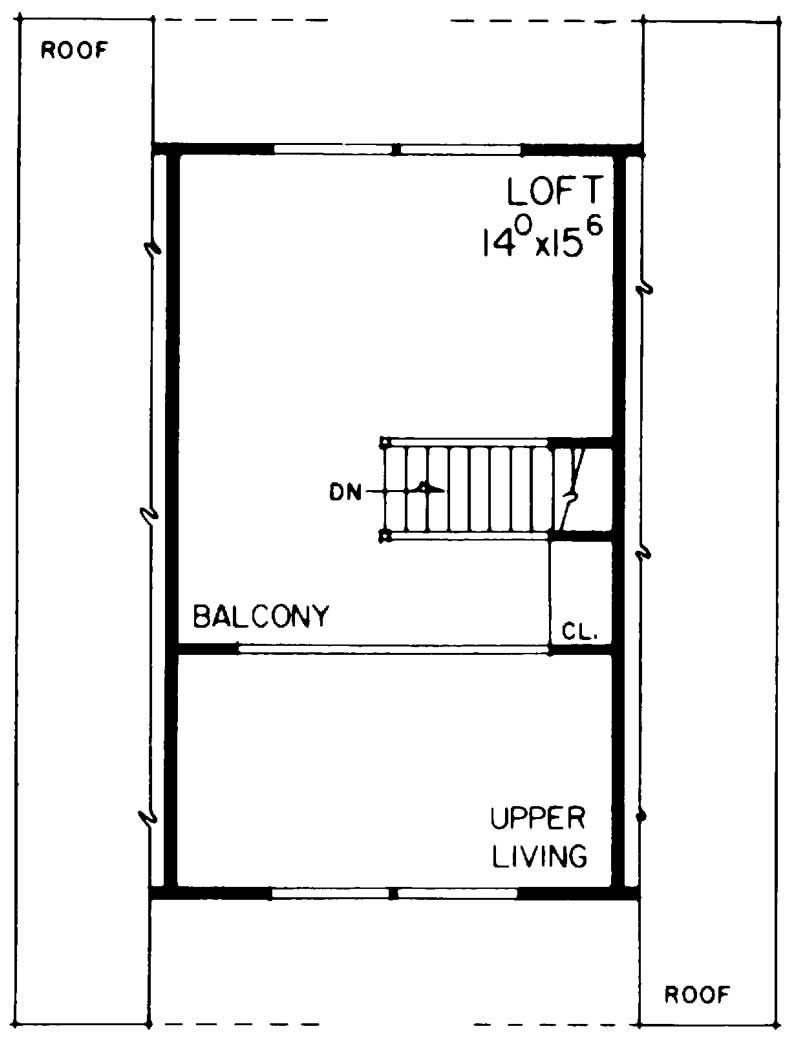

#137-1744 Floor Plan Second Story - second Floor Plan Second Story of A Frame Plan #137-1744
Home Plan: #137-1744 Floor Plan First Story - main Floor Plan First Story of A Frame Plan #137-1744
#137-1744 Floor Plan Second Story - second Floor Plan Second Story of A Frame Plan #137-1744
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 137-1744
Floors:
2
Bedrooms:
1
Full Baths:
1

Square Footage

Heated Sq Feet:
810
Main Floor:
576
Upper Floor:
234
Unfinished Sq Ft:

Dimensions

Width:
24' 0"
Depth:
24' 0"
Ridge Height:
22' 0"

Architectural Styles

Contemporary
A Frame
Small House Plans

Roof Pitch

12/12

Special Feature

Loft
Open Floor Plan

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

Plans from this designer could take up to 14 days to fulfill, regardless of the plan package that was ordered. Please Note: The plans by this designer DO NOT include electrical plans or electrical layout plans. PLEASE NOTE: For this designer, if you are ordering a CAD, the wait time could be 2-3 weeks, depending on the plan. If you need it sooner, please contact us to find out the wait time. Thank you!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
