Home>>  Search Results>>  Plan Details
Search entire site

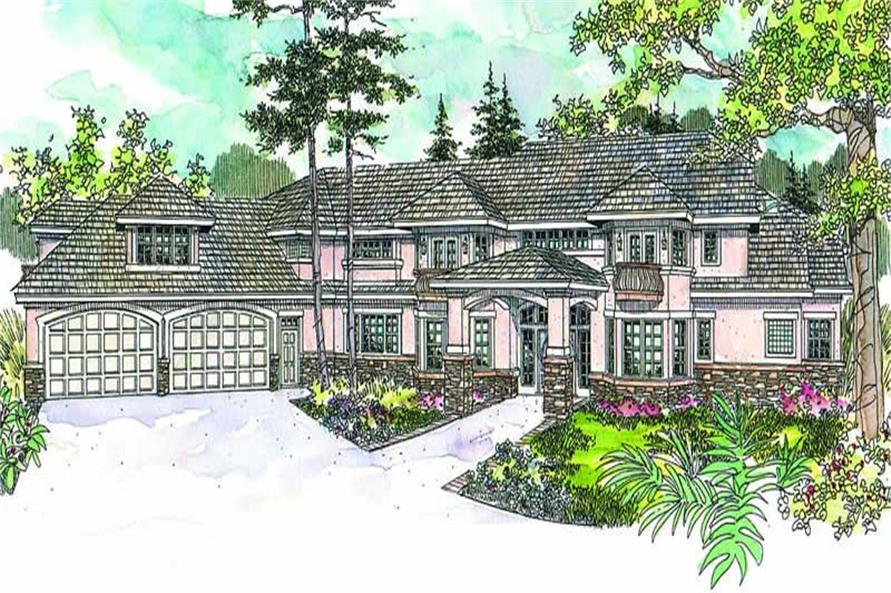

Main image for house plan # 13139
Photographs may reflect modified designs. Copyright held by designer.
View Additional Images (click image to enlarge)

House Plan # 108-1634

Best Price Guaranteed

Floors: 2
Living Sq Feet: 5389
Bedrooms: 3
Full Baths: 2
Half Baths: 0
Garage Bays: 3
Width: 141' 10"
Depth: 76' 9"
ADD TO CART

View All Price Options

Ask a Question

      Houzz   ShareThis


HOUSE PLAN DESCRIPTION

The Jacksonville home plan is a two story, mediterranean style house plan with 5389 total living square feet. This mediterranean home plan greets you with arches & stucco that create a sunny look, the addition of wrought iron & stone add a european flavor. Windows fill most of the rear wall in the two-story, barrel-vaulted living room at the home's core. The elegant and spacious owners' suite fills most of the right wing, and has private patio.

Reverse Plan Images
FLOOR PLANS

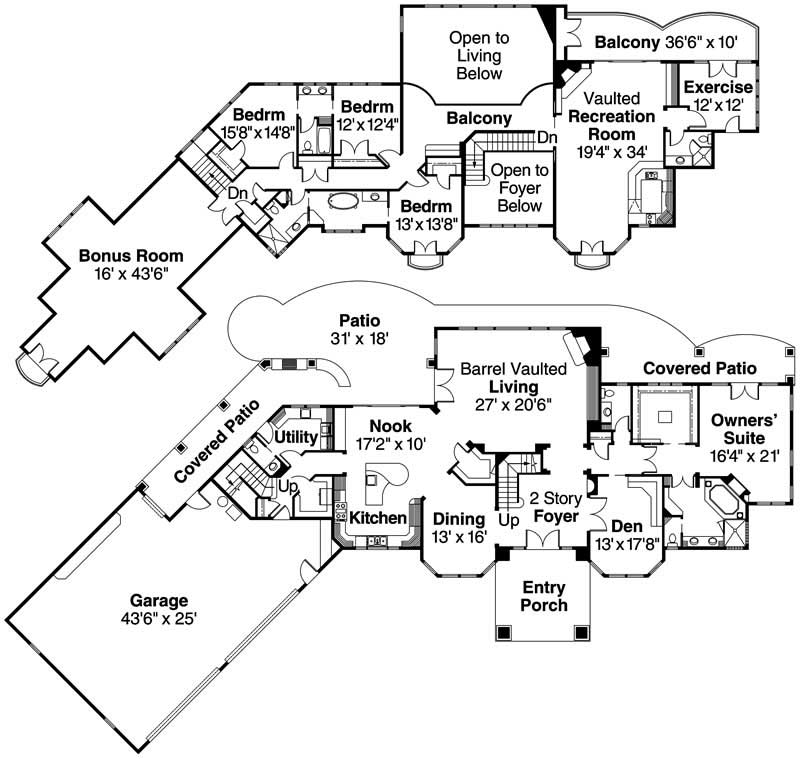

Home Plan : # 108-1634 MAIN FLOOR PLAN
MAIN FLOOR PLAN
Copyright held by designer.

PLAN SPECS & FEATURES

Summary Information
House Plan: #108-1634
Floors: 2
Bedrooms: 3
Full Baths: 2
Half Baths: 0
Garage Bays: 3
DIMENSIONS
Width: 141' 10"
Depth: 76' 9"
SQUARE FOOTAGE
Heated Sq Feet: 5389
Main Floor: 3112
Upper Floor: 2277


Architectural Styles
European
Mediterranean
Luxury

Ceiling Height
9 Foot Ceiling

Framing
Exterior Wall Framing:    2x6

Exterior Wall Material
Rock/Stone
Vinyl Siding

Garage Type
Attached Garage
Front Entry

Roof Pitch
9/12


PRICING OPTIONS

ADD TO CART

You can select your plan package and options once the plan has been added to the cart

Plan Package and Pricing Help
PLAN PACKAGES: HOUSE PLAN # 108-1634
Minimum Construction Package (5 Sets) $1540.00
Standard Construction Package (8 Sets) $1650.00
Reproducible Master $2040.00
PDF File Set $2420.00
CAD File $3575.00
Study Set (Construction Bid Set) $1235.00
FOUNDATION OPTIONS
Crawlspace $0.00
OTHER OPTIONS / ADD-ONS
Right Reading Reverse $500.00
Additional Set(s), Each $90.00
