3-Bedroom, 1011 Sq Ft Small House Plans Plan with Walk-in Pantry

Main image for house plan # 13103

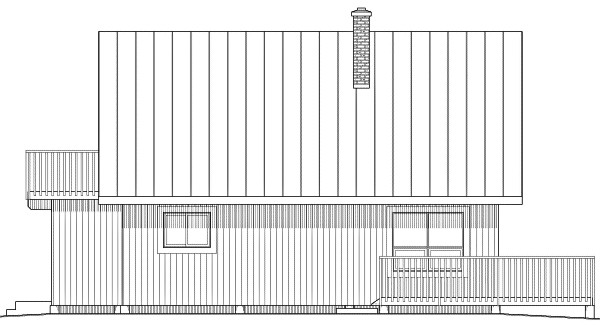

LEFT ELEVATION

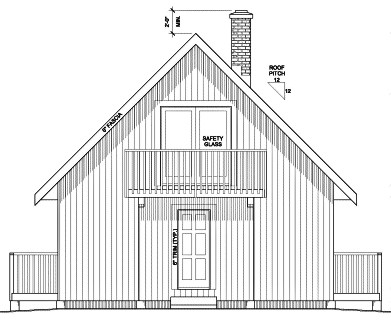

REAR ELEVATION
RIGHT ELEVATION
3-Bedroom, 1011 Sq Ft Small House Plans - 177-1023 - Main Exterior
LEFT ELEVATION
REAR ELEVATION
RIGHT ELEVATION

About Plan # 177-1023

About Plan # 177-1023

1011 SQUARE FEET 3 BEDROOMS 0 FULL BATH 1 HALF BATH
2 FLOOR 32' 0" WIDTH 46' 0" DEPTH 0 GARAGE BAY
Nothing was missed when this charming little A-frame was designed. Starting at the rear entrance...there are a stacked washer and dryer, a large closet for coats and skis and even a bench to make putting on winter footwear easier. Two good-sized bedrooms with plenty of closet space are in close proximity to the family bathroom. A very roomy family area at the front features an island kitchen and a spectacular vaulted ceiling. Access to a spacious deck is made easy via French doors in the dining room. The open staircase leads you up to the sleeping loft which can be either closed off as shown or open to the living area below.

Each plan set includes the following:

  • Electrical Layout
  • Elevations
  • Foundation
  • Typically Roof Trusses, a few A-Frames might have the Stick Frame, but mostly roof trusses
  • Wall Section
  • Building Sections
  • Material list available for purchase
  • Cabinet elevations will vary depending on the plan (plans with inside modeling will typically have the cabinet elevations)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

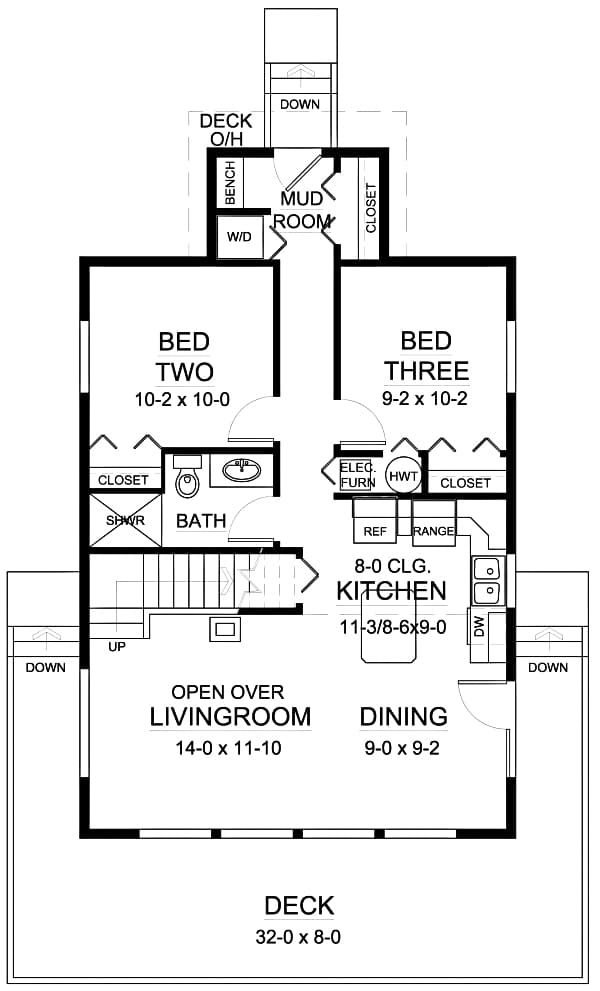

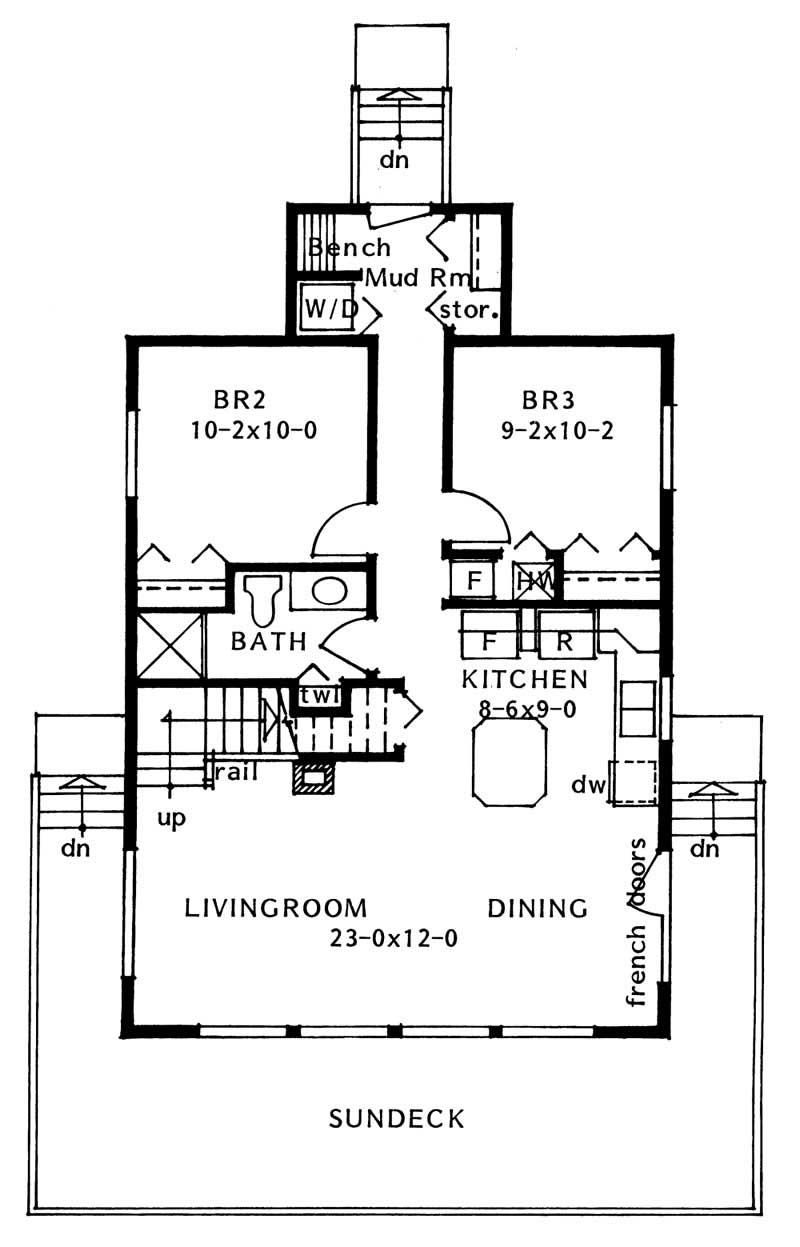

Home Plan: #177-1023 Floor Plan First Story - main Floor Plan First Story of Small House Plans #177-1023

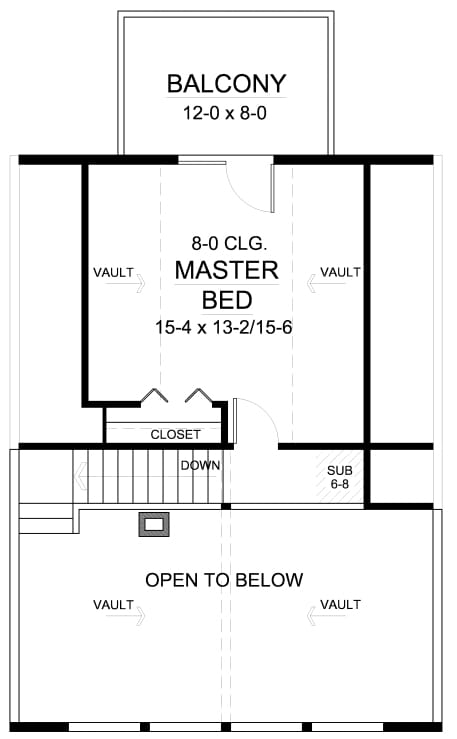

#177-1023 Floor Plan Second Story - second Floor Plan Second Story of Small House Plans #177-1023
Home Plan: #177-1023 Floor Plan First Story - main Floor Plan First Story of Small House Plans #177-1023
#177-1023 Floor Plan Second Story - second Floor Plan Second Story of Small House Plans #177-1023
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 177-1023
Floors:
2
Bedrooms:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
1011
Main Floor:
768
Upper Floor:
243
Unfinished Sq Ft:

Dimensions

Width:
32' 0"
Depth:
46' 0"

Architectural Styles

Vacation Homes
Small House Plans

Exterior Wall Material

Vinyl Siding
Wood Siding

Roof Pitch

Other

Ceiling Height

8 Foot Ceiling

Special Feature

Dining Room

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
