European Houseplans Front Elevation.
4-Bedroom, 3678 Sq Ft European House Plan - 164-1077 - Front Exterior

About Plan # 164-1077

About Plan # 164-1077

3678 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 87' 2" WIDTH 54' 5" DEPTH 2 GARAGE BAY

A Two story grand foyer sets the tone for the rest of the home in these grand European House Plans. An elegant master suite with a raised 11' ceiling, along with the Formal living and dining rooms carry this sense of class even further. Add a balcony and a spacious kitchen and breakfast area, and you have a home the entire family can enjoy.

Each plan set includes the following:

  • Cover sheet
  • Foundation plan
  • Floor plan
  • Electrical layout
  • Exterior elevations
  • Building sections
  • Specifications
  • Cabinet details
  • Roof plan
  • Miscellaneous details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

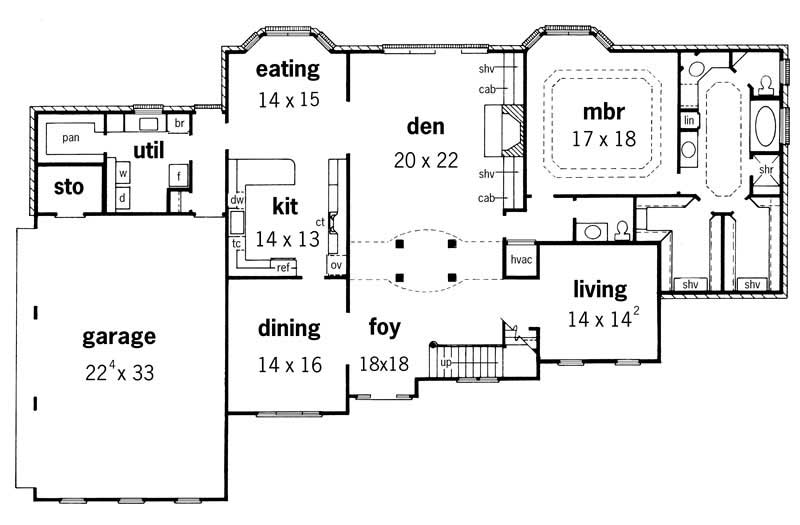

Home Plan: #164-1077 Floor Plan First Story - main Floor Plan First Story of European Plan #164-1077

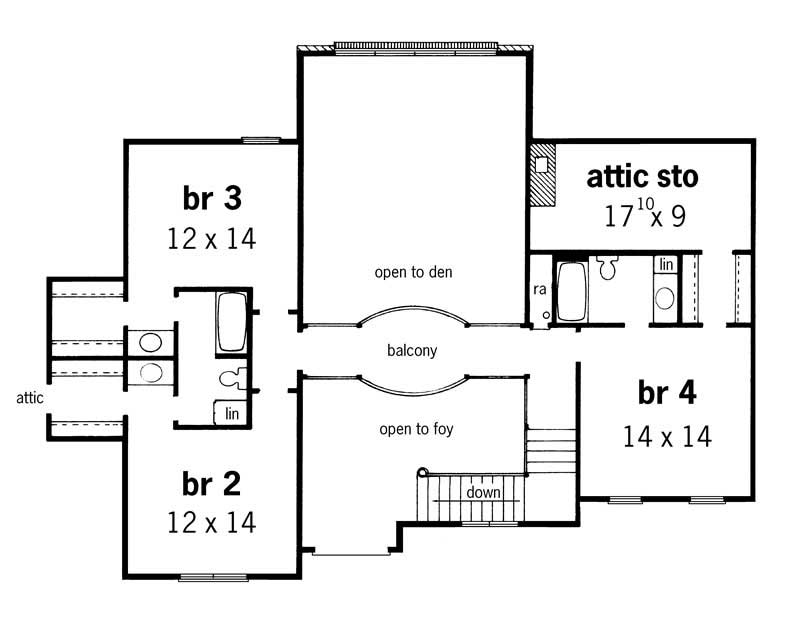

#164-1077 Floor Plan Second Story - upper Floor Plan Second Story of European Plan #164-1077
Home Plan: #164-1077 Floor Plan First Story - main Floor Plan First Story of European Plan #164-1077
#164-1077 Floor Plan Second Story - upper Floor Plan Second Story of European Plan #164-1077
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 164-1077
Floors:
2
Bedrooms:
4
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
3678
Main Floor:
2620
Upper Floor:
1058
Unfinished Sq Ft:
Garage :
726

Dimensions

Width:
87' 2"
Depth:
54' 5"
Ridge Height:
33'-0' 0"

Architectural Styles

European

Exterior Wall Material

Brick

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Mud Room
Main Level Laundry
Split Bathroom
Storage
Vaulted Ceilings
Balcony

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Building Lot Type

Flat Site

Kitchen Features

Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
