3-Bedroom, 1626 Sq Ft Mediterranean Plan with Walk In Closet

Main image for house plan # 13101

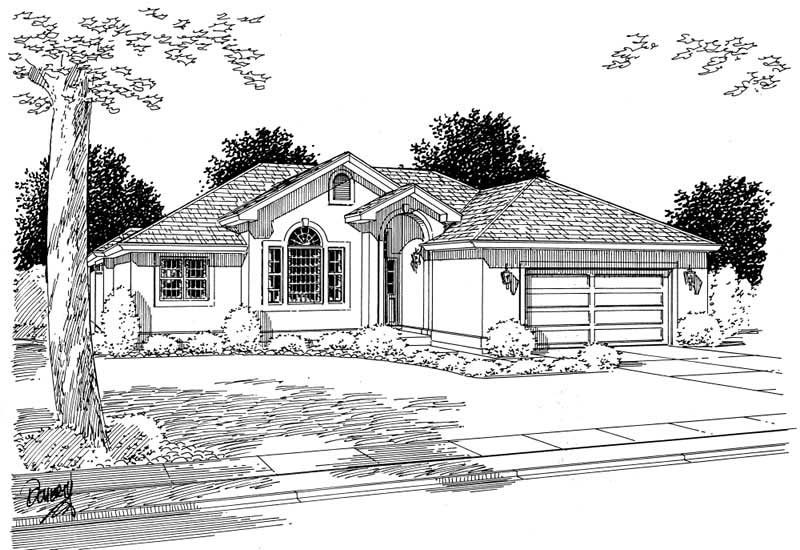

FRONT ELEVATION

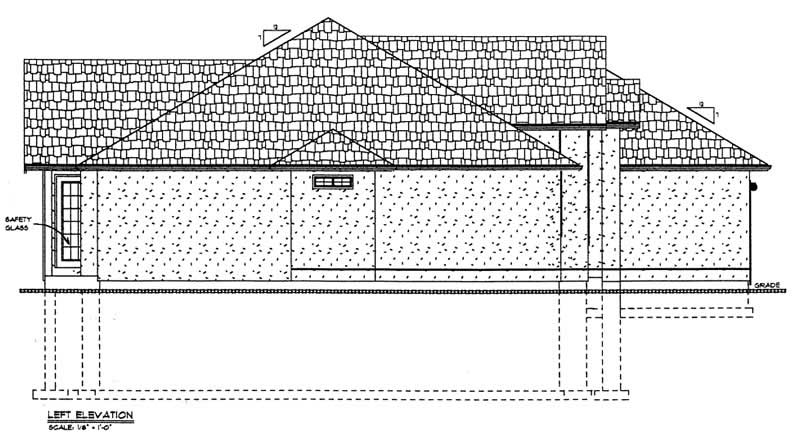

LEFT ELEVATION

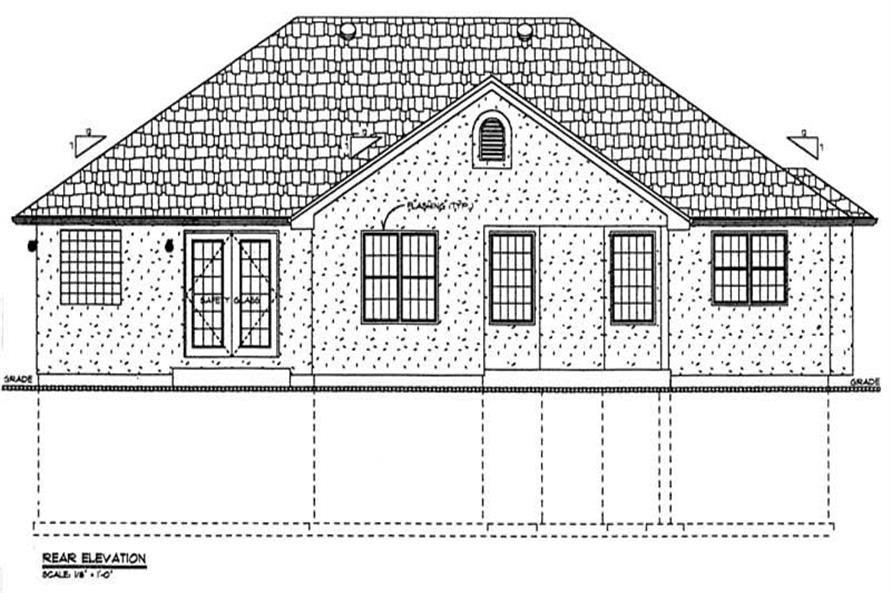

REAR ELEVATION

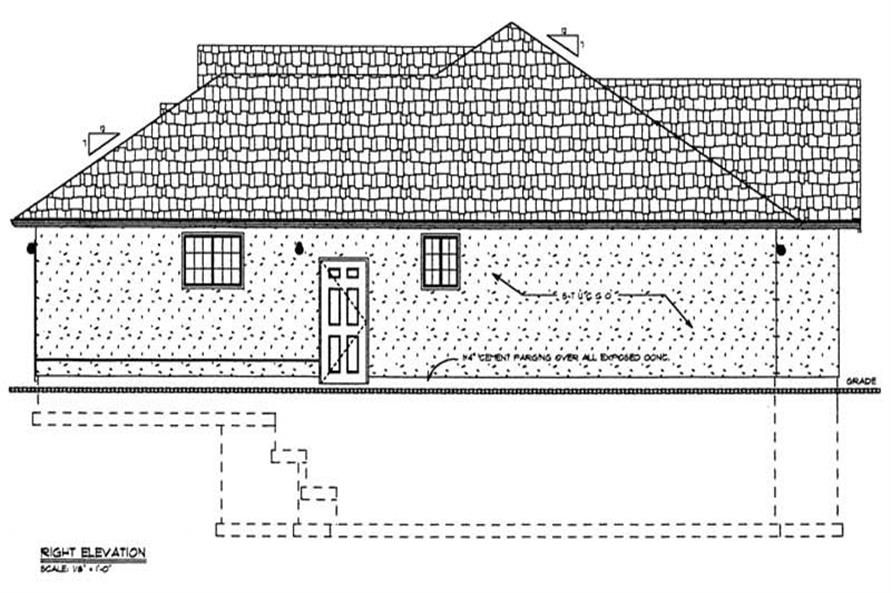

RIGHT ELEVATION

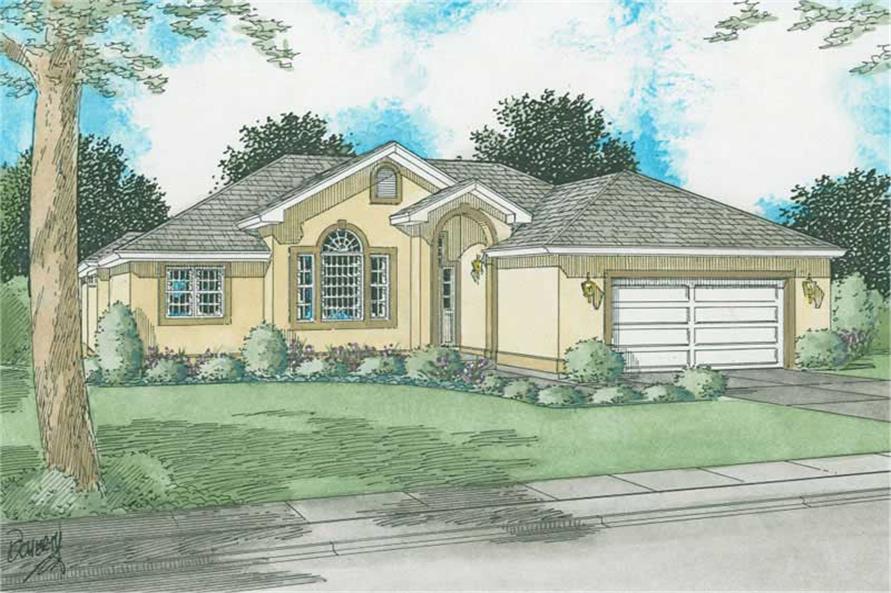

3-Bedroom, 1626 Sq Ft Mediterranean Home Plan - 177-1022 - Main Exterior
FRONT ELEVATION
LEFT ELEVATION
REAR ELEVATION
RIGHT ELEVATION

About Plan # 177-1022

About Plan # 177-1022

1626 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 52' 0" WIDTH 52' 0" DEPTH 2 GARAGE BAY
Beautiful on the outside, beautiful and functional on the inside, best describes this design. Large rooms and plenty of closet space are highlights of this plan, and the spaciousness is further enhanced by open planning and volume ceilings. The lovely master suite is off by itself, well separated from the other two bedrooms, just look at that well-appointed ensuite bath. The central kitchen is close to the formal dining room and just a few convenient steps away from the laundry and garage. Fine finishing ideas, such as decorative columns, complete the interior appeal.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

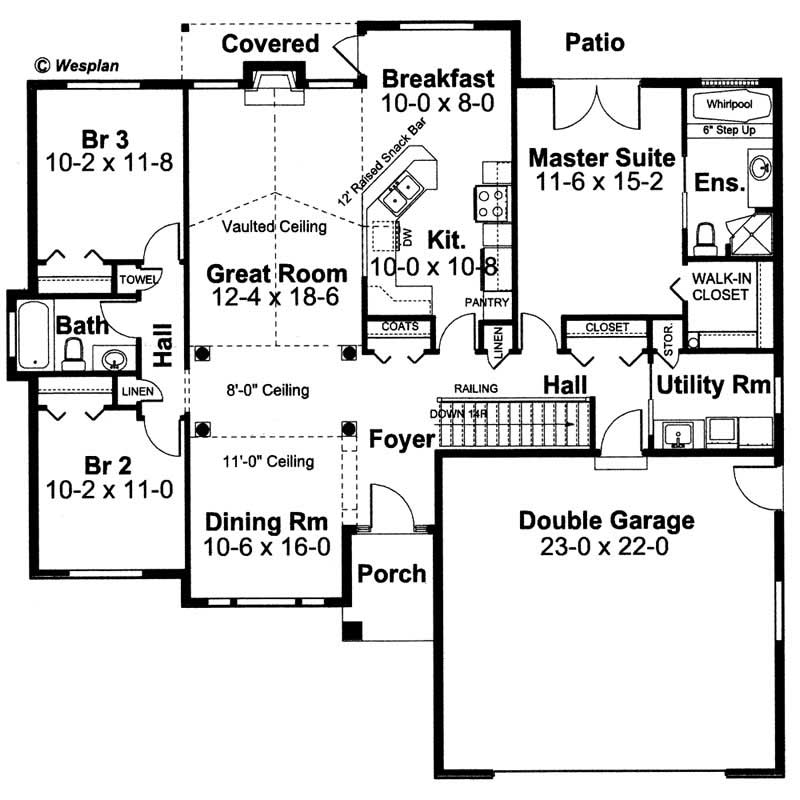

Home Plan: #177-1022 Floor Plan First Story - main Floor Plan First Story of Mediterranean Plan #177-1022
Home Plan: #177-1022 Floor Plan First Story - main Floor Plan First Story of Mediterranean Plan #177-1022
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 177-1022
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1626
Main Floor:
1626
Unfinished Sq Ft:

Dimensions

Width:
52' 0"
Depth:
52' 0"

Architectural Styles

Mediterranean

Exterior Wall Material

Stucco

Roof Pitch

7/12

Ceiling Height

8 Foot Ceiling

Special Feature

Dining Room

Garage Type

Attached Garage

Exterior Wall Framing

2x6

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please send us a mod request to receive a quote.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
