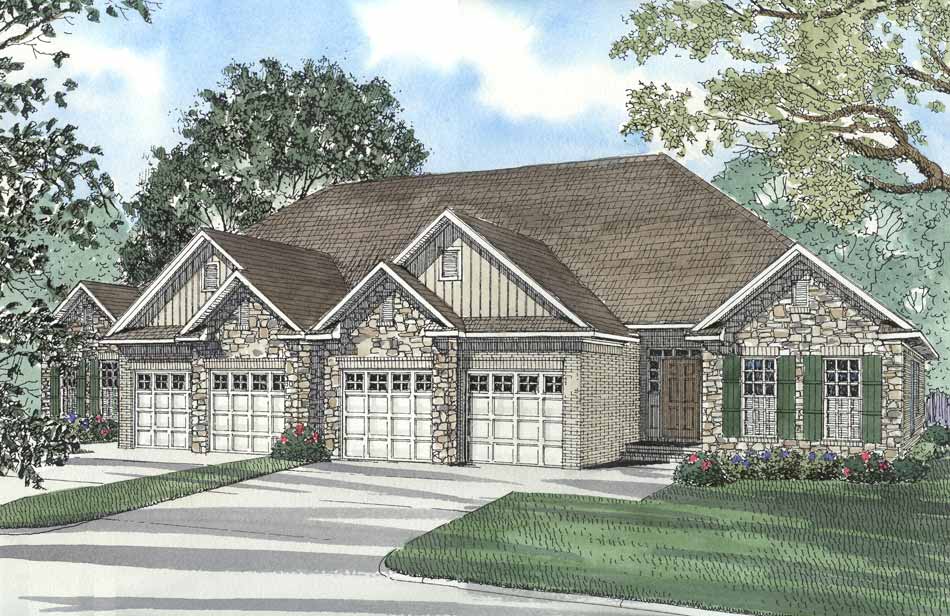

Color rendering of Multi-Unit home plan (ThePlanCollection: House Plan #153-1585)

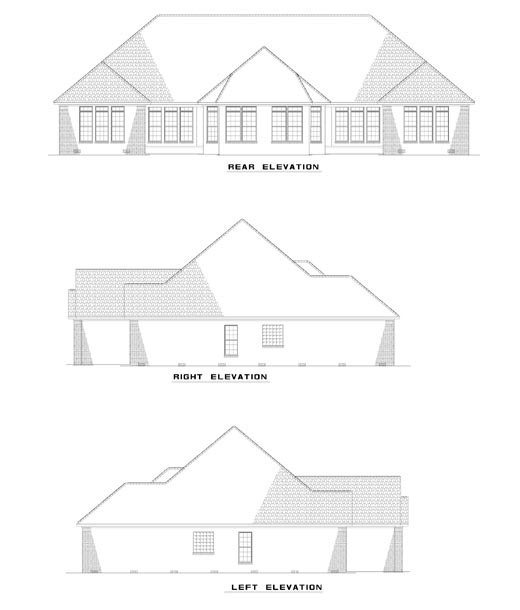

153-1585: Home Plan Rear Elevation

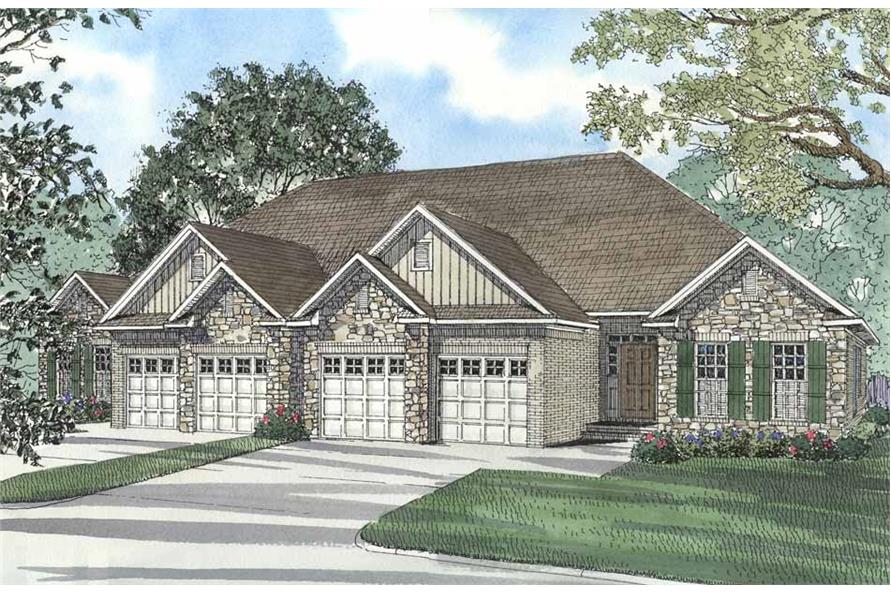

3-Bedroom, 1520 Sq Ft Per Unit Duplex Home Plan - 153-1585 - Main Exterior

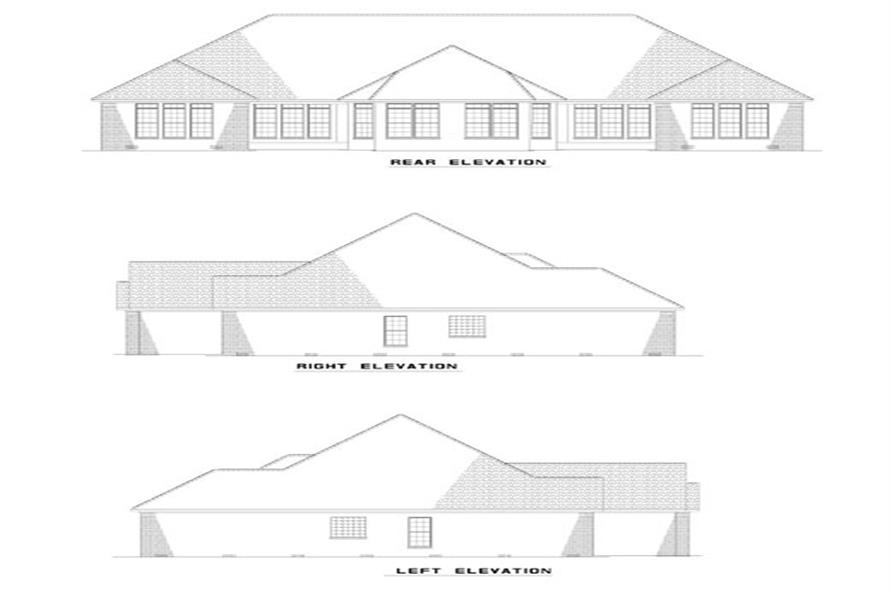

153-1585: Home Plan Rear Elevation

About Plan # 153-1585

About Plan # 153-1585

1520 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 81' 0" WIDTH 63' 2" DEPTH 2 GARAGE BAY

This attractive duplex plan with traditional details (Multi-Family Plan #153-1585) has 1520 square feet of living space per unit. The 1-story floor plan includes 3 bedrooms, 2 bathrooms, and a 2-car garage per unit.

  • Graced with rock, siding, and shutters the exteriors European styling gives way to an elegant interior.
  • The foyer boasts a 10-foot-high ceiling.
  • The front bedroom includes built-in bookshelves ideal for a home office or perhaps a study.
  • In the master suite, the master bedroom has a 10-foot-tall boxed ceiling and enjoys its own master bathroom featuring a corner tub, separate shower, water closet, and a spacious walk-in closet.
  • The double-car garage is large enough to include storage space.

For a similar Multi- Family House Plan, check out House Plan #153-1623.

Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

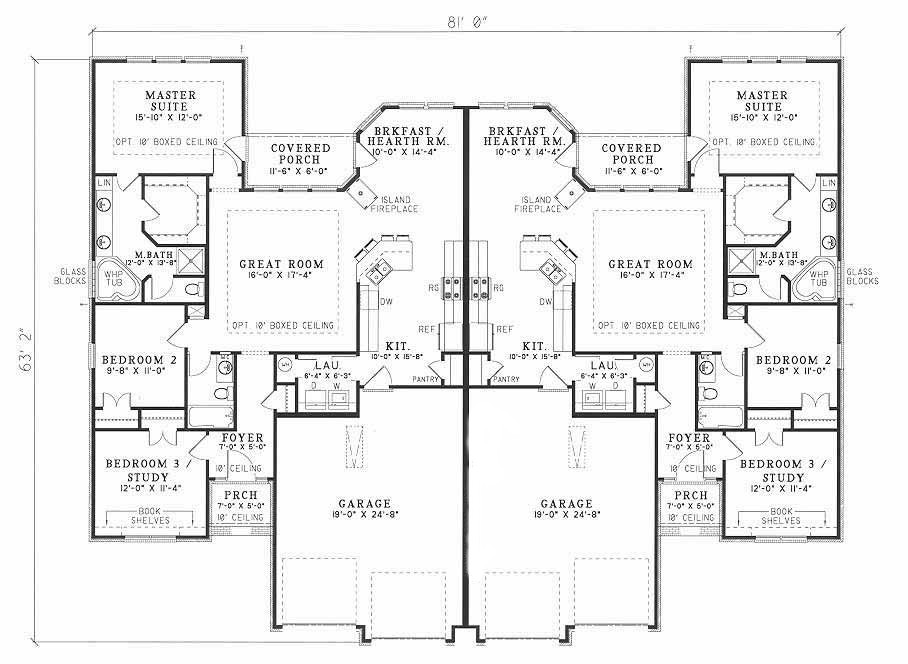

Home Plan: #153-1585 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #153-1585
Home Plan: #153-1585 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #153-1585
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-1585
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1520
Main Floor:
1520
Unfinished Sq Ft:
Garage :
938
Porch :
324

Dimensions

Width:
81' 0"
Depth:
63' 2"
Ridge Height:
25' 10"

Architectural Styles

Country
Duplex/Multi-Unit
Traditional

Exterior Wall Material

Rock/Stone
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

10/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Fireplace
Home Office
Family Room
Main Level Laundry
Split Bathroom
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Rear Porch
Portico

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Duplex Plan: 1520 square feet of living space per unit. The 1-story floor plan includes 3 bedrooms, 2 bathrooms, and a 2-car garage per unit.


Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
