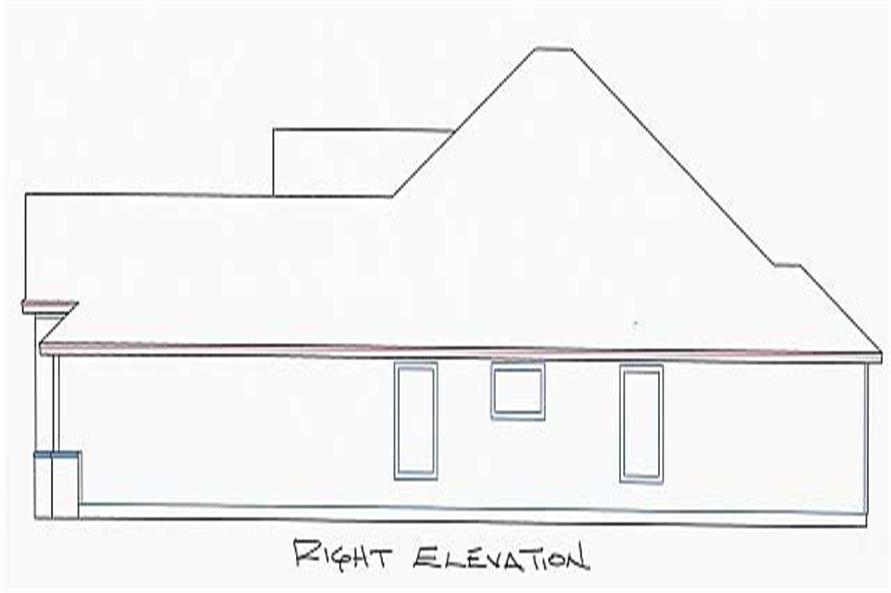

Home Plan Right Elevation

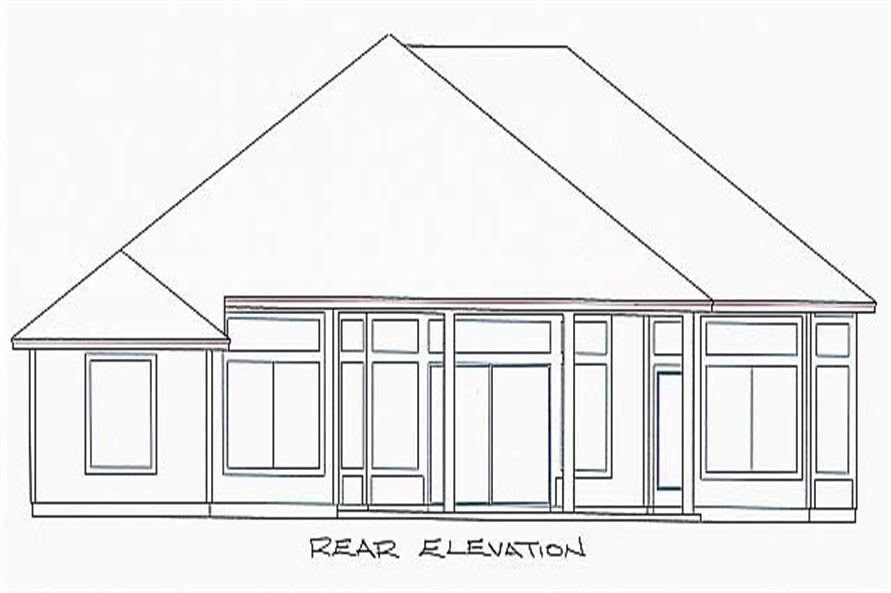

Home Plan Rear Elevation

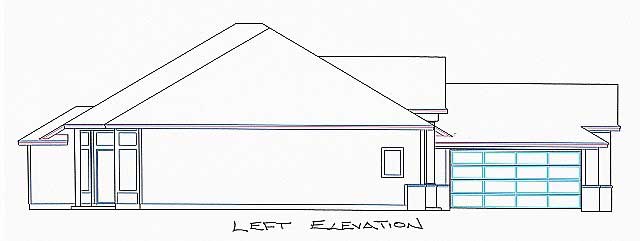

Home Plan left Elevation
4-Bedroom, 1933 Sq Ft Florida Style Home Plan - 150-1004 - Main Exterior

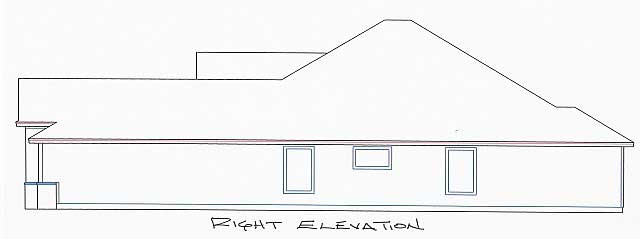

Home Plan Right Elevation
Home Plan Rear Elevation
Home Plan left Elevation

About Plan # 150-1004

About Plan # 150-1004

1933 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 54' 0" WIDTH 71' 0" DEPTH 2 GARAGE BAY

Gables, decorative vents, corbel brackets, arches and a cozy front porch strike the perfect balance on this stylish, yet affordable bungalow house plan and alludes to its comfortable interior. This distinctive home features expansive 10\' ceilings throughout the entire living area, making rooms appear even larger, but allowing them to keep their intimacy. The traffic flow is incredibly family efficient.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall section and cabinet elevations.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

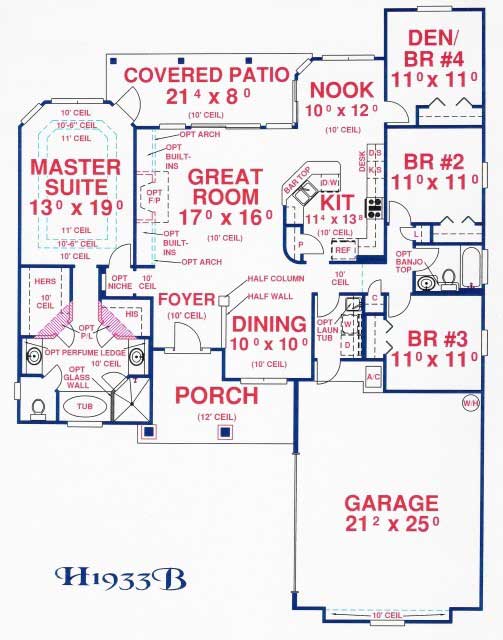

Home Plan: #150-1004 Floor Plan First Story - first story Floor Plan First Story of Florida Style Plan #150-1004
Home Plan: #150-1004 Floor Plan First Story - first story Floor Plan First Story of Florida Style Plan #150-1004
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 150-1004
Floors:
1
Bedrooms:
4
Full Baths:
2

Square Footage

Heated Sq Feet:
1933
Main Floor:
1933
Unfinished Sq Ft:
Garage :
605

Dimensions

Width:
54' 0"
Depth:
71' 0"
Ridge Height:
22'' 2"

Architectural Styles

Ranch
Vacation Homes
Southern
Beachfront
Traditional
Coastal
Florida Style

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

7/12

Ceiling Height

10 Foot Ceiling

Special Feature

Dining Room
Family Room
Main Level Laundry

Garage Type

Attached Garage
Side Entry

Construction Methods

Southern

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Patio

Master Suite Features

Walk In Closet
Split Master Bedroom

Additional Notes from Designer

For ALL plan packages from this designer - please check for shipping timeline BEFORE ordering! PLEASE NOTE - CAD files may take 4 to 6 weeks to create, depending on designer’s current workload at the time of purchase. Please call to confirm BEFORE ordering! NOTE: Alternate foundations and other options are available. Please send in a modification request for a free quote. Thank you!

PRICING OPTIONS

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
