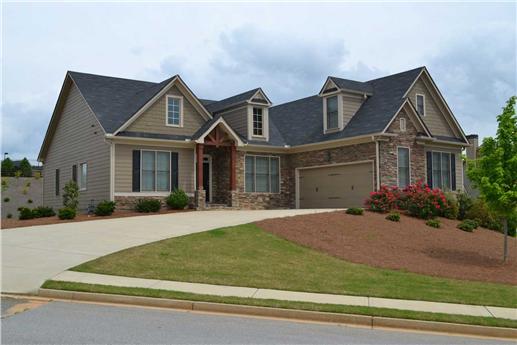

Arlington front photo
Photographs may reflect modified designs. Copyright held by designer.
View Additional Images (click image to enlarge)

House Plan # 163-1049

Best Price Guaranteed

Floors: 1
Living Sq Feet: 2201
Bedrooms: 3
Full Baths: 2
Half Baths: 0
Garage Bays: 2
Width: 55' 8"
Depth: 63' 10"
ADD TO CART

View All Price Options

Ask a Question

  pinit     Houzz   ShareThis


HOUSE PLAN DESCRIPTION

This rustic / craftsman style ranch fits right in Mountain environments or anywhere you would need a basement (Slab and Crawl Space foundations available). The courtyard style garage helps keep the footprint neat. The inside layout is a split-bedroom plan with the master suite on the left opposite the kitchen, and the two secondary bedrooms on the right side of the house. The rectangle shaped kitchen is open to the breakfast and sun room. The great room and sun room are separated by an optional see-thru fireplace. The master suite has a sitting room, and the master bath has a separate tub and shower, double vanities, a water closet and a walk-in closet. There is also an optional bedroom upstairs for storage or a home office. Actual plan may vary from photos or renderings.

Read more
Reverse Plan Images
FLOOR PLANS
Home Plan : # 163-1049 Floor Plan First Story
Floor Plan First Story
Copyright held by designer.

Home Plan : # 163-1049 Floor Plan Second Story
Floor Plan Second Story
Copyright held by designer.

PLAN SPECS & FEATURES

Summary Information
House Plan: #163-1049
Floors: 1
Bedrooms: 3
Full Baths: 2
Half Baths: 0
Garage Bays: 2
DIMENSIONS
Width: 55' 8"
Depth: 63' 10"
Ridge height: 23'  0''
SQUARE FOOTAGE
Heated Sq Feet: 2201
Main Floor: 2201
Unfinished Sq Feet:
Lower Floor: 2201
Bonus Room: 287
Garage: 490


Architectural Styles
Southern
Southwest
Traditional
Small House Plans

Building Lot Type
Down Site
Side Slope Site

Ceiling Height
9 Foot Ceiling

Construction Methods
Structural Insulated

Framing
Exterior Wall Framing:    2x4
Roof Framing:    Stick
Roof Framing:    Truss

Exterior Wall Material
Rock/Stone
Wood Siding
Vinyl Siding

Fireplaces
One Fireplace

Garage Type
Side Entry
Attached Garage

Kitchen Features
Eat-In Kitchen
Peninsula/Eating Bar

Master Suite Features
Master Bathroom
Walk In Closet
Main Floor Master
Split Master Bedroom

Porches and Exterior Features
Covered Rear Porch

Roof Pitch
12/12
8/12

Roofing Material
Asphalt Shingles

Roofing Type
Gable

Special Feature
Bonus Room
Family Room
Main Level Laundry
Color Photos


PRICING OPTIONS

ADD TO CART

You can select your plan package and options once the plan has been added to the cart

Plan Package and Pricing Help
PLAN PACKAGES: HOUSE PLAN # 163-1049
Minimum Construction Package (5 Sets) $894.00
Standard Construction Package (8 Sets) $979.00
Reproducible Master $1149.00
CAD File $1749.00
FOUNDATION OPTIONS
Daylight Basement $0.00
OTHER OPTIONS / ADD-ONS
2x6 Framing Option - Exterior Walls $150.00
2x8 Framing Option - Exterior Walls $150.00
