Garage/w Apartment Plan #163-1041
Home Plan Rear Elevation
Home Plan Left Elevation
Home Plan Right Elevation
163-1041: Home Exterior Photograph-Garage

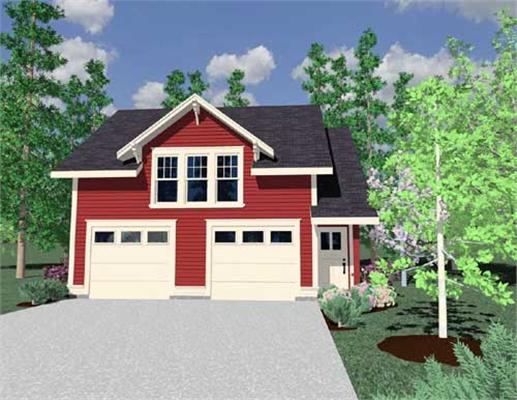

1-Bedroom, 906 Sq Ft Garage w/Apartments Home - Plan #163-1041 - Main Exterior
Home Plan Rear Elevation
Home Plan Left Elevation
Home Plan Right Elevation
163-1041: Home Exterior Photograph-Garage

About Plan # 163-1041

About Plan # 163-1041

906 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 34' 0" WIDTH 32' 0" DEPTH 2 GARAGE BAY

A home on top of a garage? Try this classy Craftsman Garage Plan that has the style and comfort of a bigger place. An exterior of contrasting wood siding and shakes plus a gable roof of asphalt shingles is an attractive sight. Add a little landscaping and covered porch for great curb appeal.

The second floor apartment features a spacious one-bedroom suite with several multi-pane windows that allow abundant light. A Great Room - living room, kitchen with an island, peninsula eating bar, and eat-in area – is perfect for entertaining. A master bath, walk-in closet, and fireplace complete the picture!

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Electrical Layout (location of light fixtures, switches, and fans) - Although may be available for an additional charge.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #163-1041 Floor Plan First Story - main level Floor Plan Main Level of Garage w/Apartments Plan #163-1041
#163-1041 Floor Plan Second Story - upper level Floor Plan Upper Level of Garage w/Apartments Plan #163-1041
Home Plan: #163-1041 Floor Plan First Story - main level Floor Plan Main Level of Garage w/Apartments Plan #163-1041
#163-1041 Floor Plan Second Story - upper level Floor Plan Upper Level of Garage w/Apartments Plan #163-1041
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 163-1041
Floors:
2
Bedrooms:
1
Full Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
906
Main Floor:
968
Upper Floor:
906
Unfinished Sq Ft:

Dimensions

Width:
34' 0"
Depth:
32' 0"
Ridge Height:
25' 4"

Architectural Styles

Colonial
Country
Traditional
Craftsman
Garage w/Apartments

Exterior Wall Material

Wood Siding
Shakes

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
4/12

Special Feature

Mother in law apartment
Fireplace
Family Room
Color Photos
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

Optional Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site
Narrow Lot Design

Kitchen Features

Kitchen Island
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Portico

Master Suite Features

Master Bathroom
Walk In Closet
Second Floor Master

Additional Notes from Designer

Please Note: There might be a 4-5 day delay in getting the sales orders out due to updates being made to the designer's plans.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
