House Plan #109-1163
Photographs may reflect modified designs. Copyright held by designer.

About Plan # 109-1163

About Plan # 109-1163

House Plan Details

4060 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 68' 0" WIDTH 61' 0" DEPTH 0 GARAGE BAY

House Plan Description

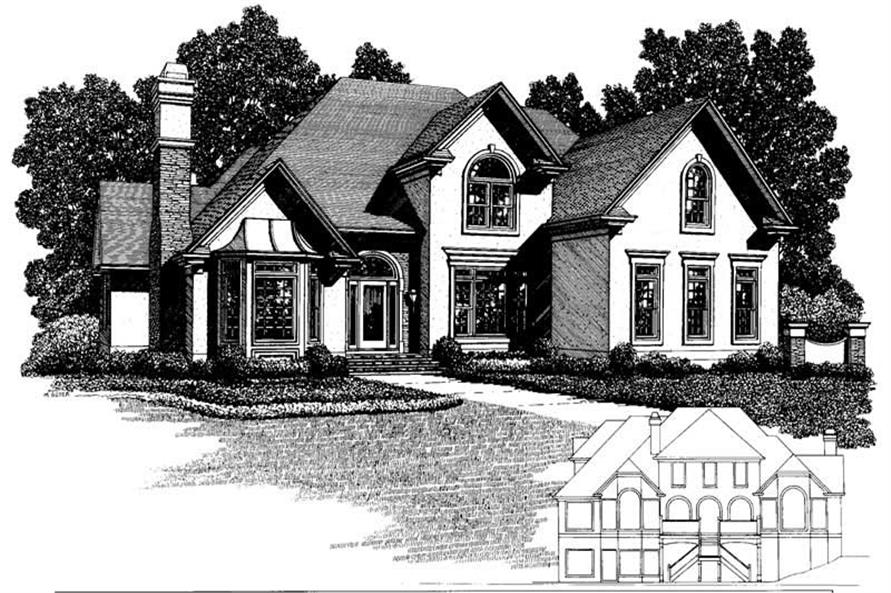

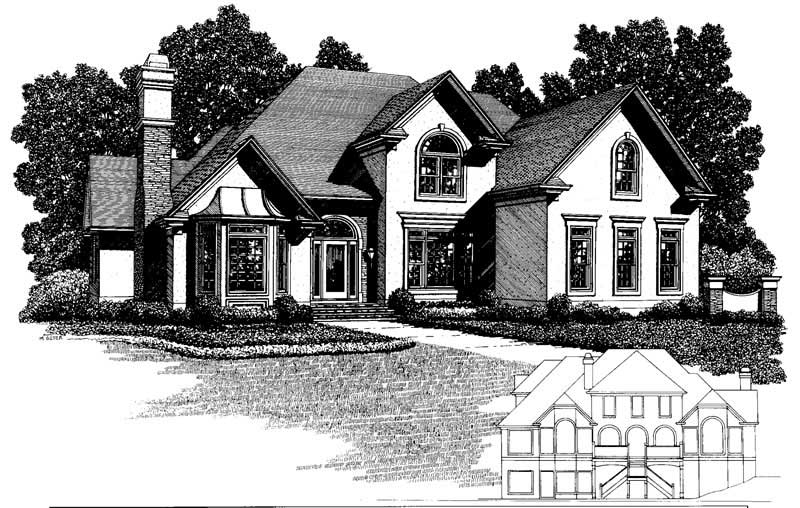

This 4,060 sq.ft. European traditional home features a stucco exterior. The dramatic two-story features a curved stairway to the upper level. To the left of the foyer is a 13'x14' study with a fireplace and a bay window. To the right of the foyer is a 14'x16' dining room with box ceiling. Highlighted by triple windows, the 24'x14' living room features a fireplace and a built-in entertainment center. Featured in the 14'x16' kitchen are an angled counter and a center work island. The 10'x14' breakfast room and the 14'x13' sunroom each have multiple windows and ceiling fans. The sunroom also has a door leading onto a deck. Located just off the kitchen area, the laundry room features a linen closet and laundry tub. The master suite measures 15'x16' and has a vaulted ceiling as well as a whirlpool tub and separate shower, his and hers vanities, a linen closet and a large walk-in closet.


Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Floor Plans

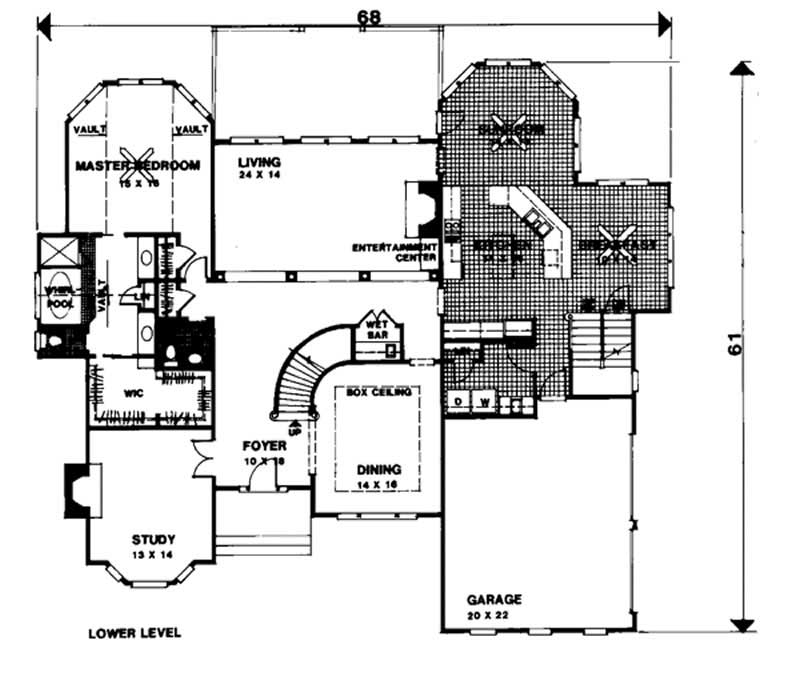

Home Plan: #109-1163 Floor Plan First Story MAIN FLOOR PLAN

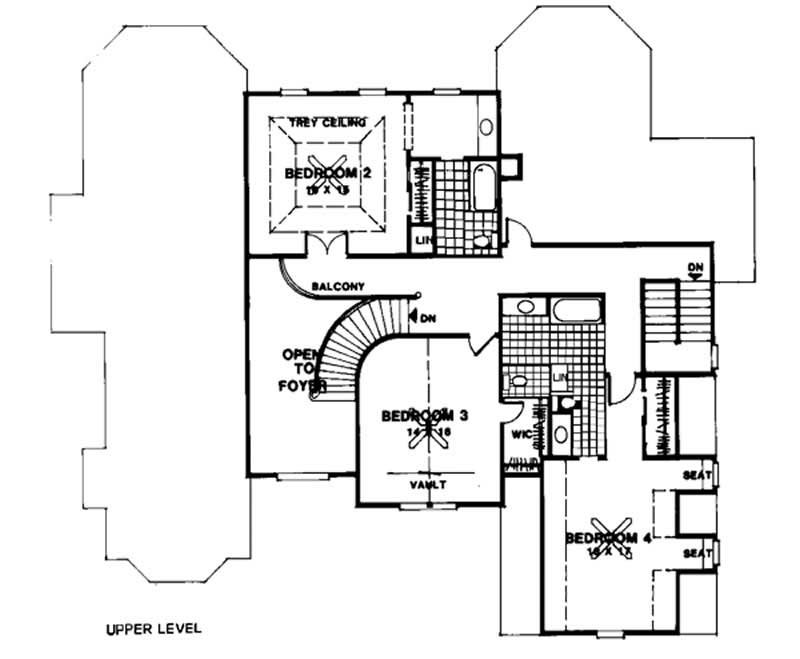

Home Plan: #109-1163 Floor Plan Second Story SECOND FLOOR PLAN
Home Plan: #109-1163 Floor Plan First Story - MAIN FLOOR PLAN MAIN FLOOR PLAN
Home Plan: #109-1163 Floor Plan Second Story - SECOND FLOOR PLAN SECOND FLOOR PLAN

Plan specs and features

Summary Information

House Plan:
# 109-1163
Floors:
2
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
4060
Main Floor:
2562
Upper Floor:
1498
Unfinished Square Feet:

Dimensions

Width:
68' 0"
Depth:
61' 0"

Architectural Styles

Craftsman
French
Luxury

Exterior Wall Material

Stucco

Roof Pitch

12/12

Ceiling Height

10 Foot Ceiling
8 Foot Ceiling
9 Foot Ceiling

Special Feature

Dining Room
Fireplace
Main Level Laundry

Exterior Wall Framing

2x4

PRICING OPTIONS

A full set of construction drawings in an electronic format provides many advantages over printed blueprint packages and reproducible masters. You can make multiple copies at a local copy center using the paper size your choice. If you need to make modifications, a design professional can do so typically the same way a reproducible master would be modified. The PDF File Set can be emailed directly to you - often the same day or within 1 business day of your order. Purchase of this PDF File Set constitutes a license to build a single house only.

This package includes a license to build a single house plus full construction drawings with the minimum number of sets needed to build your own home.

This includes a license to build a single house plus one full set of construction drawings printed on a reproducible medium. A reproducible set allows you to make as many copies as needed for construction of a single home or to take them to a local professional for modifications. To build more than one house, please contact us for a multi-use building license.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.


All house plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original house plan was drawn.


The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plans herein carefully.
