3-Bedroom, 1640 Sq Ft Ranch Home Plan - 101-1354 - Main Exterior

About Plan # 101-1354

About Plan # 101-1354

1640 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 74' 4" WIDTH 48' 0" DEPTH 3 GARAGE BAY

This traditional ranch-style house plan makes excellent use of its 1640 square feet. The foyer of this home has a graceful vaulted ceiling that extends into the living room. The kitchen/dining room area boasts an island/eating bar and access to the covered patio, perfect for enjoy meals outdoors. The master bedroom features a walk-in closet and a private bath while two additional bedrooms share a full hallway bath. This plan also features a large laundry room that leads to the three-car garage.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

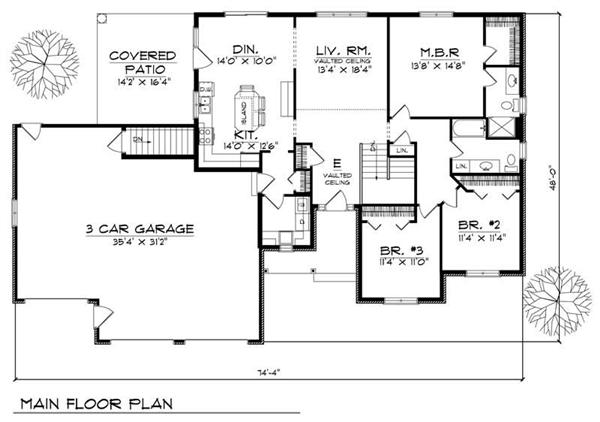

Home Plan: #101-1354 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1354
