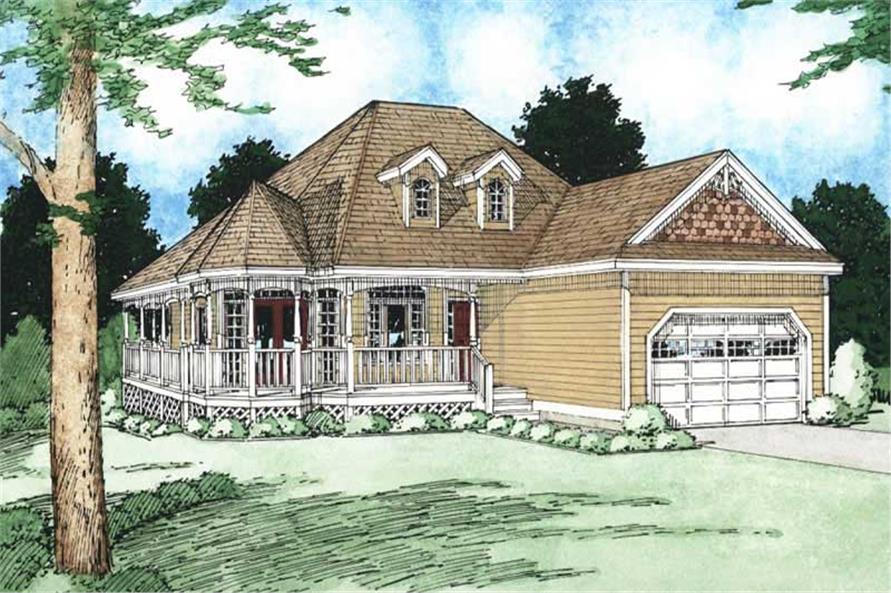

Front elevation of Bungalow home (ThePlanCollection: House Plan #177-1000)

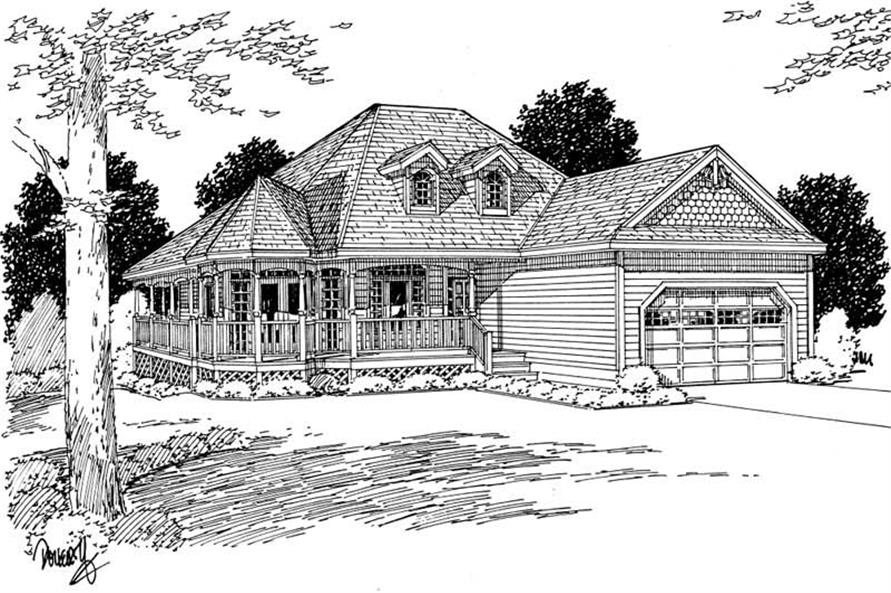

FRONT ELEVATION

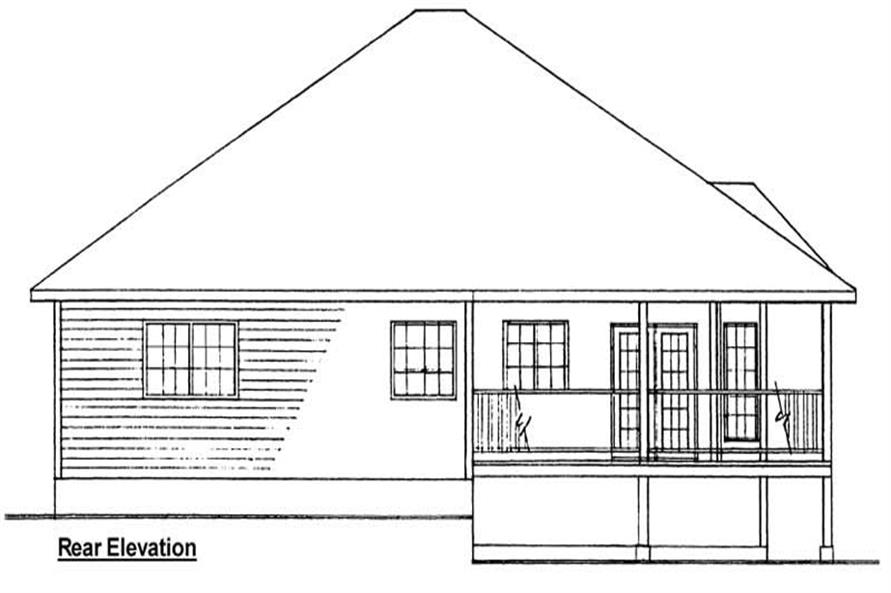

REAR ELEVATION

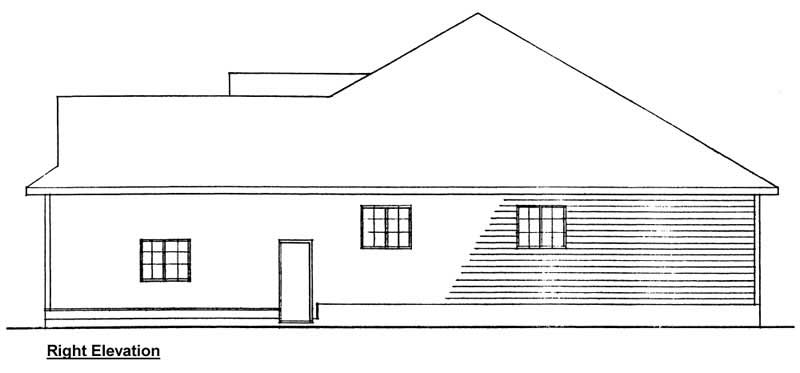

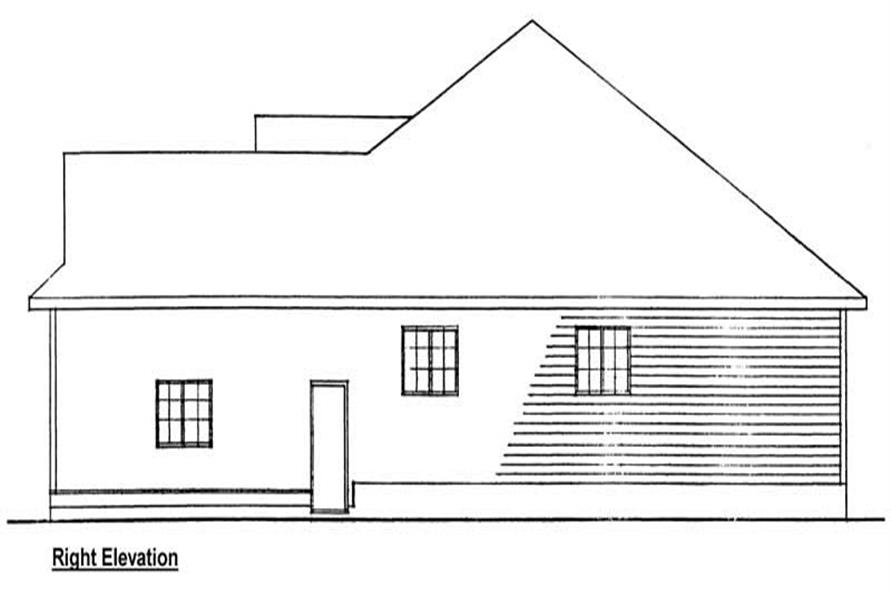

RIGHT ELEVATION

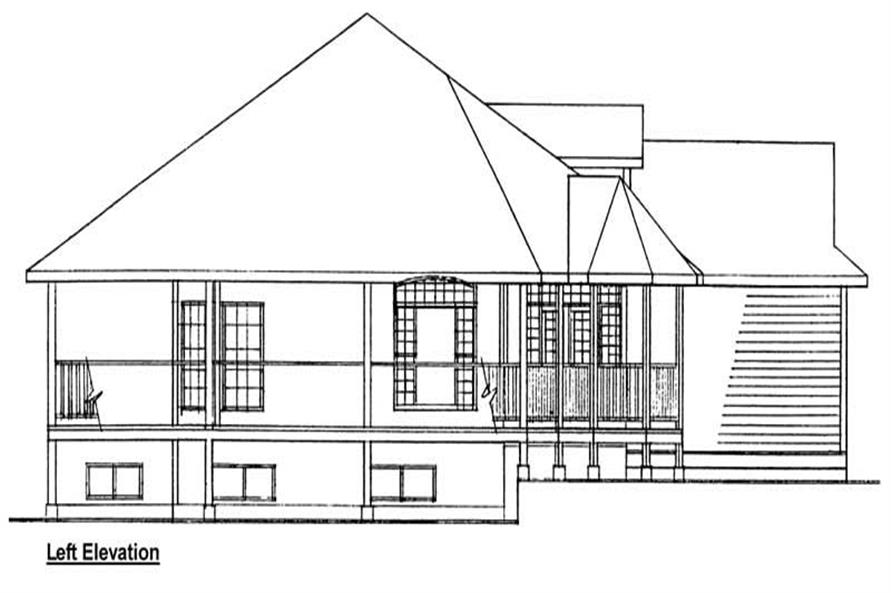

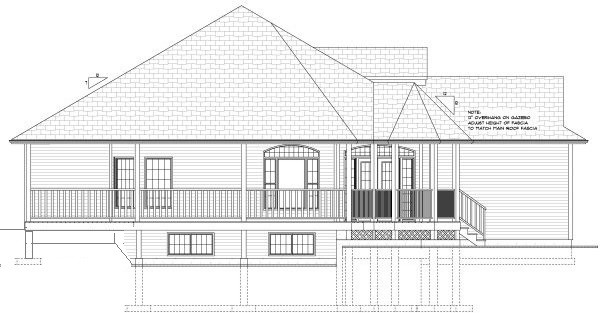

177-1000: Home Plan Left Elevation
3-Bedroom, 1506 Sq Ft Bungalow Home Plan - 177-1000 - Main Exterior
FRONT ELEVATION
REAR ELEVATION
RIGHT ELEVATION
177-1000: Home Plan Left Elevation

About Plan # 177-1000

About Plan # 177-1000

1506 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 48' 0" WIDTH 58' 0" DEPTH 2 GARAGE BAY

A built-in gazebo on the front corner expands the usable porch area and gives this home a unique look. The main floor of this plan features 9'-0 high ceilings to add more volume to this already open design. Decorative columns define the foyer, but present no visual barrier, from this point you can easily access all areas of the home. The spacious living area to the left of this design is great for entertaining and is warmed by the three-sided gas fireplace, all rooms open out onto either the gazebo or covered rear deck. The well appointed Master Bath is very luxurious and the big walk-in closet features built-in shelving for shoes, linen or sweaters.

Each plan set includes the following:

  • Electrical Layout
  • Elevations
  • Foundation
  • Typically Roof Trusses, a few A-Frames might have the Stick Frame, but mostly roof trusses
  • Wall Section
  • Building Sections
  • Material list available for purchase
  • Cabinet elevations will vary depending on the plan (plans with inside modeling will typically have the cabinet elevations)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

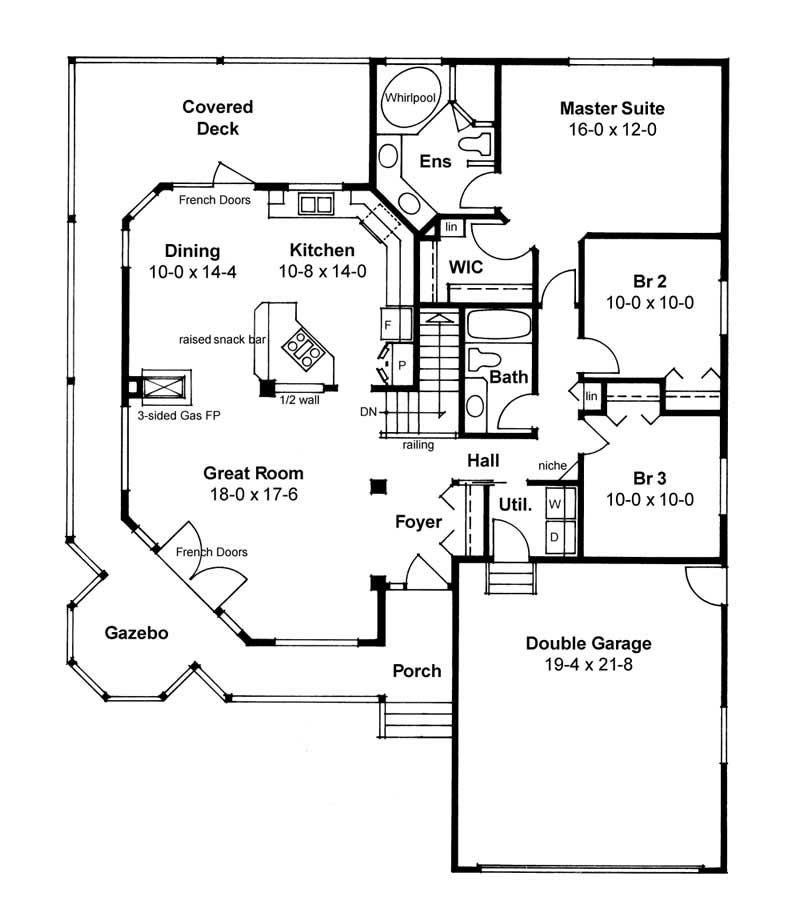

Home Plan: #177-1000 Floor Plan First Story - main Floor Plan First Story of Bungalow Plan #177-1000
Home Plan: #177-1000 Floor Plan First Story - main Floor Plan First Story of Bungalow Plan #177-1000
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 177-1000
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1506
Main Floor:
1506
Unfinished Sq Ft:

Dimensions

Width:
48' 0"
Depth:
58' 0"

Architectural Styles

Ranch
Bungalow
Traditional
Cape Cod
Cottage

Exterior Wall Material

Vinyl Siding
Stucco
Wood Siding

Roof Pitch

7/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry
Open Floor Plan

Garage Type

Attached Garage

Exterior Wall Framing

2x6

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Wrap Around Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

No BCIN available. We advise you purchase a CAD and use a local engineer for BCIN Additional Use Licenses and Unlimited Use Licenses are available. After purchasing the plan, the designer will charge you separately for the additional licenses.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
