About Plan # 107-1180

About Plan # 107-1180

5789 SQUARE FEET 4 BEDROOMS 6 FULL BATH 1 HALF BATH
2 FLOOR 84' 11" WIDTH 94' 5" DEPTH 3 GARAGE BAY
These Mediterranean House Plans feature a concrete block exterior construction. Not shown on the floorplans is a Cabana with a private bath and closet that adds a bonus of 252 square feet This home has a beautiful courtyard with 5 sets of French doors. The grand entry foyer accesses the Gallery, the master Suite, and the Family Room. The master suite has access to the rear, two walk-in closets, and a wonderful master Bath. The family room boasts an Audio Visual Center, access to the rear patio, and opens to Kitchen. The Kitchen with its island work area, is open to the surrounding rooms. There is also a Butler's Pantry leading to the Dining Room, but don't forget the breakfast room with a coffered ceiling and morning bar.

Each plan set includes the following:

  • Floor plan
  • Kitchen & Bath layout
  • Exterior elevations
  • Sections
  • Structural plans
  • Foundation plan
  • Roof plan
  • Mechanical layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

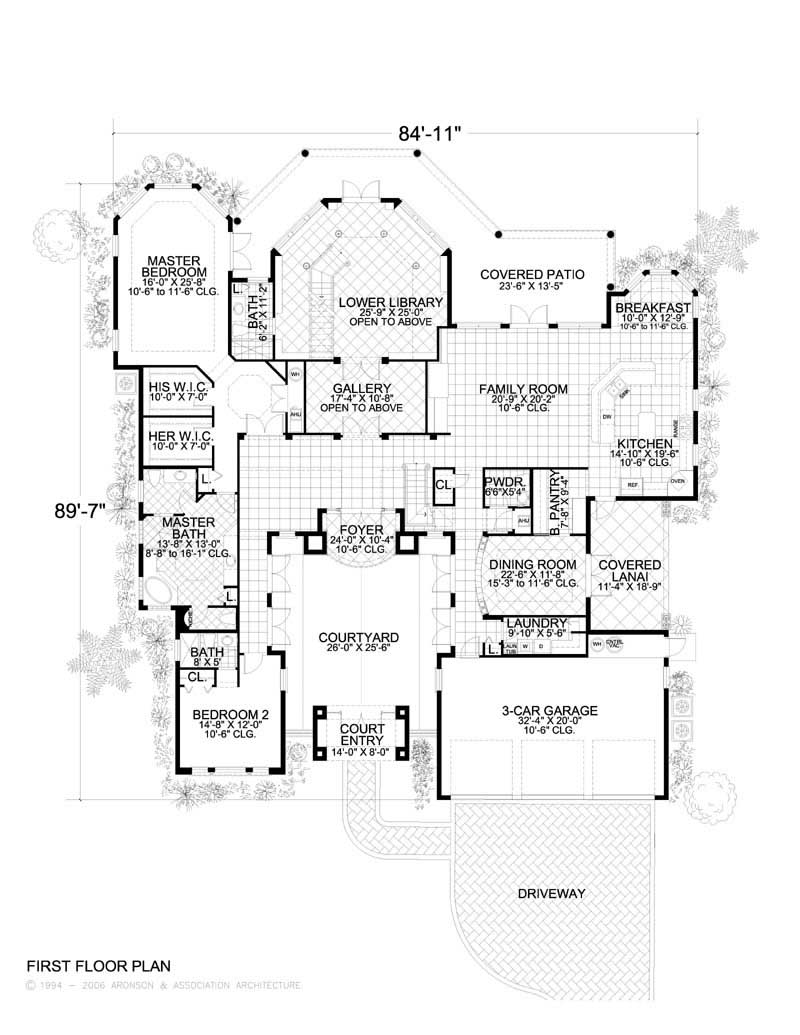

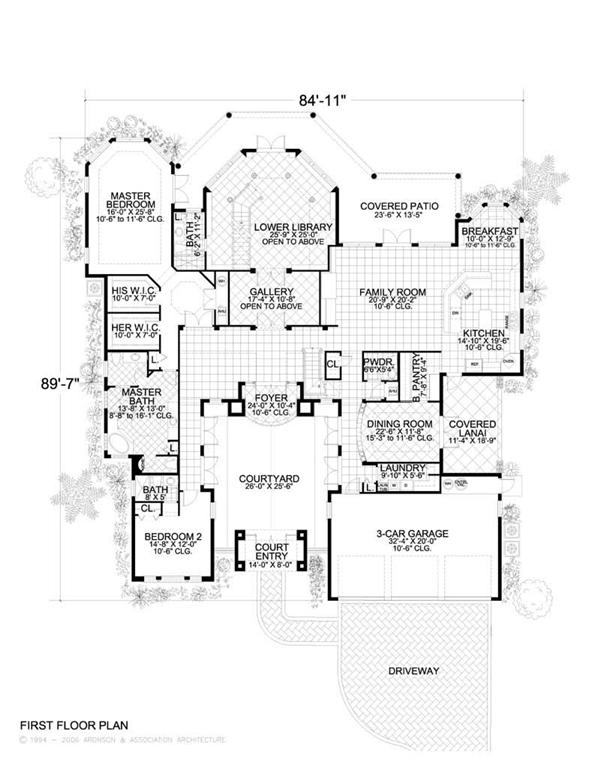

Home Plan: #107-1180 Floor Plan First Story - first story Floor Plan First Story of Coastal Plan #107-1180

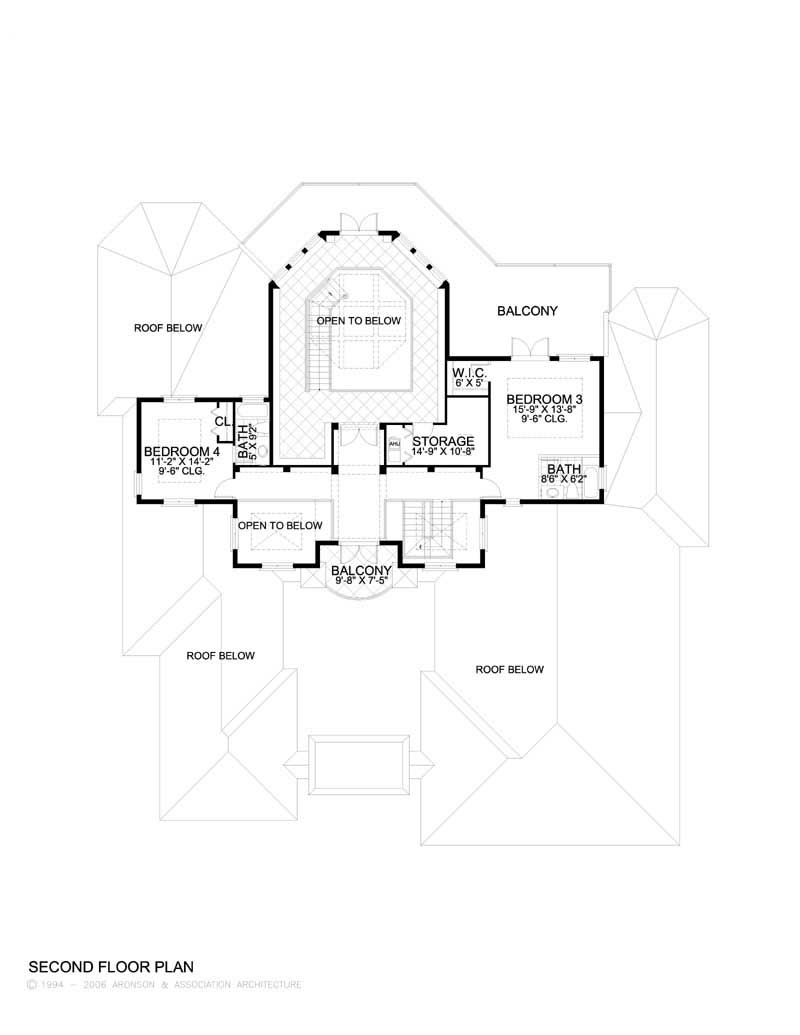

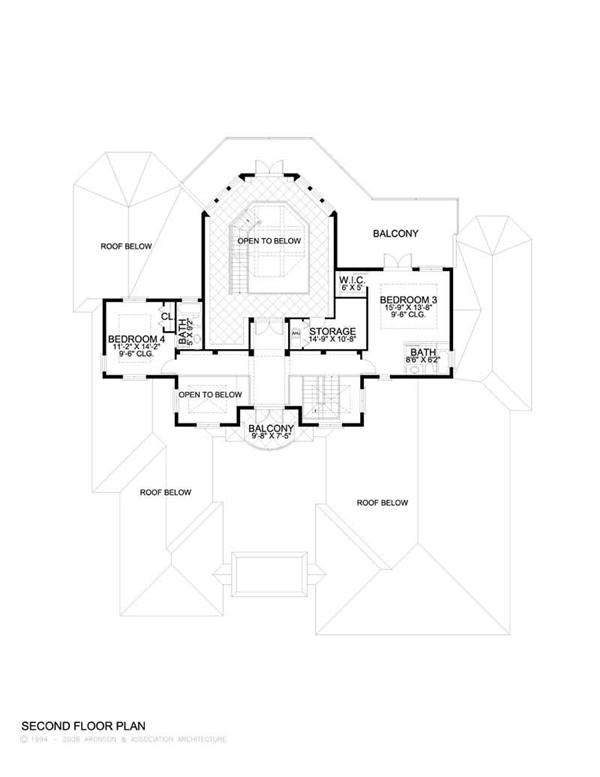

#107-1180 Floor Plan Second Story - second story Floor Plan Second Story of Coastal Plan #107-1180
Home Plan: #107-1180 Floor Plan First Story - first story Floor Plan First Story of Coastal Plan #107-1180
#107-1180 Floor Plan Second Story - second story Floor Plan Second Story of Coastal Plan #107-1180
