Craftsman home (ThePlanCollection: Plan #103-1162)

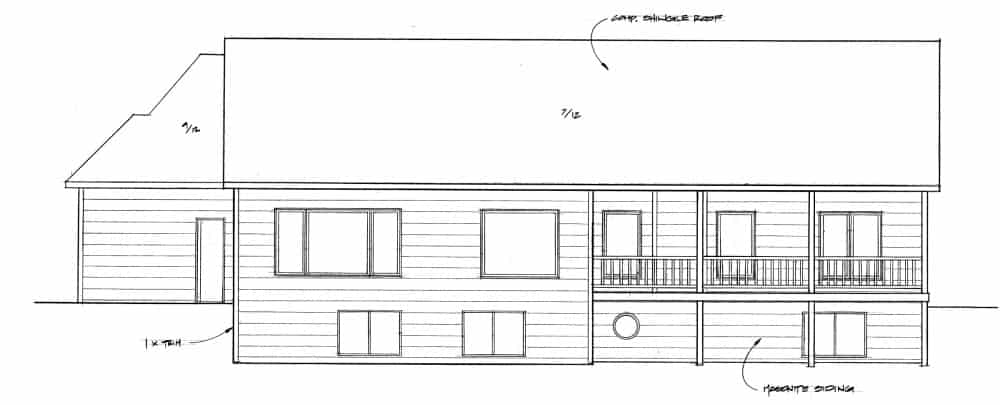

103-1162: Home Plan Rear Elevation
3-Bedroom, 1683 Sq Ft Craftsman Home - Plan #103-1162 - Main Exterior
103-1162: Home Plan Rear Elevation

About Plan # 103-1162

About Plan # 103-1162

1683 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 72' 6" WIDTH 57' 0" DEPTH 2 GARAGE BAY

You'll love coming home to this adorable Craftsman style Ranch home with an offset garage – simple but elegant. Its subtle and style-appropriate use of materials for the exterior walls gives it a superb natural curb appeal. You'll find 9-foot ceilings throughout and vaulted ceilings in the living, dining, and kitchen areas, plus a coffered ceiling in the primary bedroom suite. The impressive 1-story home's floor plan has 1683 square feet of living space and includes 3 bedrooms. The house includes a 1683-square-foot unfinished daylight basement that you may finish at your option to add another 2 bedrooms, a full bathroom, rec or family room, and a wet bar.

Each plan set includes the following:

  • Front, Side & Rear Elevations
  • Floor Plan
  • Foundation Plan
  • Roof Plan (Birdseye view)
  • Electrical Layout (location of outlets, switches - it does not have wiring schematics)
  • Cabinet Details
  • Wall Section
  • Stair Details
  • Building Cross Section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

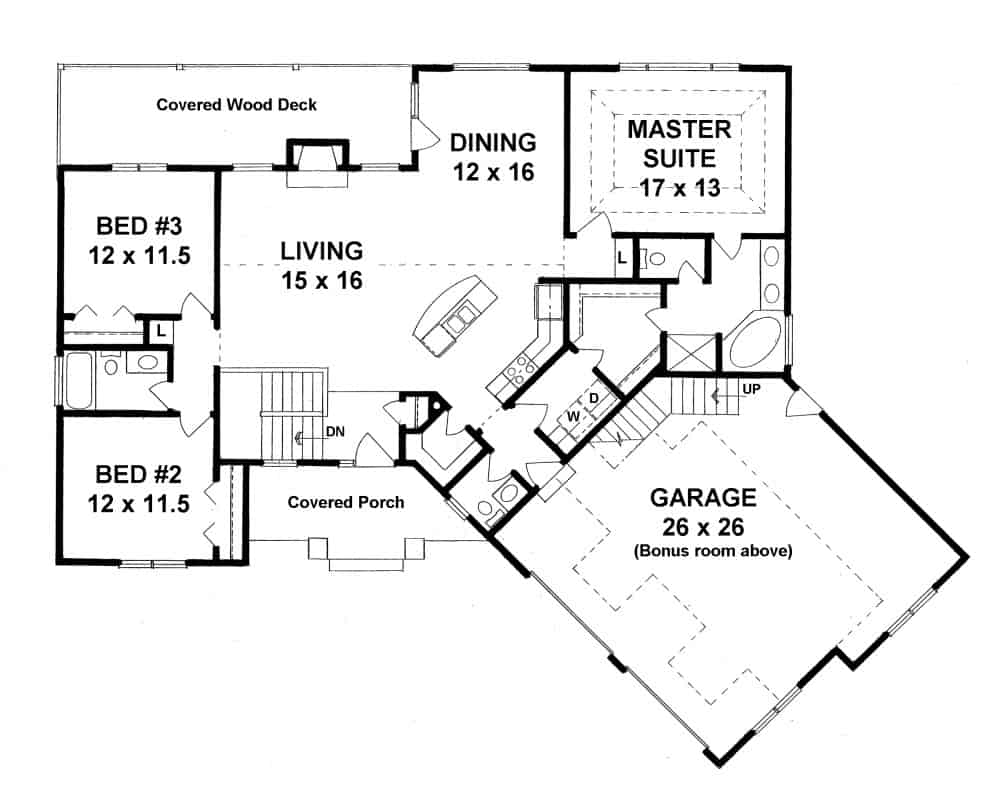

Home Plan: #103-1162 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #103-1162
Home Plan: #103-1162 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #103-1162
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 103-1162
Floors:
1
Bedrooms:
3
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
1683
Main Floor:
1683
Unfinished Sq Ft:
Lower Floor:
1683
Bonus Room:
614
Garage :
670

Dimensions

Width:
72' 6"
Depth:
57' 0"
Ridge Height:
22' 0"

Architectural Styles

Country
Ranch
Craftsman
Transitional

Exterior Wall Material

Vinyl Siding
Brick
Stucco
Rock/Stone

Roofing Type

Gable
Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

7/12
9/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Family Room
Main Level Laundry
Split Bathroom
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Courtyard Entry

Fireplaces

One Fireplace

Building Lot Type

Down Site

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
