About Plan # 189-1137

About Plan # 189-1137

2680 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 84' 0" WIDTH 83' 6" DEPTH 3 GARAGE BAY

Welcome to this excellently designed Ranch style home with Contemporary touches, such as the steep roof, raised middle (for a half story finished area if you choose to follow the suggested floor plan), and vertical siding. Lots of living space makes this home the perfect place for relaxing and entertaining – and raising a family. The house covers a total heated and cooled area of 2680 square feet – plus the suggested future finished area of 492 sqaure feet and a 547-square-foot bonus area over the garage – and includes 3 bedrooms.

Each plan set includes the following:

  • Foundation Detail
  • Floor plans
  • Exterior Elevations
  • Cross-section elevations
  • Interior elevations
  • Arial view
  • Color rendering of the front elevation
  • Roof plan
  • Roof Framing
  • Ceiling Framing
  • Floor Framing
  • Electrical Layout
  • Notes and Details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

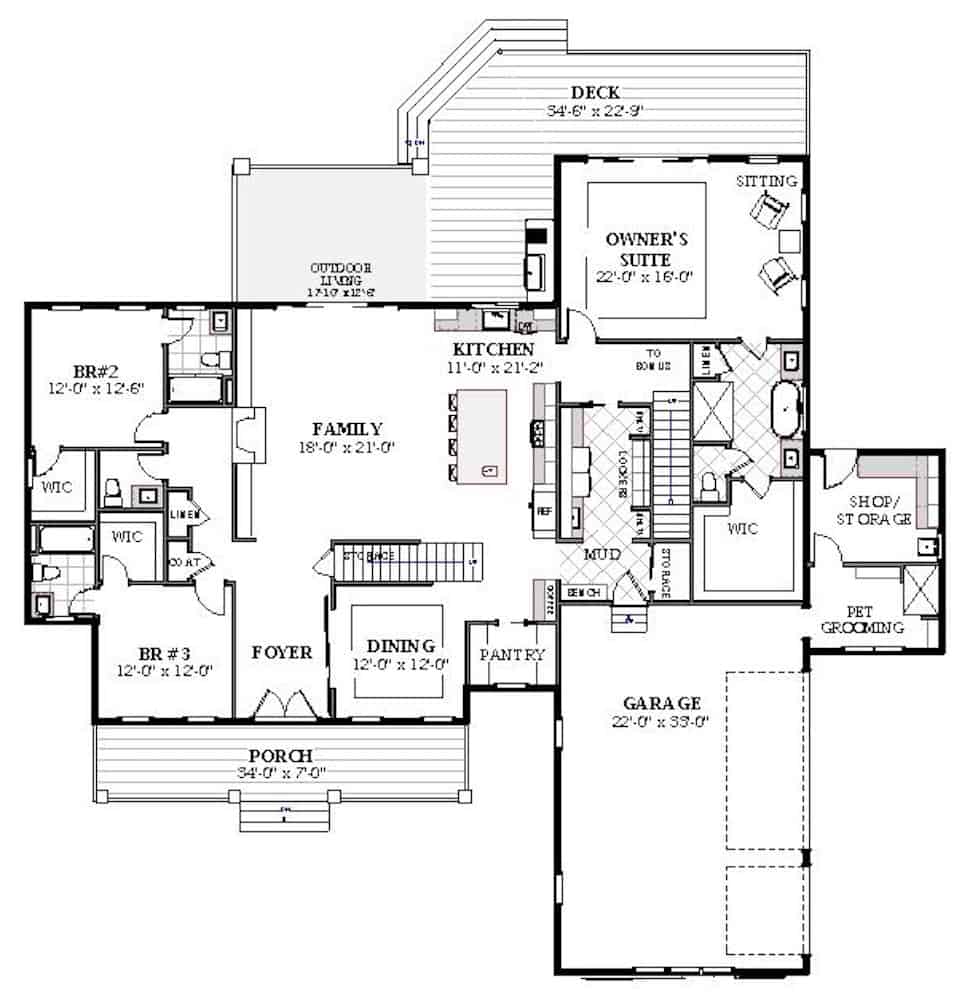

Home Plan: #189-1137 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #189-1137

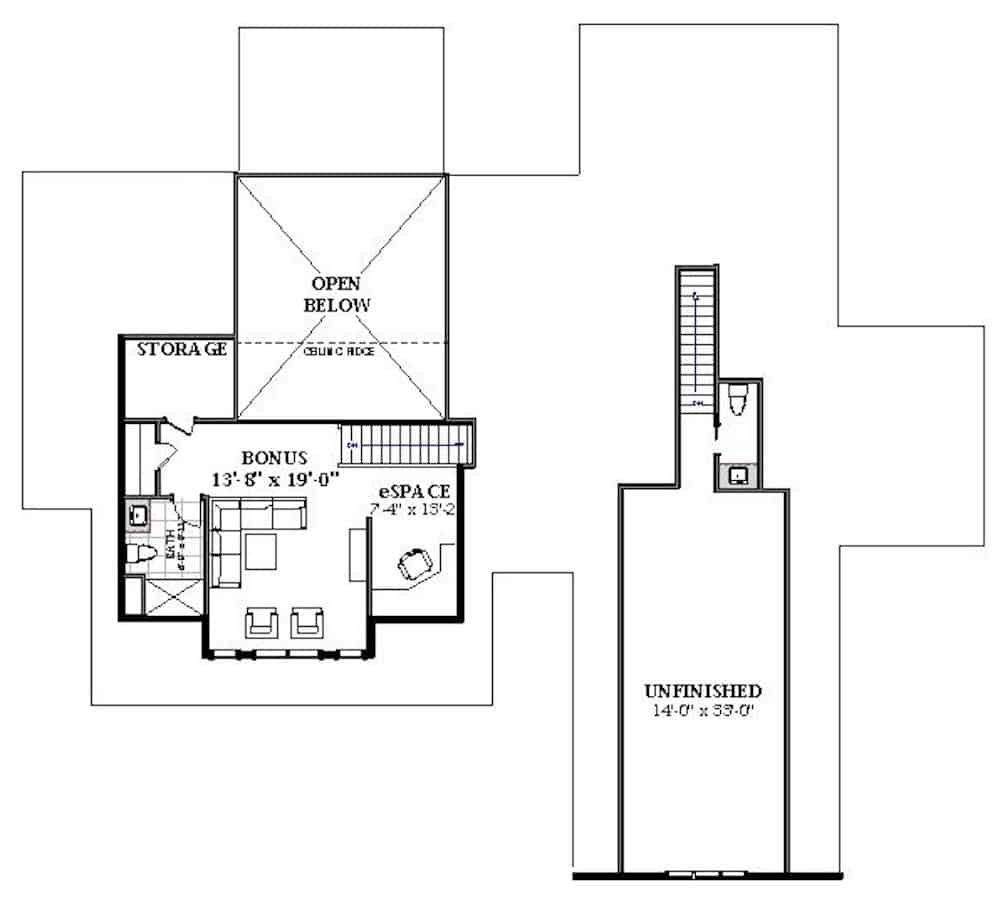

#189-1137 Floor Plan Second Story - upper level Floor Plan Upper Level of Ranch Plan #189-1137
Home Plan: #189-1137 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #189-1137
#189-1137 Floor Plan Second Story - upper level Floor Plan Upper Level of Ranch Plan #189-1137
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 189-1137
Floors:
1
Bedrooms:
3
Full Baths:
3
Half Baths:
1
Garage :
3

Square Footage

Heated Sq Feet:
2680
Main Floor:
2680
Unfinished Sq Ft:
Upper Floor:
492
Bonus Room:
547
Garage :
771
Porch :
927

Dimensions

Width:
84' 0"
Depth:
83' 6"
Ridge Height:
29' 4"

Architectural Styles

Ranch
Farmhouse
Contemporary
Transitional
Modern Farmhouse

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Metal

Roof Pitch

12/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Mud Room
Bonus Room
Family Room
Main Level Laundry
Split Bathroom
Storage
Workshop
Open Floor Plan
L-Shaped

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Corner Lot

Kitchen Features

Kitchen Island
Walk-in Pantry
Outdoor Kitchen
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area
Split Master Bedroom

Additional Notes from Designer
