House Plan #164-1003
Photographs may reflect modified designs. Copyright held by designer.

About Plan # 164-1003

About Plan # 164-1003

House Plan Details

1733 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 48' 10" WIDTH 72' 10" DEPTH 2 GARAGE BAY

House Plan Description

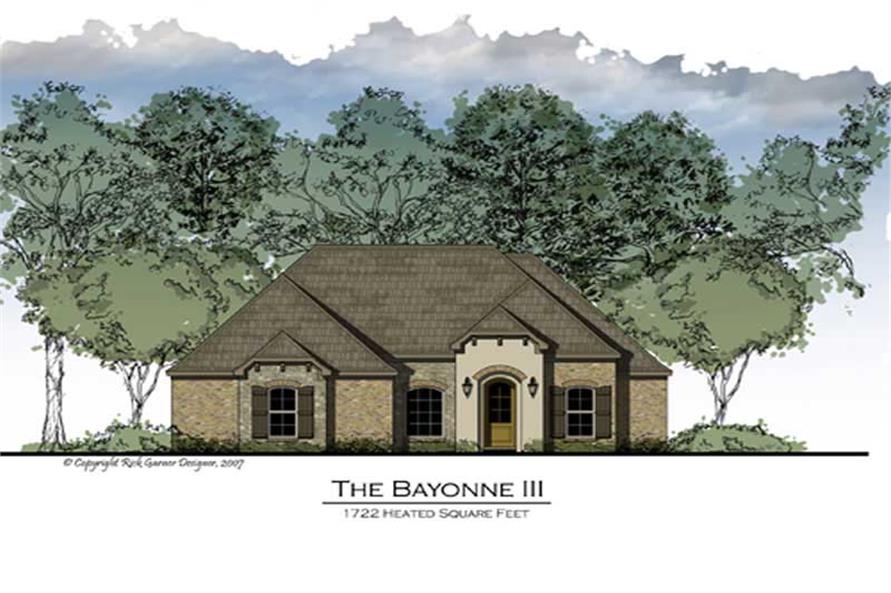

The Bayonne III has a stucco porch that takes you into a house of charm. The den has a fireplace in the corner feeding warmth through the home. The covered porch is a great spot to cool of and watch a majestic sunset. Having a raised ceiling allows the master bedroom to hold the lofty dreams of a new couple.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Floor Plans

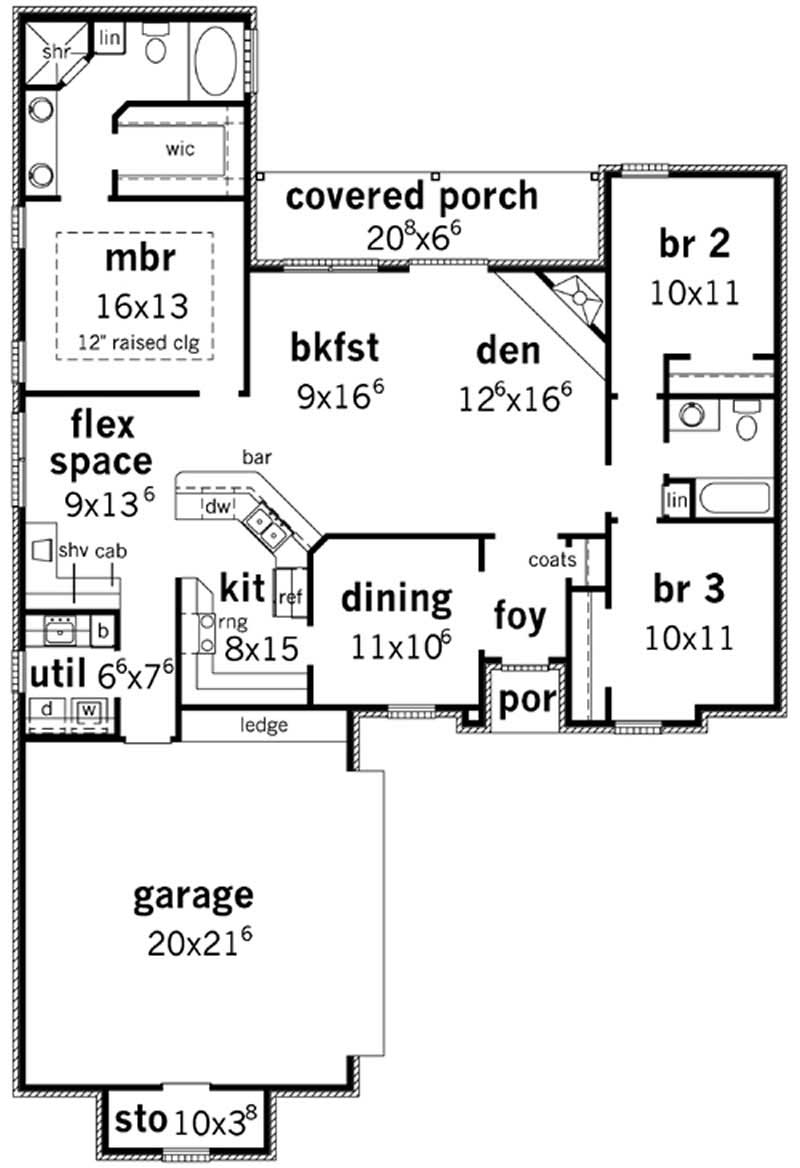

Home Plan: #164-1003 Floor Plan First Story Floor Plan First Story
Home Plan: #164-1003 Floor Plan First Story - Floor Plan First Story Floor Plan First Story

Plan specs and features

Summary Information

House Plan:
# 164-1003
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1733
Main Floor:
1733
Unfinished Square Feet:

Garage :
557

Dimensions

Width:
48' 10"
Depth:
72' 10"
Ridge Height:
' 0"

Architectural Styles

French

Exterior Wall Material

Rock/Stone

Roofing Type

Hip

Roof Pitch

12/12
9/12

Ceiling Height

9 Foot Ceiling

Special Feature

Den
Dining Room
Fireplace
Main Level Laundry
Storage

Garage Type

Courtyard Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

This package includes a license to build a single house plus full construction drawings with the minimum number of sets needed to build your own home.

This package includes a license to build a single house plus full construction drawings and tends to be the best value for someone who is ready to start building. Once the process begins, a number of people will require their own set of blueprints - your builder, the subcontractors, local building officials, the mortgage lender and you.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.


All house plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original house plan was drawn.


The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plans herein carefully.
