About Plan # 170-1147

About Plan # 170-1147

5787 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 100' 0" WIDTH 84' 0" DEPTH 4 GARAGE BAY
This two-story house is luxuriouswith 5787 total square feet. It has 4 bedrooms, 4 bathrooms, and a 4 car garage. This house plan also has a brick exterior as well as a slab foundation. Some special features of these houseplans are the exercise room along with the recreation room.

Each plan set includes the following:

  • Foundation
  • Floor Plans
  • Framing
  • Roof
  • Cabinet
  • Stair Detail
  • Elevation
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

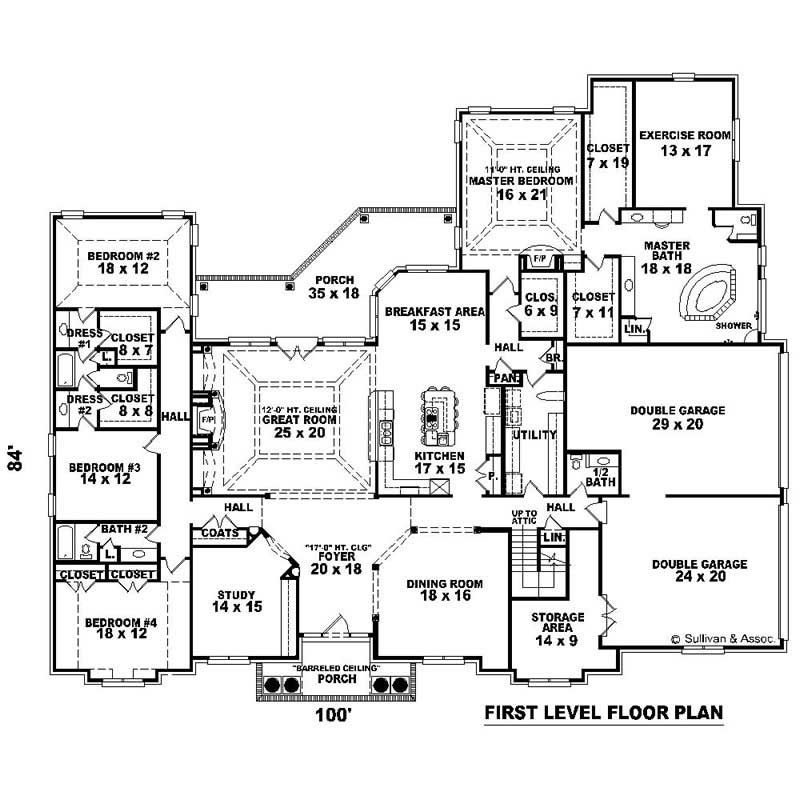

Home Plan: #170-1147 Floor Plan First Story - first Floor Plan First Story of Luxury Plan #170-1147

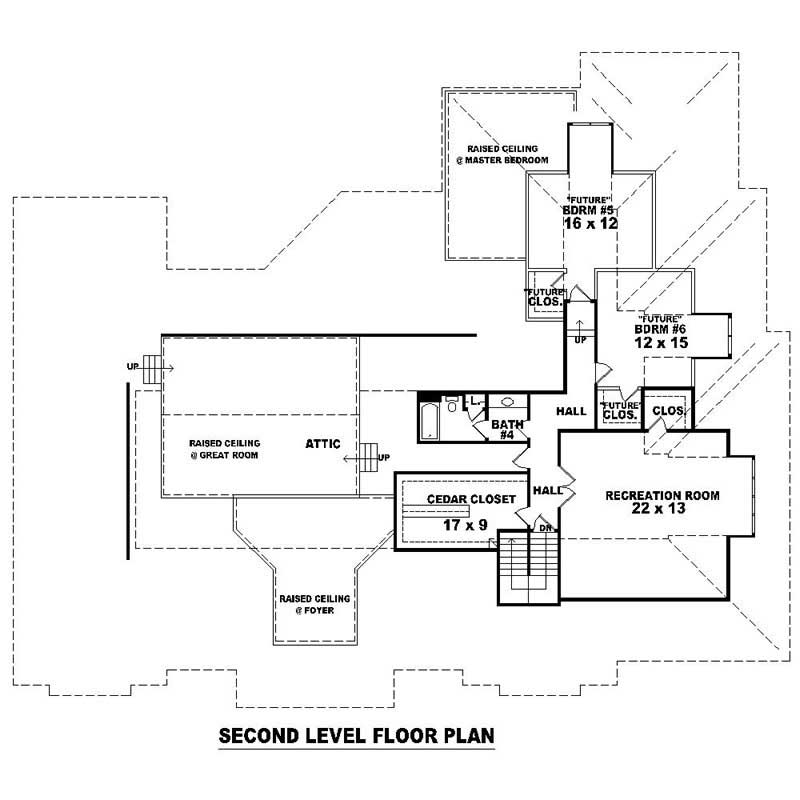

#170-1147 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #170-1147
Home Plan: #170-1147 Floor Plan First Story - first Floor Plan First Story of Luxury Plan #170-1147

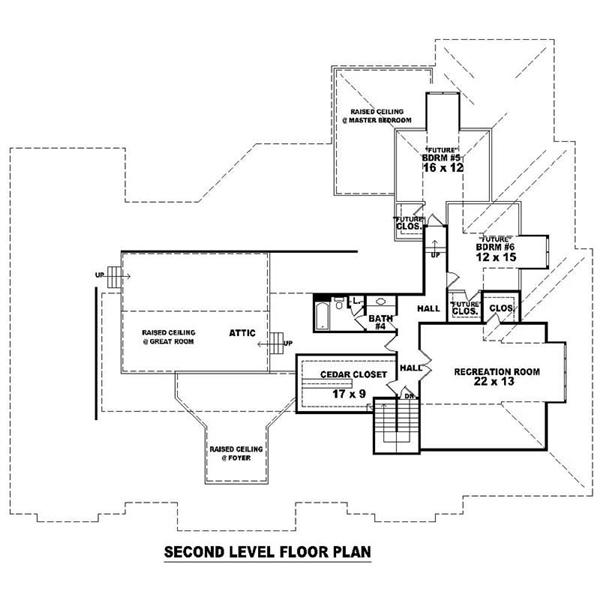

#170-1147 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #170-1147
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 170-1147
Floors:
2
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
5787
Main Floor:
4835
Upper Floor:
952
Unfinished Sq Ft:

Dimensions

Width:
100' 0"
Depth:
84' 0"

Architectural Styles

Southern
Luxury

Exterior Wall Material

Brick

Roof Pitch

Other

Special Feature

Dining Room
Bonus Room
Game Room
Main Level Laundry
Color Photos
Storage
Exercise Room

Garage Type

Attached Garage
Side Entry

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Nook/Breakfast Area

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer
