4-Bedroom, 2980 Sq Ft Coastal House Plan - 133-1024 - Front Exterior

About Plan # 133-1024

About Plan # 133-1024

2980 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 69' 4" WIDTH 95' 4" DEPTH 2 GARAGE BAY

This beautiful Mediterranean style, one-story, single-family home is complimented with 4 Bedrooms and 3 Baths. A spacious master suite with two large walk-in closets and a gorgeous master bath influence this home. If entertaining is your style, then make use of the spacious kitchen for those cocktail parties while entertaining your guests in the formal living area. Take a nice retreat into the family room complete with built-ins and corner pocket sliding glass doors overlooking the outdoor living area. A 3-car garage completes the final touches of this captivating house. This Mediterranean plan is not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas. Concrete block exterior construction

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

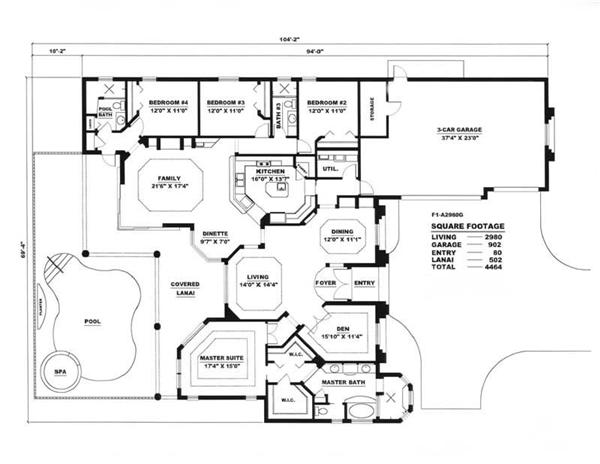

Home Plan: #133-1024 Floor Plan First Story Floor Plan First Story of Coastal Plan #133-1024
Home Plan: #133-1024 Floor Plan First Story Floor Plan First Story of Coastal Plan #133-1024
