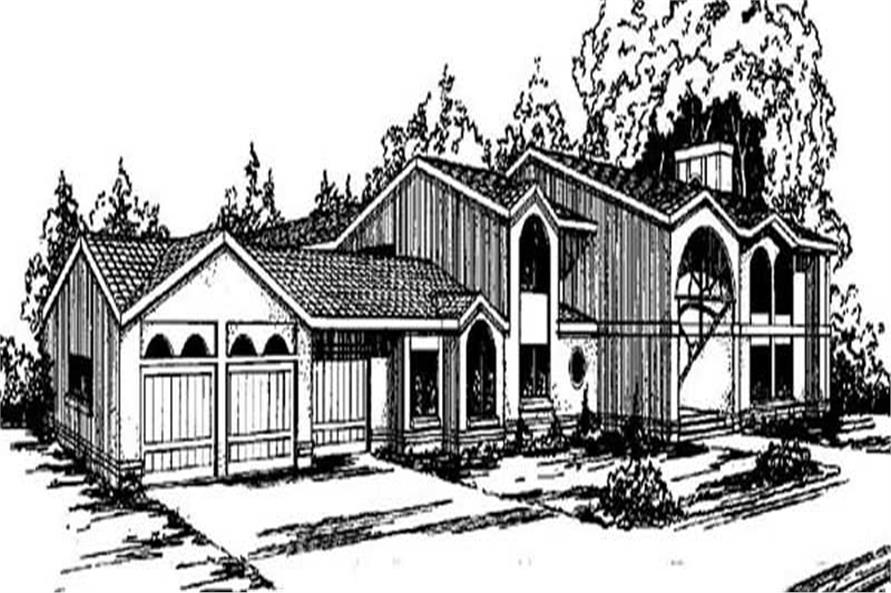

Front view of In-Law Suite home (ThePlanCollection: House Plan #145-1702)

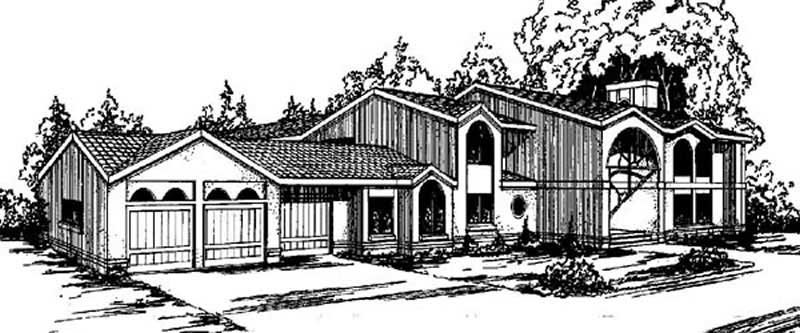

5-Bedroom, 5070 Sq Ft In-Law Suite House Plan - 145-1702 - Front Exterior

About Plan # 145-1702

About Plan # 145-1702

5070 SQUARE FEET 5 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 132' 6" WIDTH 76' 0" DEPTH 3 GARAGE BAY
This inviting home with an in-law suite with luxury design influences has 5070 square feet of living space. The two story floor plan includes 5 bedrooms.

Each plan set includes the following:

  • Floor plans
  • Foundations
  • Elevations
  • Framing
  • Electrical
  • Roofing
  • Detailed Construction Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

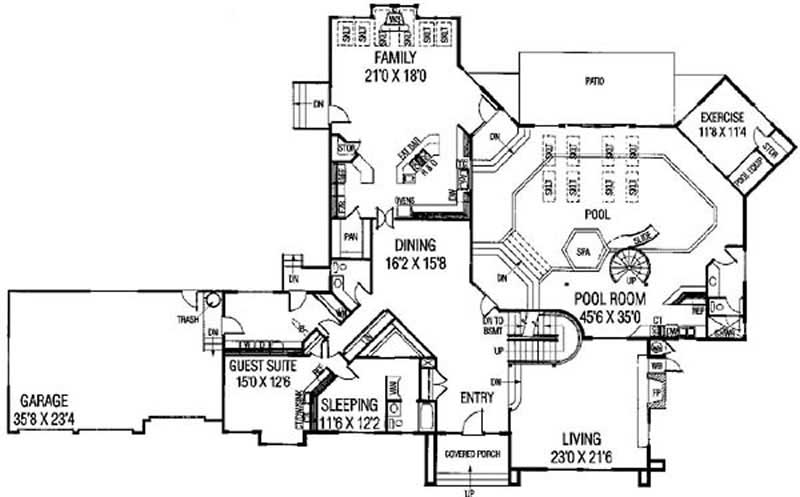

Home Plan: #145-1702 Floor Plan First Story - main Floor Plan First Story of In-Law Suite Plan #145-1702

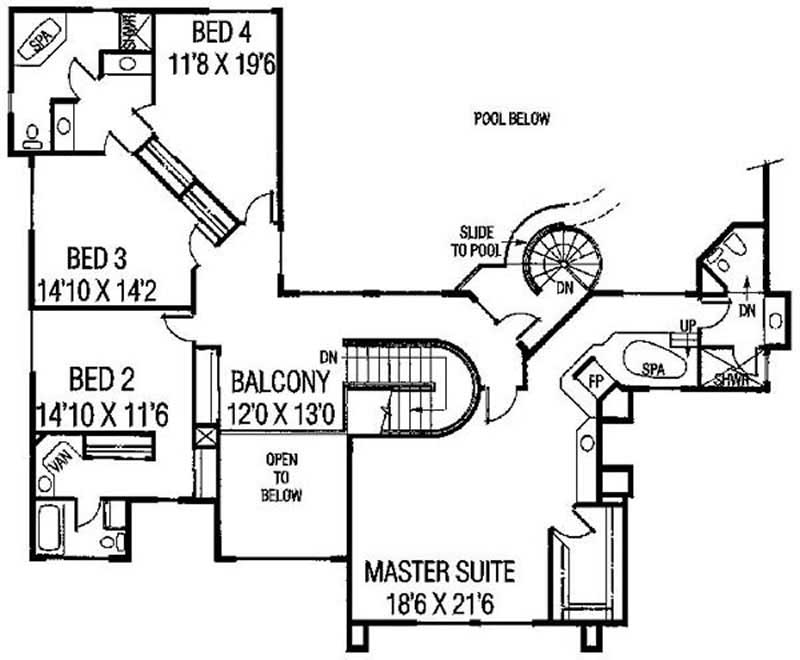

#145-1702 Floor Plan Second Story - upper level Floor Plan Second Story of In-Law Suite Plan #145-1702
Home Plan: #145-1702 Floor Plan First Story - main Floor Plan First Story of In-Law Suite Plan #145-1702
#145-1702 Floor Plan Second Story - upper level Floor Plan Second Story of In-Law Suite Plan #145-1702
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 145-1702
Floors:
2
Bedrooms:
5
Full Baths:
5

Square Footage

Heated Sq Feet:
5070
Main Floor:
2876
Upper Floor:
2194
Unfinished Sq Ft:
Garage :
838

Dimensions

Width:
132' 6"
Depth:
76' 0"
Ridge Height:
29'3' 0"

Architectural Styles

Luxury
Traditional
In-Law Suite

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Guest Room
Family Room
Game Room
Main Level Laundry
Split Bathroom
Storage
Balcony
Exercise Room

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Master Bathroom
Walk In Closet
Second Floor Master

Additional Notes from Designer

NOTE: Due to a family emergency, NO modifications are available with this designer at this time. If you would like to purchase a CAD or Right Reading Reverse, please contact us for availability and price as not all plans are available in CAD or RRR.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.

Package & Price Help
Select Plan Package
Select Foundation
  {{addOnOption.Cost | currency:"$"}}
{{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
  {{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
  {{addOnOption.Cost | currency:"$"}}

How much will this plan cost to build?

- OR -

Modify this plan

This plan can be customized
Contact us for free quote

Modify this plan

This plan can be customized
Contact us for free quote
