House Plan #172-1002
Plan Name: 172-1002   Bedrooms: 5   Width: 66' 10"
Square Feet: 1989 Sq Ft.   Bathrooms: Full Baths: 3
Half Baths: 1 		  Depth: 47' 4"
Floors: 1   Garage Bays: 2 Ridge Height: 23'
House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  Reproducible Master $775.00
  Minimum construction Package (5 Sets) $575.00
  Study Set (construction Bid Set) $525.00
FOUNDATION OPTIONS
  Basement $0.00
OTHER OPTIONS / ADD-ONS
  Mirrored Set $50.00
  Additional Set $25.00
Square Footage House Plan Description
Heated Sq Ft: 1989   Unfinished Sq Ft:
Main Floor: 1989   Garage: 0
Upper Floor:   Bonus Room: 0
Lower Floor: 0

The Henley offers a spacious feel with it's large great room, open foyer and stairwell. Three bedrooms and two baths on one level provide plenty of room while a laundry room located closely to the entrance from the garage provides a place to kick off the muddy boots before entering the rest of the house. You'll also enjoy the side entry garage.

Home Features
  Architectural Styles
European
French
Contemporary
Georgian

  Ceiling Height
8 Foot Ceiling
10 Foot Ceiling

  Exterior Wall Framing
2x6

  Exterior Wall Material
Stucco
Vinyl Siding
Brick

  Fireplaces
One Fireplace

  Garage Type
Attached Garage

  Roof Pitch
9/12

  Roofing Material
Other Composites

  Roofing Type
Hip

House Plan : 172-1002 Images

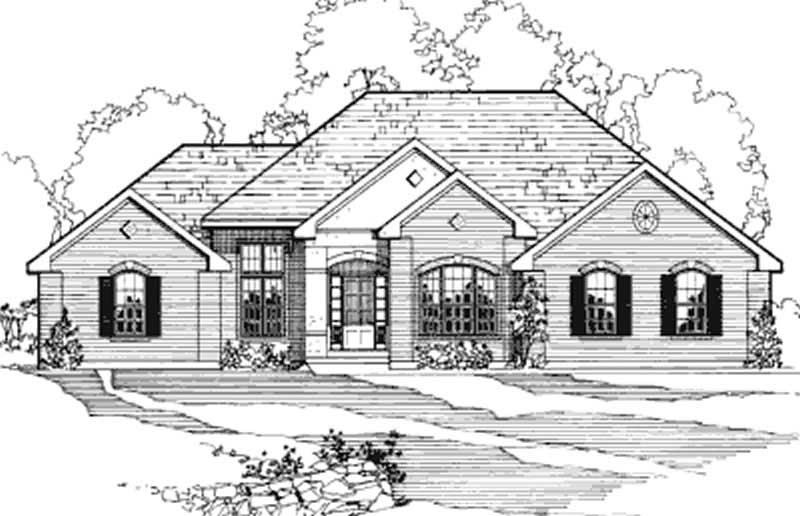

   House Plan #172-1002
Image not available.
  Home Plan: 172-1002 Main Level Floor Plan
Main Level Floor Plan
  Home Plan: 172-1002 Basement Floor Plan
Basement Floor Plan
