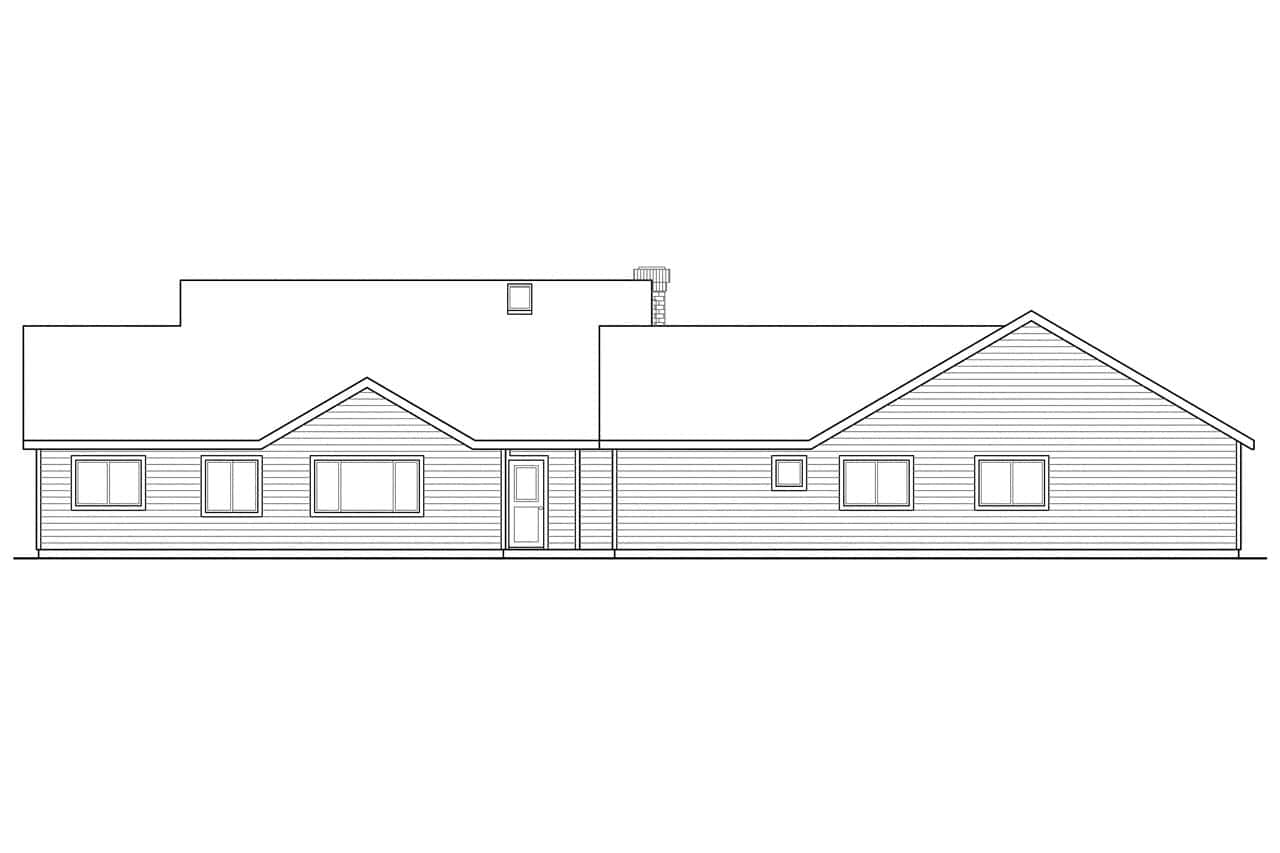

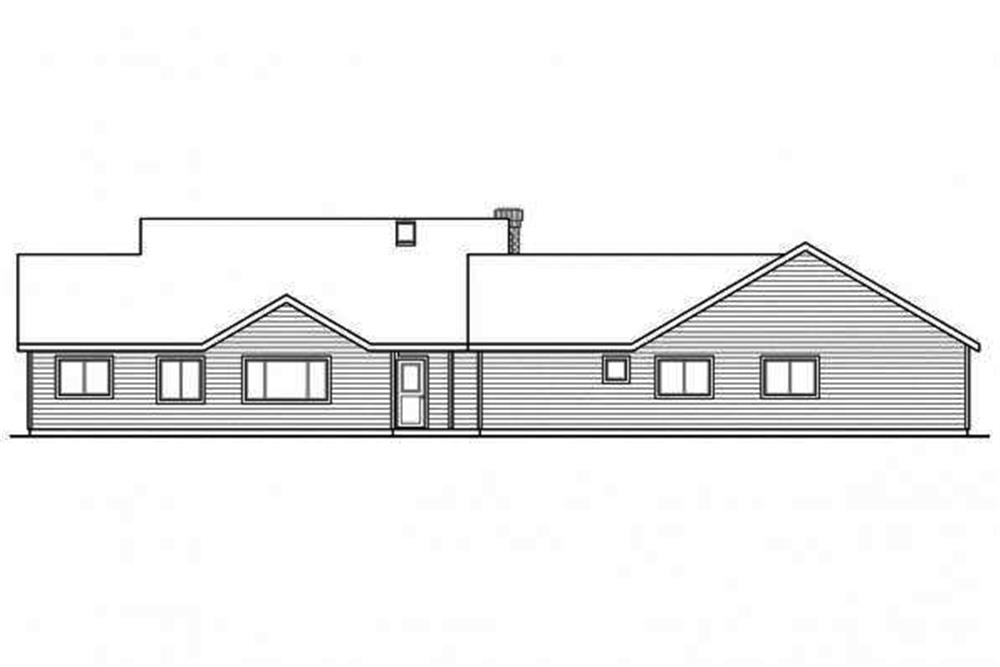

108-1692: Home Plan Rear Elevation

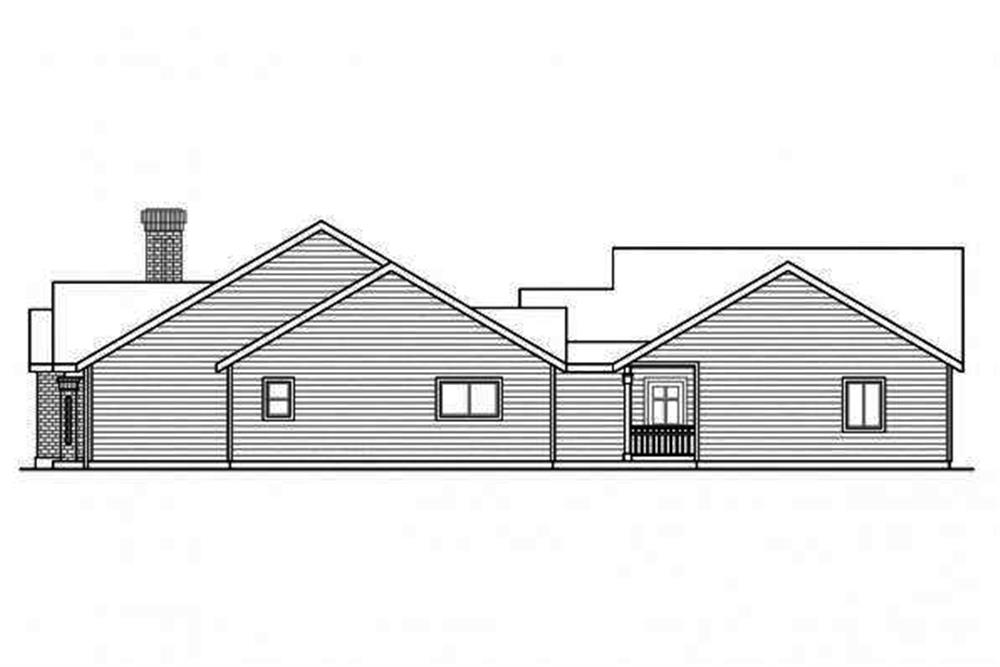

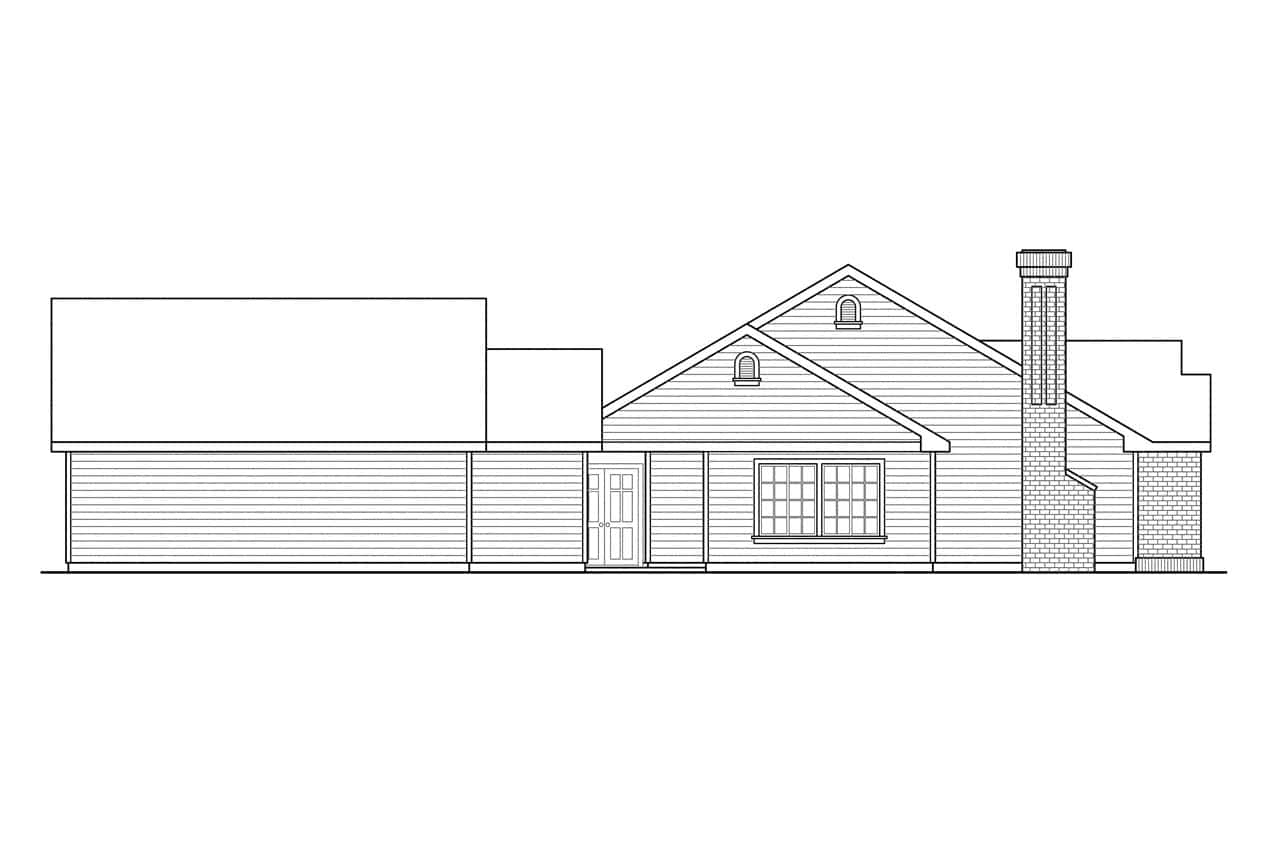

108-1692: Home Plan Left Elevation

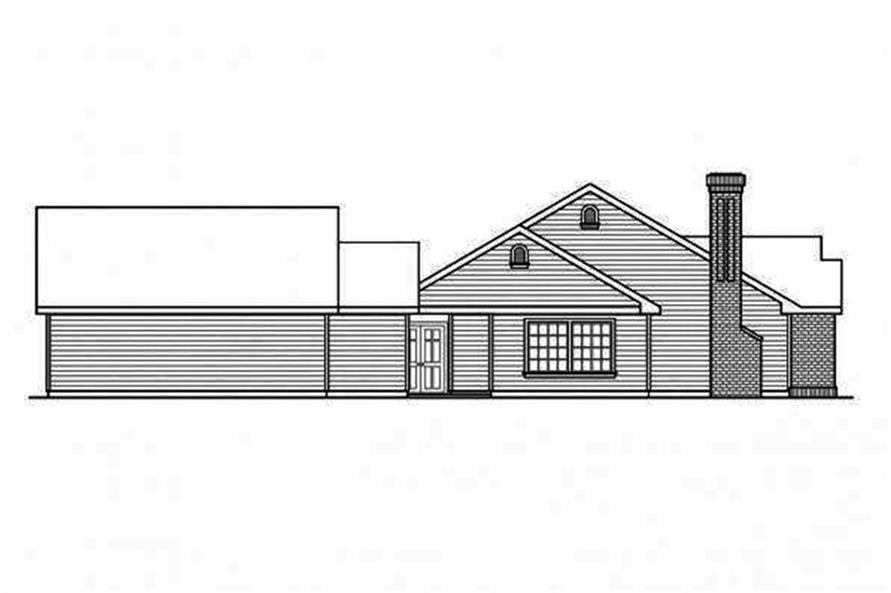

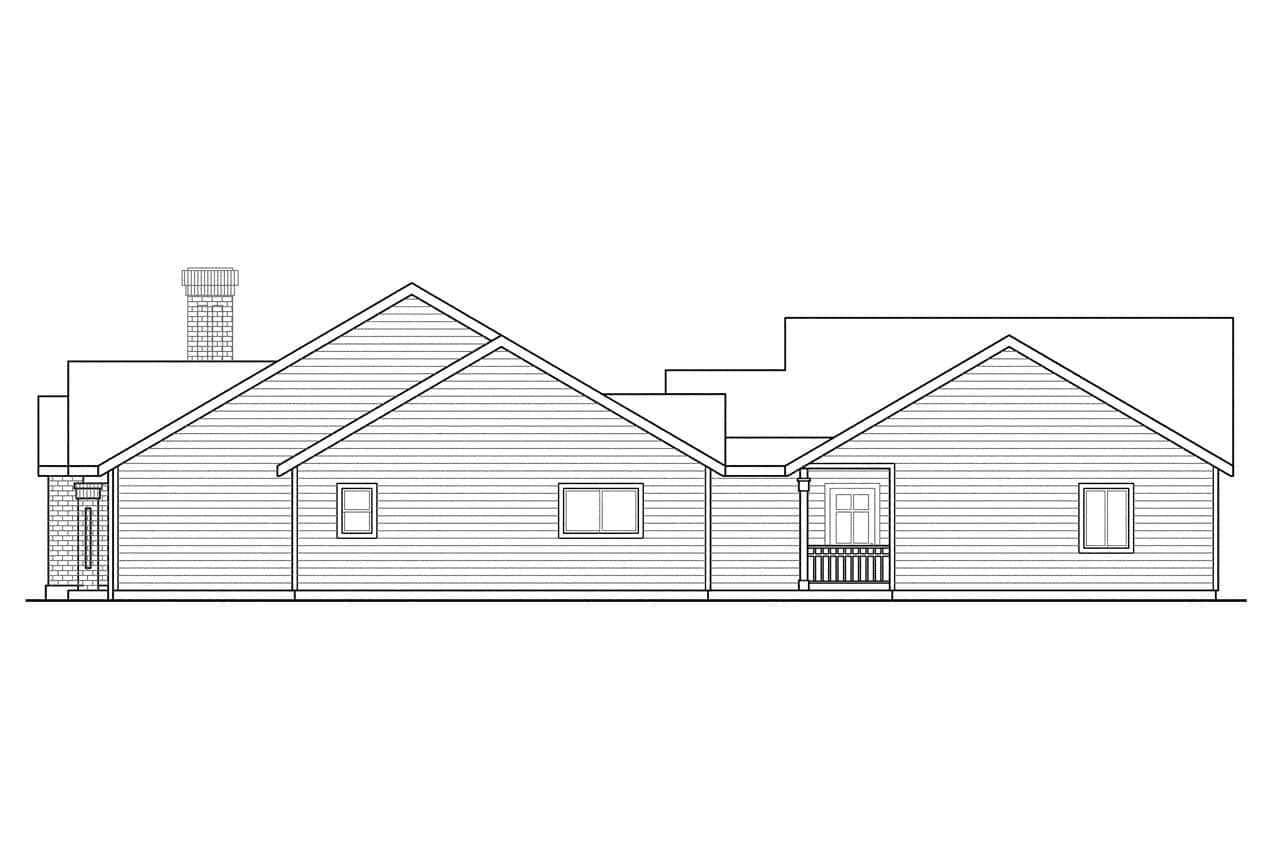

108-1692: Home Plan Right Elevation
5-Bedroom, 2473 Sq Ft Arts and Crafts Home Plan - 108-1692 - Main Exterior
108-1692: Home Plan Rear Elevation
108-1692: Home Plan Left Elevation

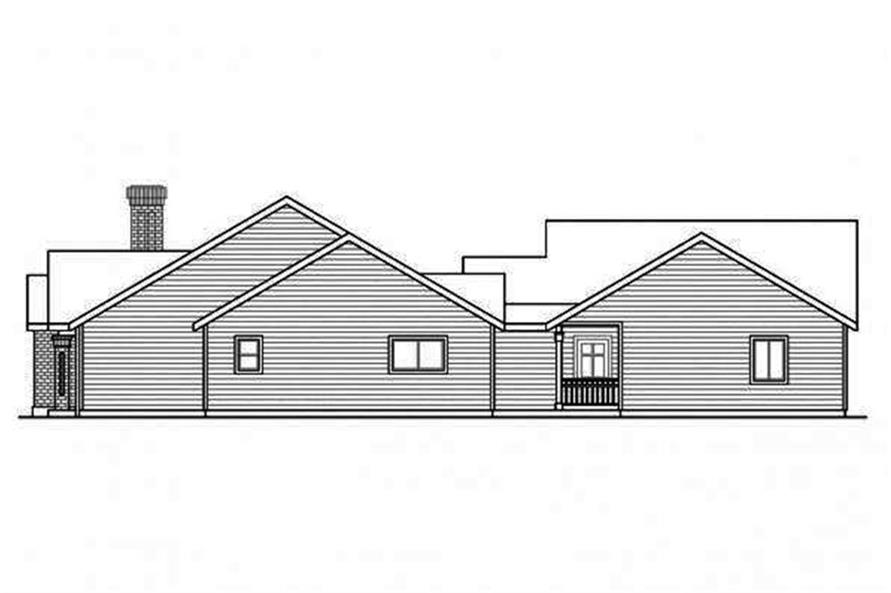

108-1692: Home Plan Right Elevation

About Plan # 108-1692

About Plan # 108-1692

2473 SQUARE FEET 5 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 92' 0" WIDTH 78' 0" DEPTH 3 GARAGE BAY

Great ranch house plan  with mother-in-law or guest wing.This attractive ranch style home with traditional influences (House Plan #108-1713) has 2473 square feet of living space. The 1 story floor plan includes 5 bedrooms. The floor plan is designed with a 3-bedroom main house (1799 living square feet) plus a 2-bedroom guest apartment (674 living square feet) or mother-in-law suite / cottage behind it.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

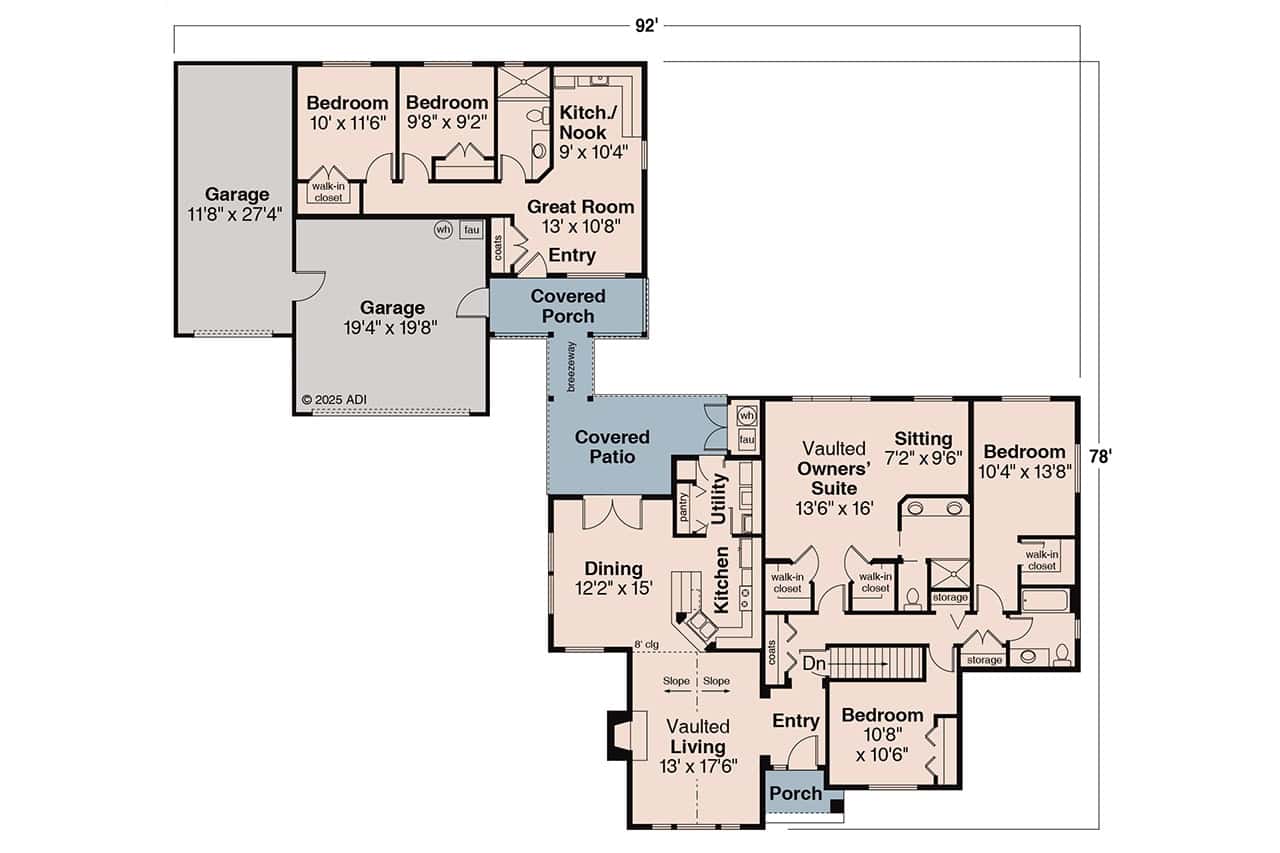

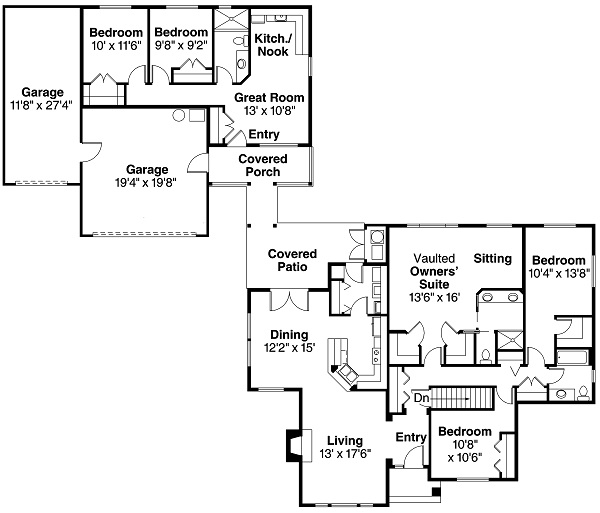

Home Plan: #108-1692 Floor Plan First Story - main floor Floor Plan First Story of Arts and Crafts Plan #108-1692
Home Plan: #108-1692 Floor Plan First Story - main floor Floor Plan First Story of Arts and Crafts Plan #108-1692
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1692
Floors:
1
Bedrooms:
5
Full Baths:
3
Garage :
3

Square Footage

Heated Sq Feet:
2473
Main Floor:
2473
Unfinished Sq Ft:
Garage :
734

Dimensions

Width:
92' 0"
Depth:
78' 0"
Ridge Height:
21' 4"

Architectural Styles

Contemporary
Arts and Crafts
Traditional

Exterior Wall Material

Vinyl Siding
Brick

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

7/12

Ceiling Height

8 Foot Ceiling

Special Feature

Mother in law apartment
Fireplace

Garage Type

Attached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Flat Site

Kitchen Features

Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.
