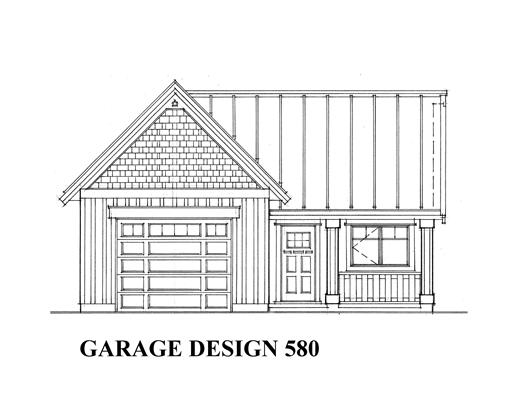

Front elevation of Garage home (ThePlanCollection: House Plan #160-1019)
580 Sq Ft Garage Plan - 160-1019 - Front Exterior

About Plan # 160-1019

About Plan # 160-1019

580 SQUARE FEET 0 BEDROOMS 0 FULL BATH 0 HALF BATH
1 FLOOR 30' 0" WIDTH 24' 0" DEPTH 1 GARAGE BAY

Rustic shingle wall exterior capped with sleek metal roofing ensures that this detached garage with workshop will blend into and compliment any building site location. Plans are designed with a concrete slab foundation plan.

Each plan set includes the following:

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan
  • Main floor plan
  • Second-floor plan (if applicable)
  • Structural floor/Roof information
  • Electrical layout
  • Minimum of two cross-sections Details
  • Exterior Elevations Generic detail sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #160-1019 Floor Plan First Story - first story Floor Plan First Story of Garage Plan #160-1019
Home Plan: #160-1019 Floor Plan First Story - first story Floor Plan First Story of Garage Plan #160-1019
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 160-1019
Floors:
1

Square Footage

Heated Sq Feet:
580
Unfinished Sq Ft:
Main Floor:
196
Garage :
384
Porch :
56

Dimensions

Width:
30' 0"
Depth:
24' 0"
Ridge Height:
19-6' 0"

Architectural Styles

Garage
Traditional
Rustic

Exterior Wall Material

Wood Siding
Shakes

Roofing Type

Gable

Roofing Material

Metal

Special Feature

Mother in law apartment
Workshop

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Porches and Exterior Features

Covered Front Porch

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
