House Plan #160-1023
Plan Name: 160-1023   Bedrooms: 0   Width: 30' 0"
Square Feet: 1058 Sq Ft.   Bathrooms: Full Baths: 0
Half Baths: 0
  Depth: 25' 0"
Floors: 2   Garage Bays: 2 Ridge Height: 24'

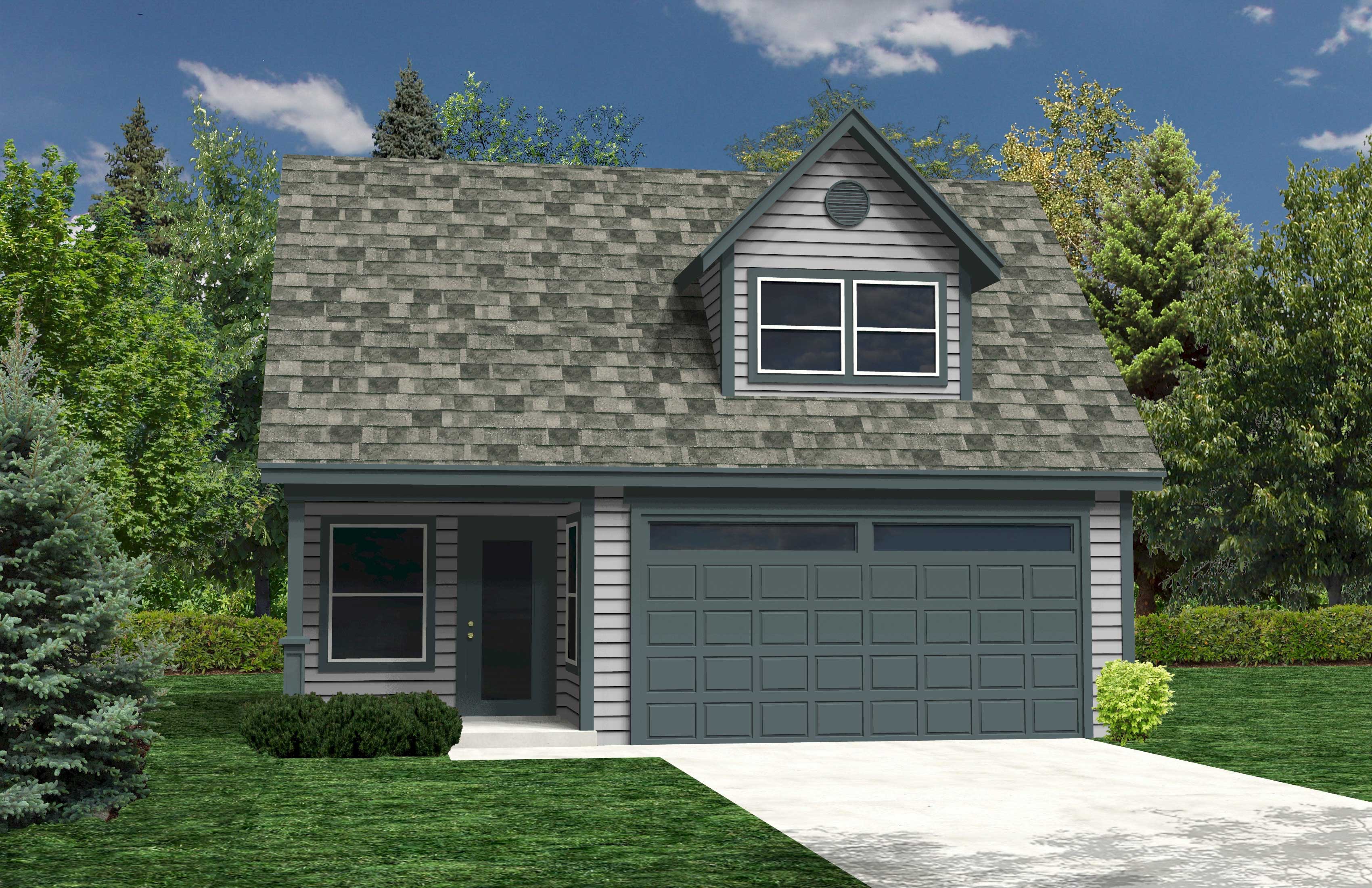

House Plan Main Image House Plan Pricing
Image not available.
  Minimum Construction Package (5 Sets) $325.00
  Standard Construction Package (8 Sets) $375.00
  PDF File Set $475.00
  Reproducible Master $475.00
  Study Set (Construction Bid Set) $250.00
  Crawlspace $0.00
  Mirror Reverse $100.00
  Materials List $70.00
  Additional Set(s), Each $55.00
Square Footage House Plan Description
Heated Sq Ft: 1058
Main Floor: 700
Upper Floor: 358
Unfinished Sq ft

The spacious open workshop and volume ceiling accommodates everyone from the hobby enthusiast up to the energetic rock wall climber. The oversized garage depth easily handles larger vehicles or incorporate a full width workbench to create additional storage space. The second level unfinished storage loft is presently accessed by a ladder. Add a staircase to transform this bonus area into a quaint home office or exercise room retreat enhanced with a large view dormer and generous window openings.

Home Features
  Architectural Styles
Garage w/Apartments
Small House Plans
  Building Lot Type
Flat Site
  Ceiling Height
9 Foot Ceiling
8 Foot Ceiling
  Exterior Wall Framing
  Exterior Wall Material
Wood Siding
  Garage Type
Front Entry
Attached Garage
  Porches and Exterior Features
Covered Front Porch
  Roof Pitch
  Roofing Material
Asphalt Shingles
  Roofing Type
  Special Feature
Vaulted Ceilings
House Plan : 160-1023 Images
Reverse Plan Images
   House Plan #160-1023
Image not available.
  Home Plan: 160-1023 Floor Plan First Story
Floor Plan First Story
  Home Plan: 160-1023 Floor Plan Second Story
Floor Plan Second Story
