House Plan #160-1022
Plan Name: 160-1022   Bedrooms: 3   Width: 49' 6"
Square Feet: 1923 Sq Ft.   Bathrooms: Full Baths: 2
Half Baths: 0
  Depth: 43' 6"
Floors: 2   Garage Bays: 0 Ridge Height: 31-6'
House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  Minimum Construction Package (5 Sets) $575.00
  Standard Construction Package (8 Sets) $625.00
  PDF File Set $775.00
  Reproducible Master $775.00
  CAD File $975.00
  Study Set (Construction Bid Set) $525.00
FOUNDATION OPTIONS
  Crawlspace $0.00
OTHER OPTIONS / ADD-ONS
  Mirror Reverse $100.00
  Materials List $70.00
  Additional Set(s), Each $55.00
Square Footage House Plan Description
Heated Sq Ft: 1923
Main Floor: 1169
Upper Floor: 754
Unfinished Sq ft

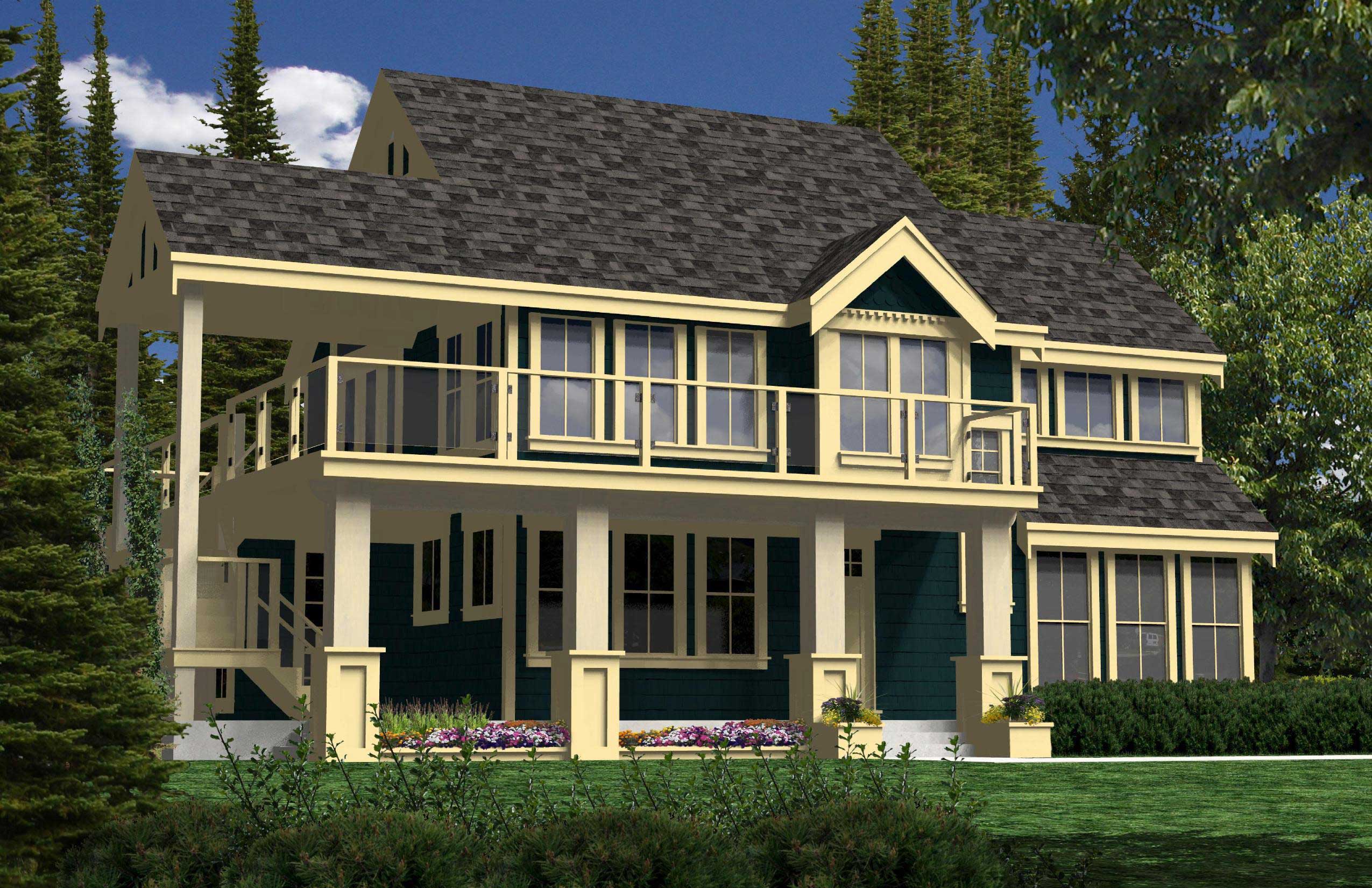

Shingle siding highlighted with fishscales accents and traditional double hung windows borrow from pleasing Craftsman styling while the heavy timber porch and deck framing topped with a clean lined glass railing bring a modern nautical touch to the exterior of this unique home. The main level easily transforms itself into a mother-in-law or private guest suite complete with a separate access. Covered front porches, screened rear porch or the open sundeck on both levels ensures outdoor activities endure regardless of the prevailing weather. The second level is totally dedicated to fulfilling the needs of the vaulted Master Suite part of which is a multi-purpose reading, hobby or exercise room and a massive sundeck. Access to a floating Library overlooking the Living / Dining Room is via a connecting bridge. Glass railings, exposed truss timber framing and floor beams make this a totally special and reflective space.

Home Features
  Architectural Styles
Country
Vacation Homes
Traditional

  Building Lot Type
Flat Site

  Exterior Wall Framing
2x6

  Exterior Wall Material
Shakes

  Kitchen Features
Eat-In Kitchen
Nook/Breakfast Area
Walk-in Pantry

  Master Suite Features
Second Floor Master

  Porches and Exterior Features
Covered Front Porch
Covered Rear Porch
Sundeck
Screened Porch/Sunroom

  Roof Pitch
5/12

  Roofing Material
Asphalt Shingles

  Roofing Type
Gable

  Special Feature
Vaulted Ceilings
Balcony
Second Level Laundry
Fireplace
Guest Room
Library
Loft

House Plan : 160-1022 Images
Reverse Plan Images
   House Plan #160-1022
Image not available.
  Home Plan: 160-1022 Floor Plan First Story
Floor Plan First Story
  Home Plan: 160-1022 Floor Plan Second Story
Floor Plan Second Story
