House Plan #116-1002
Plan Name: 116-1002   Bedrooms: 1   Width: 40' 0"
Square Feet: 1225 Sq Ft.   Bathrooms: Full Baths: 1
Half Baths: 0
  Depth: 40' 0"
Floors: 1   Garage Bays: 0 Ridge Height: 16'
House Plan Main Image House Plan Pricing
Image not available.
  CAD File $1,340.00
  Minimum Construction Package (5 Sets) $1,340.00
  PDF File Set $1,340.00
  Crawlspace $450.00
  Slab $0.00
  Right Reading Reverse $200.00
Square Footage House Plan Description
Heated Sq Ft: 1225
Main Floor: 1225
Unfinished Sq ft

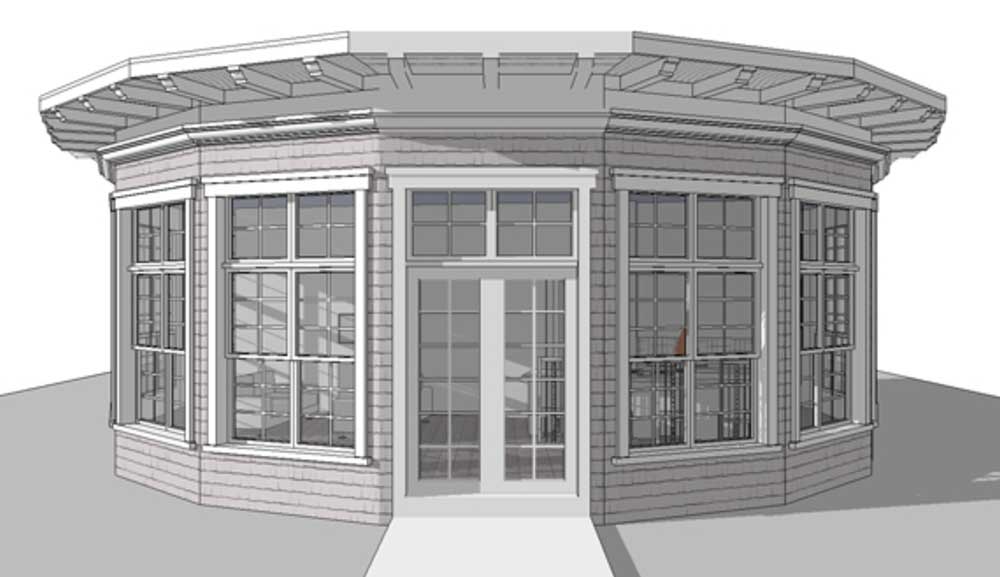

The Monocle is a Coastal-Modern design, distinguished by it's 16-sided structure, traditional detailing, and ultra-modern interior layout. This design takes advantage of ALL views on your property. The bedroom is open and spacious and the bath can be closed off from the rest of the house with 2 pocket doors.

Home Features
  Architectural Styles
Small House Plans
  Building Lot Type
Flat Site
  Exterior Wall Material
One Fireplace
  Kitchen Features
Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
  Master Suite Features
Main Floor Master
Master Bathroom
  Special Feature
Vaulted Ceilings
Mother in law apartment
Dining Room
Family Room
Main Level Laundry
House Plan : 116-1002 Images
Reverse Plan Images
   House Plan #116-1002
Image not available.
  Home Plan: 116-1002 Floor Plan First Story
Floor Plan First Story
