About Plan # 116-1002

About Plan # 116-1002

1225 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
1 FLOOR 40' 0" WIDTH 40' 0" DEPTH 0 GARAGE BAY

The Monocle is a Coastal-Modern design, distinguished by it's 16-sided structure, traditional detailing, and ultra-modern interior layout. This design takes advantage of ALL views on your property. The bedroom is open and spacious and the bath can be closed off from the rest of the house with 2 pocket doors.

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

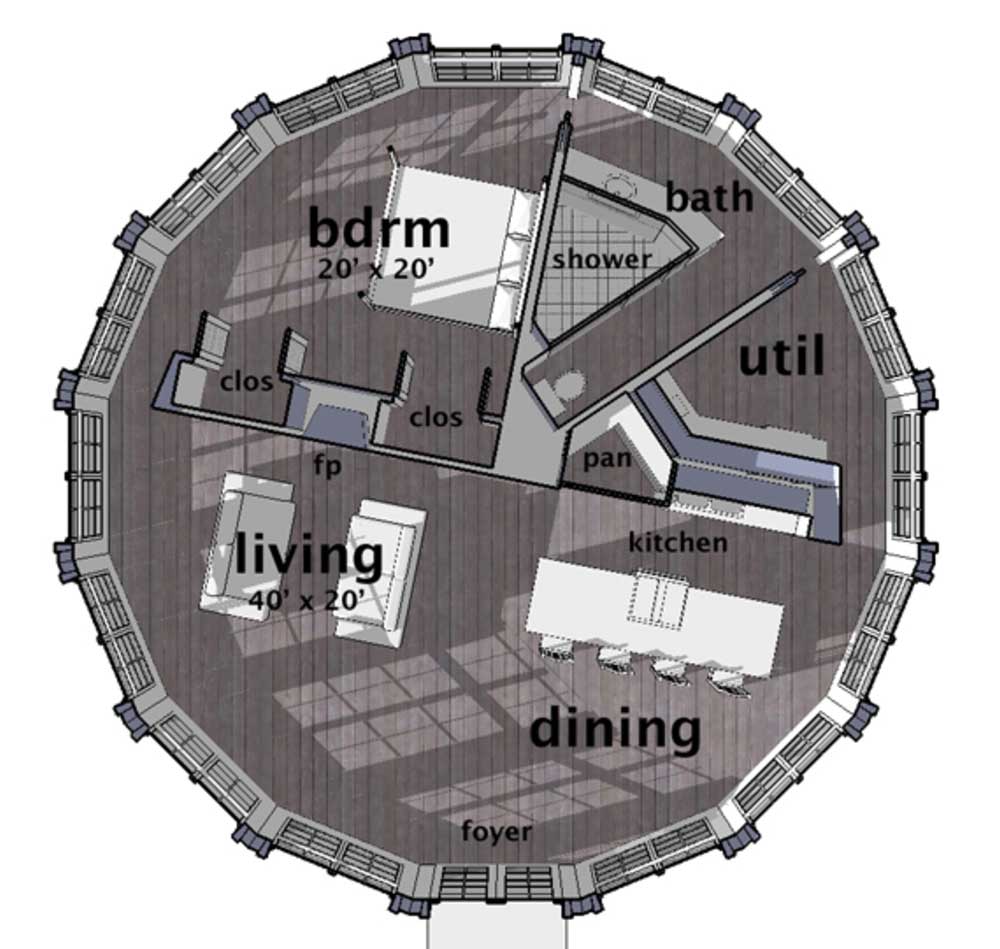

Home Plan: #116-1002 Floor Plan First Story - first story Floor Plan First Story of Coastal Plan #116-1002
