House Plan #107-1062
Plan Name: 107-1062   Bedrooms: 1   Width: 40' 0"
Square Feet: 5417 Sq Ft.   Bathrooms: Full Baths: 0
Half Baths: 0
  Depth: 61' 7"
Floors: 2   Garage Bays: 2 Ridge Height: 26-6'
House Plan Main Image House Plan Pricing
Image not available.
  Minimum Construction Package (3 Sets) $1,200.00
  Minimum Construction Package (5 Sets) $1,300.00
  Standard Construction Package (8 Sets) $1,540.00
  PDF File Set $1,600.00
  Reproducible Master $1,600.00
  CAD File $1,950.00
  Monolithic Slab $0.00
  Right Reading Reverse $250.00
Square Footage House Plan Description
Heated Sq Ft: 5417
Main Floor: 1368
Upper Floor: 1449
Unfinished Sq ft
Garage: 452

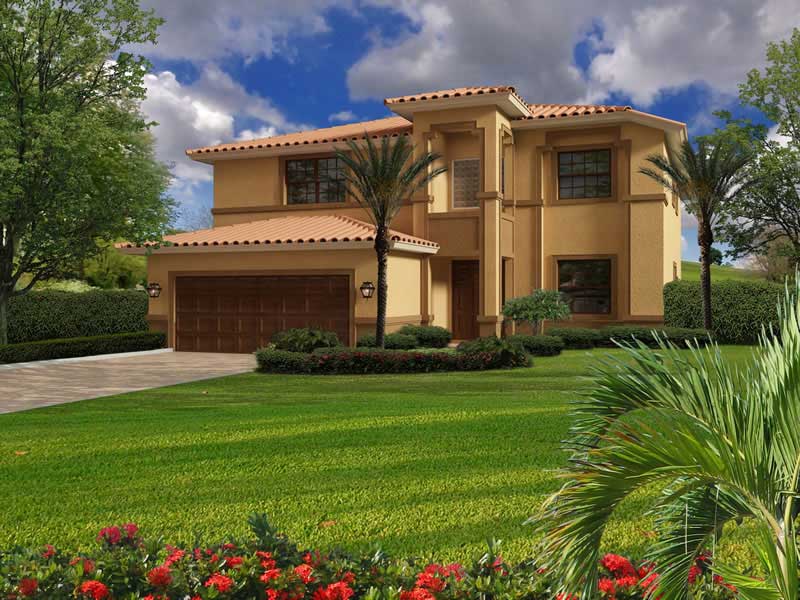

This two story waterfront Mediterranean home has five Bedrooms, four Bathrooms and a two car Garage. Two Bedrooms have Jack and Jill Bathroom perfect for small kids. Laundry room conveniently located on second floor. Study room on first floor can also be used as a fifth Bedroom.

Home Features
  Architectural Styles
  Ceiling Height
9 Foot Ceiling
  Exterior Wall Framing
  Exterior Wall Material
  Garage Type
Front Entry
Attached Garage
  Roof Pitch
  Roofing Material
Other Composites
  Roofing Type
House Plan : 107-1062 Images
Reverse Plan Images
   House Plan #107-1062
Image not available.
  Home Plan: 107-1062 Main Level
First Floor
  Home Plan: 107-1062 Upper Level
Second Floor
