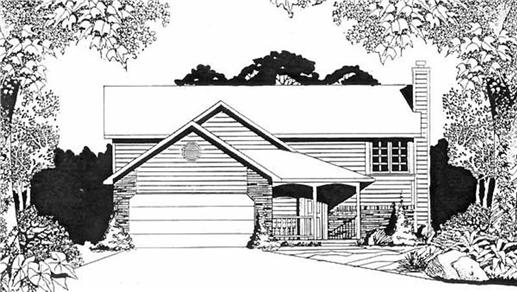

2-Bedroom, 1000 Sq Ft Multi-Level House Plan - 103-1091 - Front Exterior

About Plan # 103-1091

About Plan # 103-1091

1000 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 40' 0" WIDTH 48' 0" DEPTH 2 GARAGE BAY
*bi-level *vaulted ceilings in living, dining and kitchen *plant shelves *Jacuzzi tub *walk-in closet *bay window *covered porch *optional finish basement with rec room, 2 beds, 1 full bath.

Each plan set includes the following:

  • Front, Side & Rear Elevations
  • Floor Plan
  • Foundation Plan
  • Roof Plan (Birdseye view)
  • Electrical Layout (location of outlets, switches - it does not have wiring schematics)
  • Cabinet Details
  • Wall Section
  • Stair Details
  • Building Cross Section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #103-1091 Floor Plan First Story - main Floor Plan First Story of Multi-Level Plan #103-1091
Home Plan: #103-1091 Floor Plan First Story - main Floor Plan First Story of Multi-Level Plan #103-1091
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 103-1091
Floors:
1
Bedrooms:
2
Full Baths:
2

Square Footage

Heated Sq Feet:
1000
Main Floor:
1000
Unfinished Sq Ft:
Lower Floor:
825
Garage :
440

Dimensions

Width:
40' 0"
Depth:
48' 0"
Ridge Height:
20' 0"

Architectural Styles

Multi-Level
Traditional
Small House Plans

Exterior Wall Material

Aluminum Siding
Vinyl Siding
Brick
Wood Siding

Roofing Type

Gable

Roof Pitch

6/12
8/12

Ceiling Height

8 Foot Ceiling

Garage Type

Attached Garage

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

PLEASE NOTE: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
