House Plan #133-1035
Plan Name: 133-1035   Bedrooms: 4   Width: 134' 0"
Square Feet: 5000 Sq Ft.   Bathrooms: Full Baths: 5
Half Baths: 0 		  Depth: 149' 8"
Floors: 1   Garage Bays: 4 Ridge Height: 0'
House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  CAD File $2,500.00
  Reproducible Master $2,500.00
  Standard construction Package (8 Sets) $2,375.00
  Minimum construction Package (5 Sets) $2,250.00
FOUNDATION OPTIONS
  Slab on grade $0.00
OTHER OPTIONS / ADD-ONS
  2x6 exterior framing $350.00
  2x8 exterior framing $350.00
  Right reading reverse $350.00
Square Footage House Plan Description
Heated Sq Ft: 5000   Unfinished Sq Ft:
Main Floor: 4422   Garage: 0
Upper Floor: 578   Bonus Room: 0
Lower Floor: 0

This remarkable Mediterranean/Spanish house plan is truly amazing. These designs include a 4 car garage, breezeway and portico. This plan has a Beautiful layout with all the amenities including a Rec room, plenty of storage and a privacy garden. The first floor is CMU block and the 2nd floor 2x6 framing.

Home Features
  Architectural Styles
Mediterranean
Luxury
Florida Style
In-Law Suite
Wheelchair Accessible

  Building Lot Type
Flat Site
Corner Lot

  Ceiling Height
11 foot ceilings
10 Foot Ceiling

  Exterior Wall Framing
2x6
Concrete

  Exterior Wall Material
Stucco

  Fireplaces
Two Fireplaces

  Garage Type
Detached Garage
Courtyard Entry
Front Loading

  Kitchen Features
Kitchen Island
Butler's Pantry
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar

  Master Suite Features
Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area

  Porches and Exterior Features
Screened in Lanai
Covered Lanai
Breezeway
Courtyard
Covered Front Porch
Covered Rear Porch
Friend's Entry

  Roof Pitch
6/12

  Roofing Material
Tiles

  Roofing Type
Hip

  Special Feature
Workshop
Split Bathroom
Storage
Vaulted Ceilings
Dining Room
Home Office
Family Room
Main Level Laundry
Library
Loft

House Plan : 133-1035 Images
   House Plan #133-1035
Image not available.

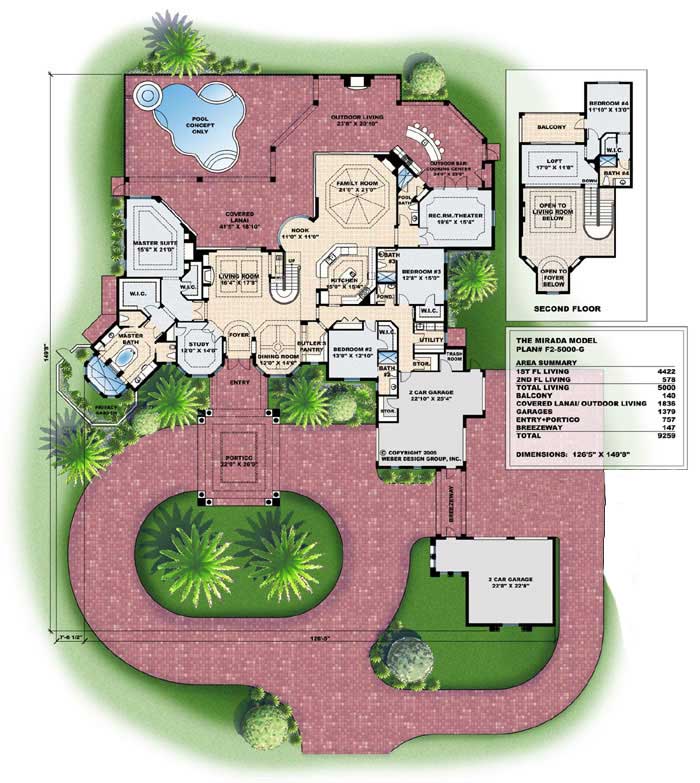

  Home Plan: 133-1035 Floor Plans
Floor Plans for these Mediterranean house plans.
