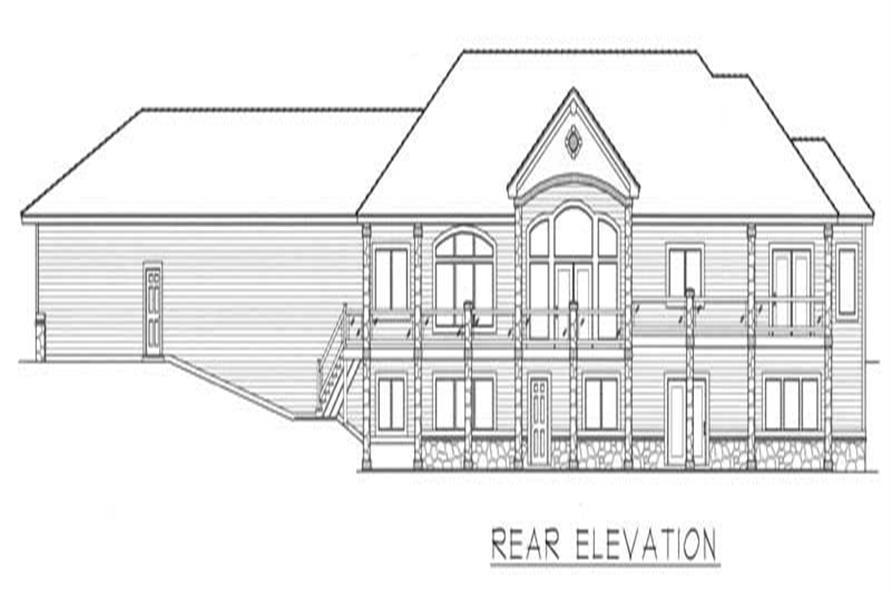

House Plan RDI-2907R1-DB Rear Elevation
4-Bedroom, 5022 Sq Ft Contemporary House Plan - 162-1041 - Front Exterior
House Plan RDI-2907R1-DB Rear Elevation

About Plan # 162-1041

About Plan # 162-1041

5022 SQUARE FEET 4 BEDROOMS 5 FULL BATH 1 HALF BATH
1 FLOOR 129' 5" WIDTH 91' 2" DEPTH 3 GARAGE BAY

House Plan RDI-2907R1-DB is a lavish home with space to meet all of your needs. This home features plenty of storage space from the large garage, to the large pantry and utility room. The basement also features plenty of unfinished space. The beauty of this home, however, is not in the size of the space. This home houses elegant features including a gorgeous master suite. Guests will feel right at home with large, comfortable main rooms, and a nice guest suite. The plan is particularly family friendly, with a large kitchen, plenty of eating space, and room for expansion.

Each plan set includes the following:

  • Exterior Elevations
  • Floor Plans
  • Foundation Plan
  • Roof Framing Plan
  • Building Sections
  • Wall Sections
  • Stair Detail
  • Cabinet Elevations
  • Notes
  • Electrical Layout
  • Door & Window Sizes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

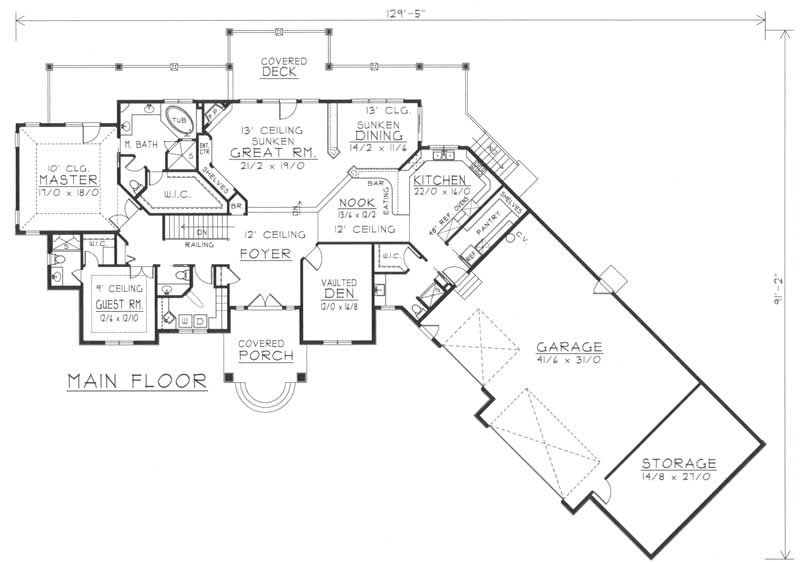

Home Plan: #162-1041 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #162-1041

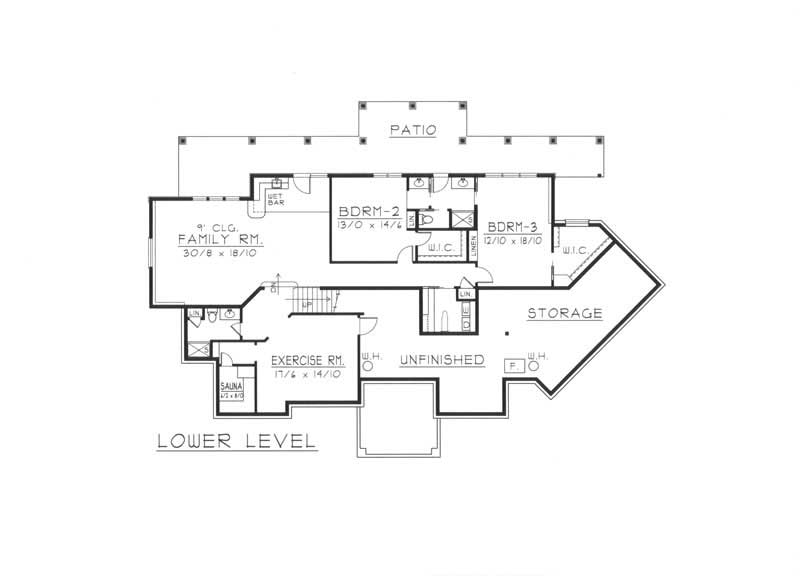

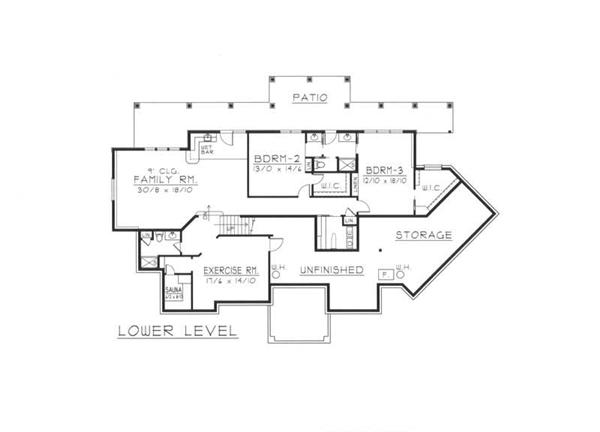

#162-1041 Floor Plan Second Story - basement Floor Plan Second Story of Contemporary Plan #162-1041
Home Plan: #162-1041 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #162-1041
#162-1041 Floor Plan Second Story - basement Floor Plan Second Story of Contemporary Plan #162-1041
