About Plan # 116-1051

About Plan # 116-1051

1474 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 34' 0" WIDTH 108' 0" DEPTH 2 GARAGE BAY

Kathleen's Cottage. This home combines the charm of early 1900s architecture with the convenience of today's styling. The multi-level interior provides charm and privacy for the secondary bedrooms. The living and dining are well defined, but open for casual entertaining. The kitchen and rear patio look onto the private pool area, with the garage beyond connected by a covered walk.

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

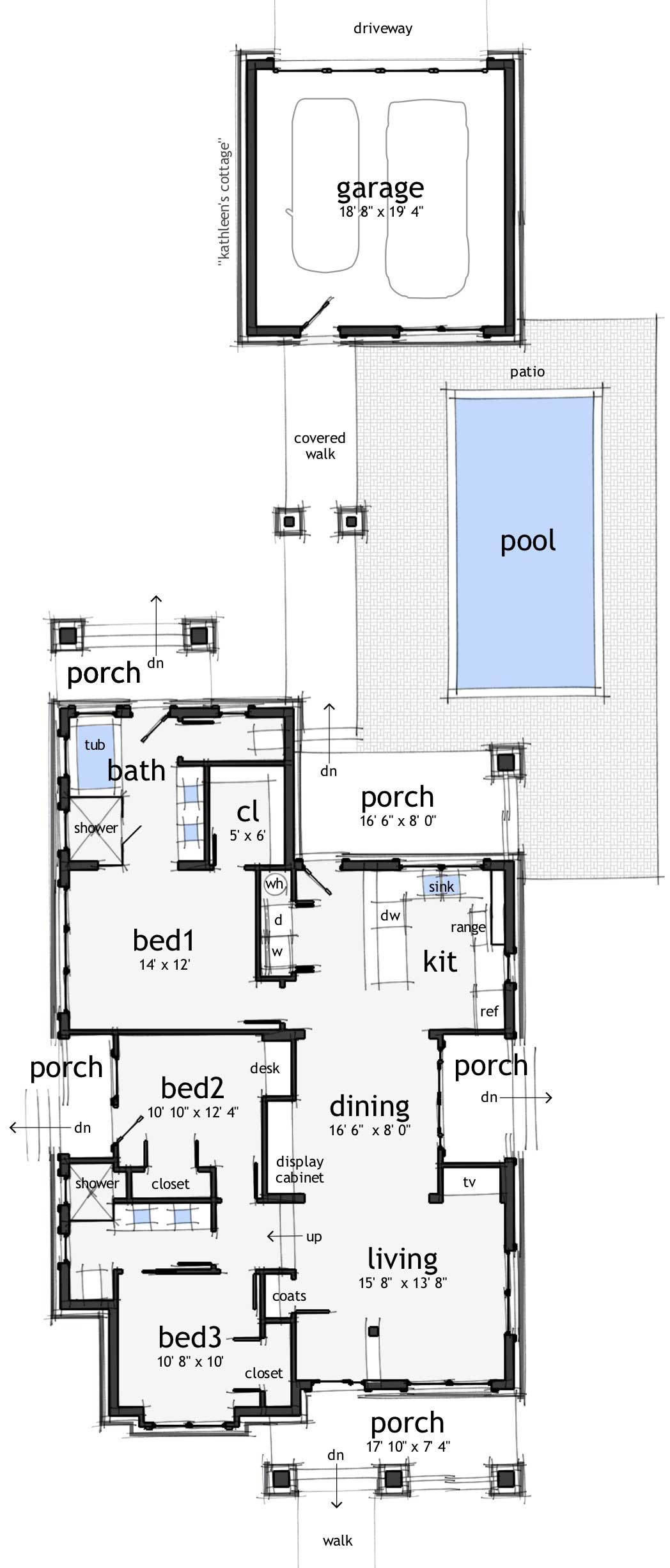

Home Plan: #116-1051 Floor Plan First Story - first story Floor Plan First Story of Bungalow Plan #116-1051
Home Plan: #116-1051 Floor Plan First Story - first story Floor Plan First Story of Bungalow Plan #116-1051
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1051
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1474
Main Floor:
1474
Unfinished Sq Ft:
Garage :
413

Dimensions

Width:
34' 0"
Depth:
108' 0"
Ridge Height:
17' 0"

Architectural Styles

Bungalow
Small House Plans

Exterior Wall Material

Stucco

Roofing Material

Asphalt Shingles

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.
