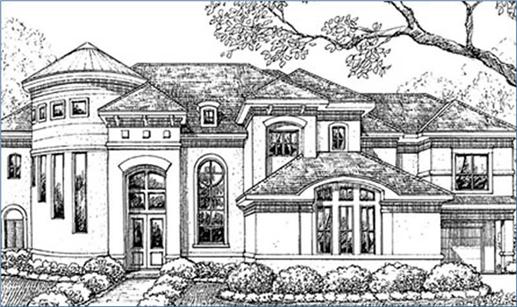

Luxury homeplans front rendering.
FRONT ELEVATION
5-Bedroom, 5403 Sq Ft Luxury Home Plan - 134-1317 - Main Exterior
FRONT ELEVATION

About Plan # 134-1317

About Plan # 134-1317

5403 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 81' 0" WIDTH 96' 0" DEPTH 3 GARAGE BAY
Luxury houseplans GMLE-403 have a beautiful Mediterranean and Spanish design. The floor plans are remarkably functional, letting you as the house owner enjoy unique designs without compensating household necessaties.

Each plan set includes the following:

  • 1/4 scale elevations
  • Fully dimensioned floor plans
  • Foundation footprint
  • Roof plan and section details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

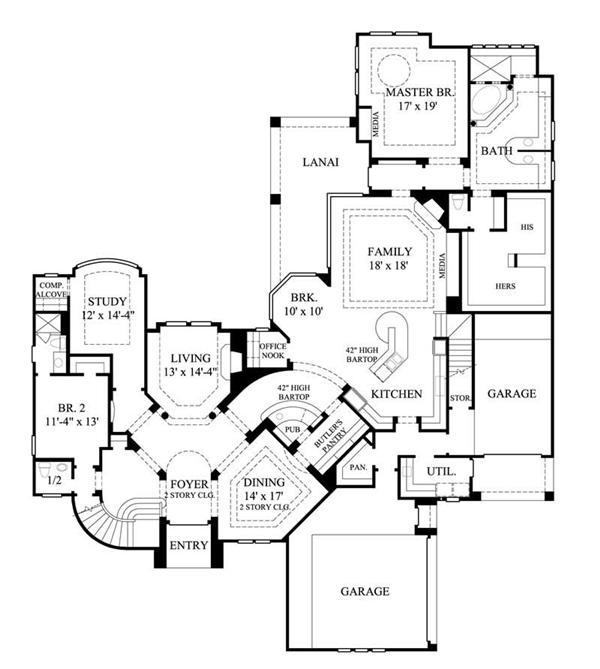

Home Plan: #134-1317 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #134-1317

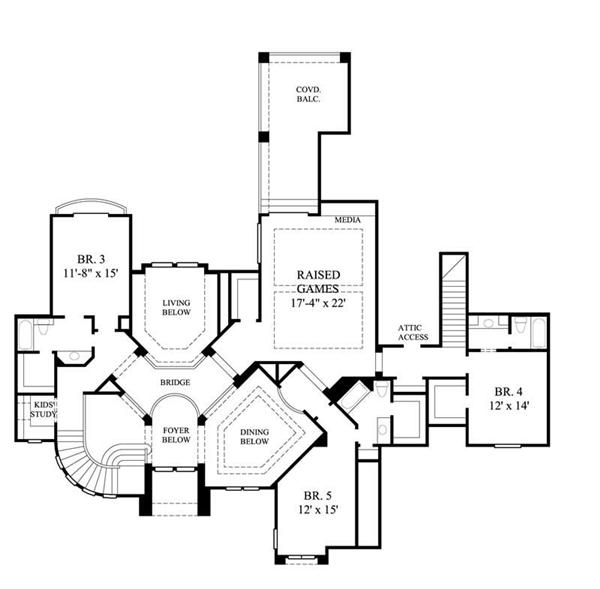

#134-1317 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #134-1317
