About Plan # 141-1141

About Plan # 141-1141

2000 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 66' 0" WIDTH 60' 0" DEPTH 2 GARAGE BAY

The Stone Brook offers a very functional split floorplan layout with a variety of innovative features that serve to make this house a great value. Expansive master bedroom with vaulted ceiling and plenty of closet space. Large master bath with separate shower and jet tub. Space for that office that you've always needed. 3 large bedrooms / 2 baths. Laundry room. Large great room with built-in cabinets and gas log fireplace. Keeping room and oversized dining room for those wonderful family get togethers. Come home to The Stone Brook.

Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

  • Cover page with rendering
  • foundation plan with typical details
  • floor plans with ceiling framing notes
  • four exterior views of exterior
  • roof plan, and rafter layout plan
  • full cross section through house, and typical wall sections
  • stair section (if there are stairs)
  • Bonus room/garage section if there is a bonus room/garage
  • Interior cabinet drawings
  • Misc. structural details
  • Electrical plan with lighting, outlets, switches, etc..

Not Included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

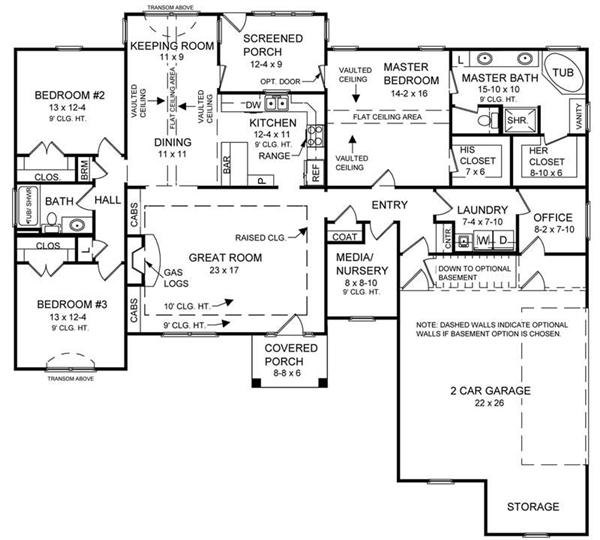

Home Plan: #141-1141 Floor Plan First Story Floor Plan First Story of Ranch Plan #141-1141
